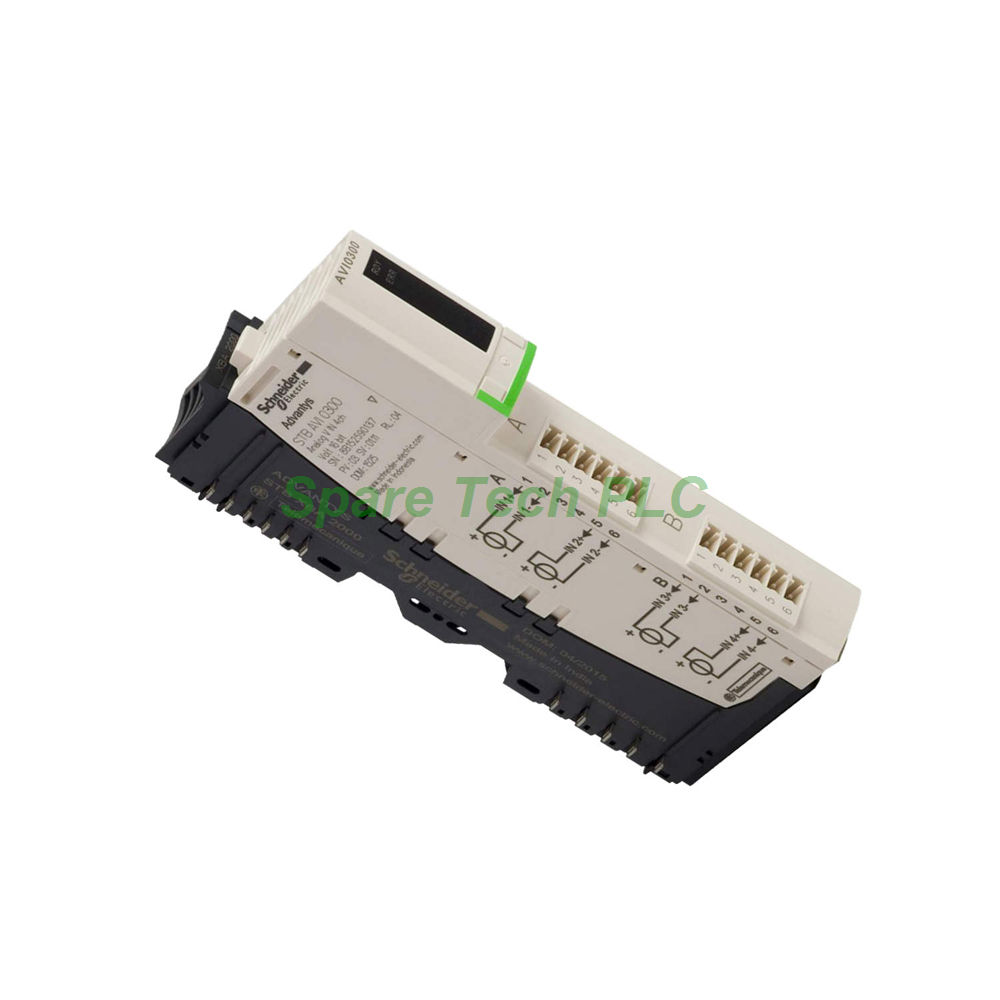

This section offers a complete overview of the STBDDI3610K standard digital input kit. It belongs to the Modicon STB distributed I/O solution family and serves as a versatile package for collecting digital signals from field devices. Specifically, this kit includes the STBDDI3610 module, the STBXBA1000 base, and both the STBXTS1100 screw-type and STBXTS2100 spring clamp connectors. This dual-connector approach offers installation flexibility to suit different wiring preferences.
First, let us examine the core input characteristics of the STBDDI3610K. The kit provides six digital input channels with a nominal voltage of 24V DC. The input voltage limits are clearly defined: a state 1 signal ranges from 15V to 30V, while a state 0 signal falls between -3V and 5V. Furthermore, the typical input current is 4.5mA, with guaranteed thresholds of >= 2.5mA for state 1 and <= 0.5mA for state 0. The absolute maximum voltage tolerance reaches 56V for 1.3ms, providing excellent protection against voltage spikes.
The response time of the Schneider STBDDI3610K is notably fast at 1.21ms for off-to-on transitions and 1.74ms for on-to-off transitions. Consequently, this module suits applications that require responsive signal acquisition. Additionally, each input channel features 1ms input filtering to reject noise and prevent false triggering. A key advantage of this kit is its support for both positive and negative input logic, which enhances compatibility with a wider range of sensors and field devices.
The STBDDI3610K includes comprehensive protection features to ensure system reliability. For instance, it offers resistor-limited input protection and reverse polarity protection to prevent damage from incorrect wiring. The insulation between channels and the logic bus carries a rating of 1500V for one minute, providing excellent electrical isolation. Moreover, the module supports both cold swapping and hot swapping when used with standard NIMs, allowing for maintenance without system shutdown. This capability significantly reduces downtime during troubleshooting or system expansion.
This input kit performs reliably in harsh industrial environments. The STBDDI3610K operates across a wide temperature range of -25°C to 70°C without derating, making it suitable for demanding applications. Storage temperatures are even broader, spanning from -40°C to 85°C. Furthermore, the module offers an IP20 protection rating and complies with pollution degree 2 standards. Its vibration resistance reaches up to 5gn on a 35 x 15mm DIN rail, while shock resistance carries a rating of 30gn for 11ms, ensuring dependable operation in high-vibration settings.
The Schneider STBDDI3610K arrives as a complete kit, which simplifies the procurement and installation process. The kit includes the STBDDI3610 digital input module, the STBXBA1000 base, and both the STBXTS1100 screw-type and STBXTS2100 spring clamp connectors. This dual-connector inclusion provides installation flexibility for different wiring preferences and maintenance requirements. Installation is straightforward: mount the base onto a DIN rail, attach the module, and wire the connector of your choice to your field devices. The compact dimensions of 125mm width, 65.1mm depth, and 18.4mm height make this kit an ideal choice for space-constrained control cabinets.
The STBDDI3610K provides comprehensive visual diagnostics to simplify system monitoring. A green LED labeled RDY indicates the module's operational status, while a red LED labeled ERR signals any module errors. Additionally, each of the 6 input channels features its own green LED, labeled IN1 through IN6, which illuminates when the corresponding input is active. This extensive status feedback allows technicians to quickly identify signal issues or module faults without requiring external diagnostic tools.
1 x Schneider Electric STBDDI3610 Digital Input Module
1 x STBXBA1000 I/O Base
1 x STBXTS1100 6-Terminal Screw-Type Connector
1 x STBXTS2100 6-Terminal Spring Clamp Connector
1 x Quick Start Guide
All orders for the STBDDI3610K ship using premium courier services such as FedEx, UPS, or DHL. This guarantees fast and reliable delivery with full tracking capabilities.
1. What connectors are included with the STBDDI3610K kit?
The STBDDI3610K kit includes both the STBXTS1100 screw-type connector and the STBXTS2100 spring clamp connector, providing flexible wiring options for different installation preferences.
2. What is the response time for the inputs on this module?
The Schneider STBDDI3610K offers a fast response time of 1.21ms for off-to-on transitions and 1.74ms for on-to-off transitions.
3. Does this kit support both positive and negative input logic?
Yes, the STBDDI3610K supports both positive and negative discrete input logic, enhancing its compatibility with various sensor types and field devices.
4. What is the operating temperature range for this input kit?
The Schneider STBDDI3610K operates reliably between -25°C and 70°C without derating, making it suitable for extreme industrial environments.
5. Can I replace the module while the system is powered on?
Yes, the STBDDI3610K supports both hot swapping and cold swapping when used with standard NIMs, enabling maintenance without system power-down.
| Brand Name | |
| Model No. | STBDDI3610K |
| Product Type | Standard Digital Input Kit |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
