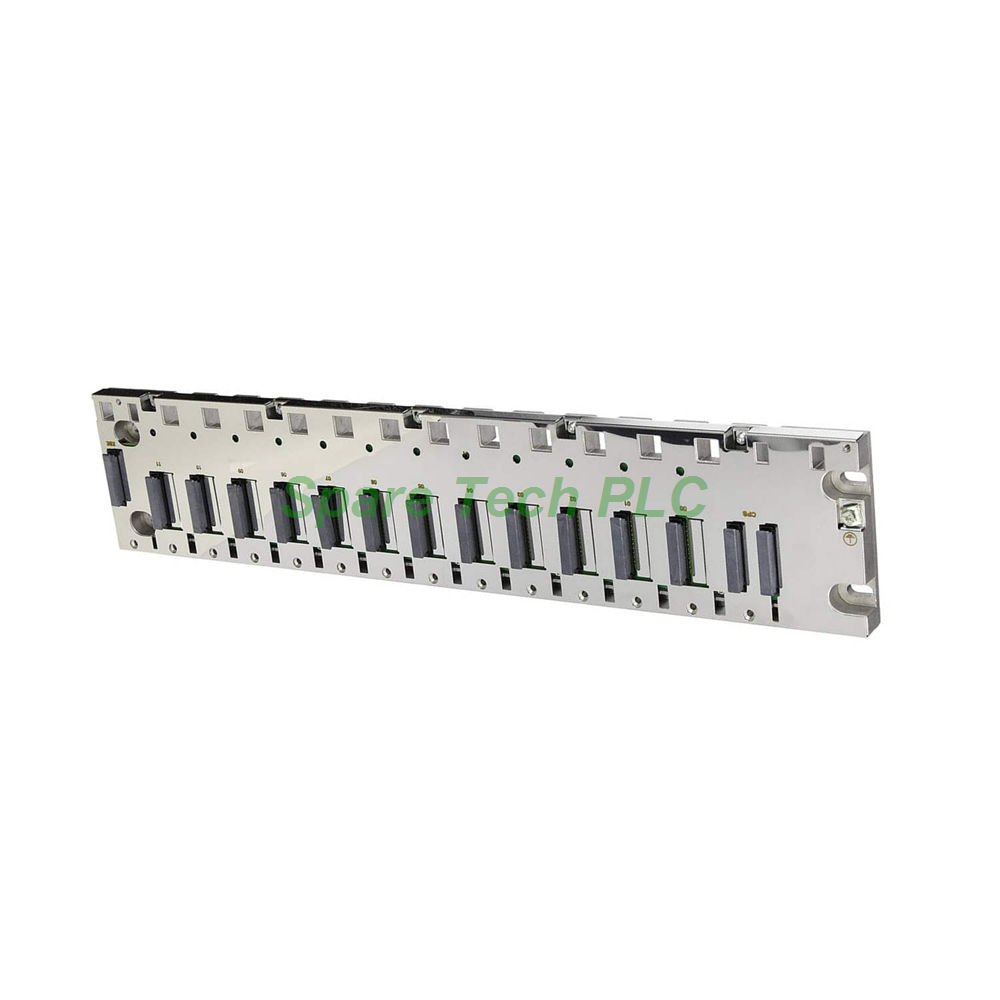

This section provides a comprehensive overview of the BMXXBP1200 rack for the Modicon M340 automation platform. This 12-slot backplane serves as the physical and electrical backbone for your M340 system, connecting all installed modules to the processor and power supply. Specifically, this rack accommodates the BMXCPS power supplies, BMXP34 processors, I/O modules, and specific application modules, making it a versatile foundation for various control system configurations.
First, let us examine the key specifications of the BMXXBP1200. This rack features 12 bus X slots, providing ample space for system expansion. The power consumption is remarkably low at just 0.74W, contributing to overall system efficiency. Furthermore, the rack includes one connector for an XBE expansion module, enabling system growth beyond the 12-slot configuration. The Schneider BMXXBP1200 is fully compatible with the entire M340 module ecosystem, ensuring seamless integration with your existing components.
The BMXXBP1200 offers flexible mounting options to suit different installation requirements. You can mount this rack using four M6 screws for plate mounting, or alternatively, use four screws sized 4.32mm to 6.35mm for panel mounting. This versatility allows you to install the rack in various enclosure types. Additionally, the robust construction and IP20 protection rating ensure reliable operation in standard industrial environments. The operating temperature range spans from 0°C to 60°C, while the relative humidity tolerance reaches 10% to 95% without condensation.
The Schneider BMXXBP1200 supports a wide range of modules to build a complete automation system. You can install the BMXCPS power supply module to provide system power, the BMXP34 processor to handle control logic, and numerous I/O modules for field signal interfacing. The inclusion of the XBE expansion connector allows you to add further racks when your application demands additional I/O capacity. This scalability makes the BMXXBP1200 an ideal choice for both small and medium-sized control applications.
The BMXXBP1200 features a sturdy design that withstands industrial conditions. The product weight is 1.27kg, reflecting its solid construction. Protective treatment TC ensures resistance against environmental factors, extending the service life of the rack. Moreover, this product carries a Green Premium status, indicating its compliance with environmental standards. It has been RoHS compliant since 0612, and it does not contain SVHC substances above the threshold level.
This 12-slot rack suits a wide variety of industrial automation applications. For instance, you can use the BMXXBP1200 in manufacturing lines, process control systems, material handling equipment, and building automation installations. The modular design allows you to configure the system exactly to your application needs, starting with basic I/O and expanding to include communication modules, motion control, and specialized application modules as requirements evolve.
1 x Schneider Electric BMXXBP1200 12-Slot Rack
1 x Mounting hardware kit (screws)
1 x Installation guide
All orders for the BMXXBP1200 ship using premium courier services such as FedEx, UPS, or DHL. This ensures fast and reliable delivery with full tracking capabilities provided for your convenience.
1. Which modules are compatible with the BMXXBP1200 rack?
The BMXXBP1200 accepts BMXCPS power supplies, BMXP34 processors, I/O modules, and specific application modules within the Modicon M340 platform.
2. What mounting options does this rack support?
The Schneider BMXXBP1200 allows mounting via four M6 screws for plates or four screws sized 4.32mm to 6.35mm for panels.
3. Can I expand the system beyond 12 slots using this rack?
Yes, the BMXXBP1200 includes an XBE expansion connector that allows you to add additional racks and expand your system capacity.
4. What is the power consumption of this rack?
The BMXXBP1200 consumes only 0.74W of power, contributing to efficient system operation.
5. Does the BMXXBP1200 comply with environmental standards?
Yes, this Schneider Electric BMXXBP1200 holds Green Premium status, complies with RoHS, and does not contain SVHC substances above the threshold level.
| Brand Name | |
| Model No. | BMXXBP1200 |
| Product Type | Rack / Backplane |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
