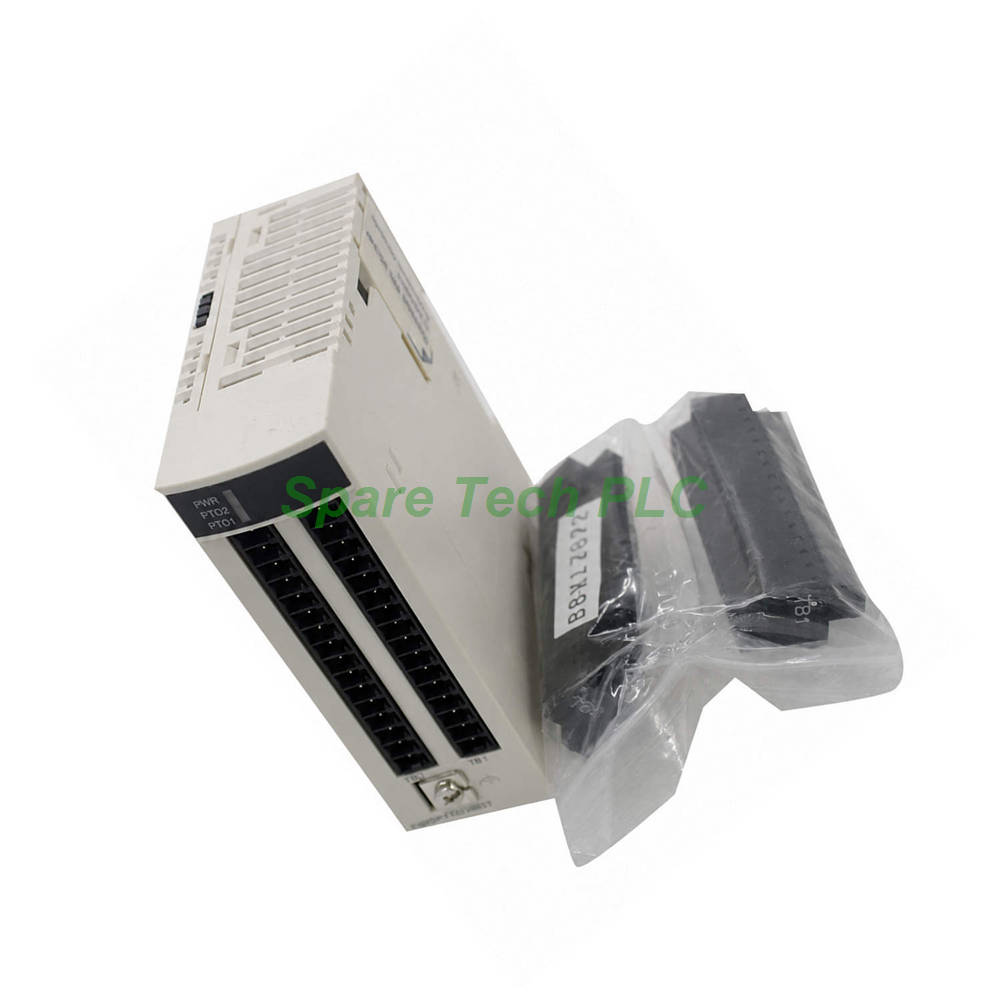

Schneider TWDPTO220DT PTO Pulse Output Module

Schneider Electric TWDPTO220DT PTO Pulse Output Module

Product Introduction

The TWDPTO220DT is a specialized PTO (Pulse Train Output) expansion module designed for the Twido series of programmable logic controllers. It provides two independent pulse output channels that generate square wave signals for motion control applications. This module is particularly well-suited for controlling stepper motors and servo drives in open-loop positioning systems. The TWDPTO220DT can produce either a single pulse train or a complex pulse profile consisting of multiple pulse trains, enabling functions such as acceleration, constant speed, and deceleration ramps. With its integrated digital inputs for limit switches, origin sensors, and drive status feedback, the TWDPTO220DT offers a complete motion control solution without requiring a dedicated motion controller.

Technical Specifications

Pulse Output Channels

The TWDPTO220DT delivers two PTO output channels, each capable of operating at up to 200 kHz. When configured for A/B phase output, the frequency is 100 kHz per channel. Each output follows the RS422 standard, delivering 7 mA per pulse with a maximum load current of 20 mA per pulse. These outputs provide square wave signals with programmable pulse counts and cycle times. The pulse train function supports both single-run and multi-segment profiles, which proves particularly valuable for applications requiring acceleration and deceleration curves. For instance, a stepper motor can be controlled through a ramp-up, constant-speed, and ramp-down sequence using the profiling capability of the TWDPTO220DT. The module supports CW (clockwise) and CCW (counter-clockwise) pulse directions, making it compatible with most stepper and servo drive interfaces.

Digital Inputs

Equipped with four digital inputs, the TWDPTO220DT accepts a variety of position control signals. These inputs are configurable for either source or sink logic, providing flexibility for different sensor types. The input signals include:

• DRV_COMPL: Positioning completion feedback from the drive

• DRV_READY: Drive ready status indication

• ORIGIN: Home position or reference point sensor

• LIMIT: Proximity or limit switch input for travel boundaries

All inputs operate at 24V DC nominal voltage with a permissible range of +15V to +30V DC for closing (ON state). The closing input current exceeds 2 mA, while the opening (OFF state) voltage reaches up to +5V DC with leakage current below 0.5 mA. At 24V DC, the rated current is 4.9 mA. These input characteristics ensure reliable interfacing with standard industrial sensors and drive feedback signals. Shielded cables are recommended for all input connections to maintain signal integrity, especially in electrically noisy environments.

Digital Outputs

Two digital outputs are provided on the TWDPTO220DT for drive control functions. These outputs deliver DRV_ENB (drive enabling) and DRV_CLR (counter clearance) signals to the connected drive or amplifier. The outputs are open-collector type and compatible with source inputs from 5V to 24V, with a maximum current of 0.1A. Built-in reverse polarity protection safeguards the module against wiring errors, while overload protection activates above 200 mA. The residual voltage in the ON state is below 150 mV, and leakage current in the OFF state stays under 50 µA. These outputs are rated at 24V DC and 0.1A, making them suitable for direct connection to most servo and stepper drive enable inputs.

Power Supply and Monitoring

The TWDPTO220DT requires a 24V DC supply with a permissible voltage range of 18V to 31.2V. The module also monitors the actuator power supply voltage, with normal operating conditions requiring >18V and fault conditions detected below 14V. The monitoring response time ranges between 1.2 ms and 1.5 ms for both voltage dropout and recovery events, ensuring rapid detection of power supply issues. External 24V supply should fall within 19.2V to 30V for stable operation. For pulse outputs, unshielded cables may be used, though shielded cables are strongly recommended to reduce electromagnetic interference, particularly when cable runs exceed 3 meters.

Mechanical and Environmental Parameters

The TWDPTO220DT is designed for DIN rail mounting inside control cabinets. Its compact form factor minimizes panel space requirements. For all I/O connections, maximum cable length should not exceed 3 meters to maintain signal quality. Insulation strength between primary and secondary circuits, as well as between channel groups, meets industrial standards with insulation resistance exceeding 10 MΩ at 1,500V for one minute. The module operates without derating across the temperature range of 0°C to 55°C. EMC immunity and environmental ratings align with Twido system standards, ensuring reliable operation in typical industrial environments.

Installation Guide

Proper installation of the TWDPTO220DT ensures optimal performance and longevity. Begin by mounting the module on a 35 mm DIN rail adjacent to the Twido base unit. Next, connect the 24V DC power supply, observing correct polarity and ensuring the voltage stays within the permissible range. For pulse output connections, use shielded twisted-pair cables and keep the cable length under 3 meters. Wire the four digital inputs to limit switches, home sensors, and drive feedback signals as required by your application. Connect the two digital outputs to the drive enable and counter clear terminals. After completing all wiring, configure the PTO parameters in the Twido programming software, specifying pulse counts, cycle times, and profile shapes as needed. Finally, test the system with a low-speed profile to verify correct operation before full-speed deployment.

Packaging List

• Schneider Electric TWDPTO220DT PTO Expansion Module (1 unit)

• Removable screw terminal block (pre-installed)

• Product documentation and quick-start guide

Note: Cables, power supplies, and programming software are sold separately.

FAQ

1. What is the maximum pulse frequency supported by the TWDPTO220DT?
The TWDPTO220DT supports up to 200 kHz per channel for standard pulse outputs. When operating in A/B phase mode, the frequency is 100 kHz per channel.

2. Can the TWDPTO220DT control both stepper motors and servo drives?
Yes, the TWDPTO220DT is compatible with most stepper motor drivers and servo drives that accept pulse train input signals (CW/CCW or pulse/direction). However, it operates in open-loop mode from the PLC perspective, so the servo drive should handle the closed-loop position control internally.

3. What is the purpose of the DRV_COMPL and DRV_READY inputs on the TWDPTO220DT?
DRV_COMPL indicates that the drive has completed a positioning command, while DRV_READY signals that the drive is powered and ready to accept commands. These inputs allow the PLC to sequence motion operations safely and confirm successful positioning.

4. Do I need shielded cables for the TWDPTO220DT connections?
Shielded cables are strongly recommended for all digital inputs, digital outputs, and pulse outputs to minimize electromagnetic interference and ensure reliable communication. For pulse outputs, keep cable lengths under 3 meters for optimal performance.
