Schneider BMXAMI0410 Analog Input Module

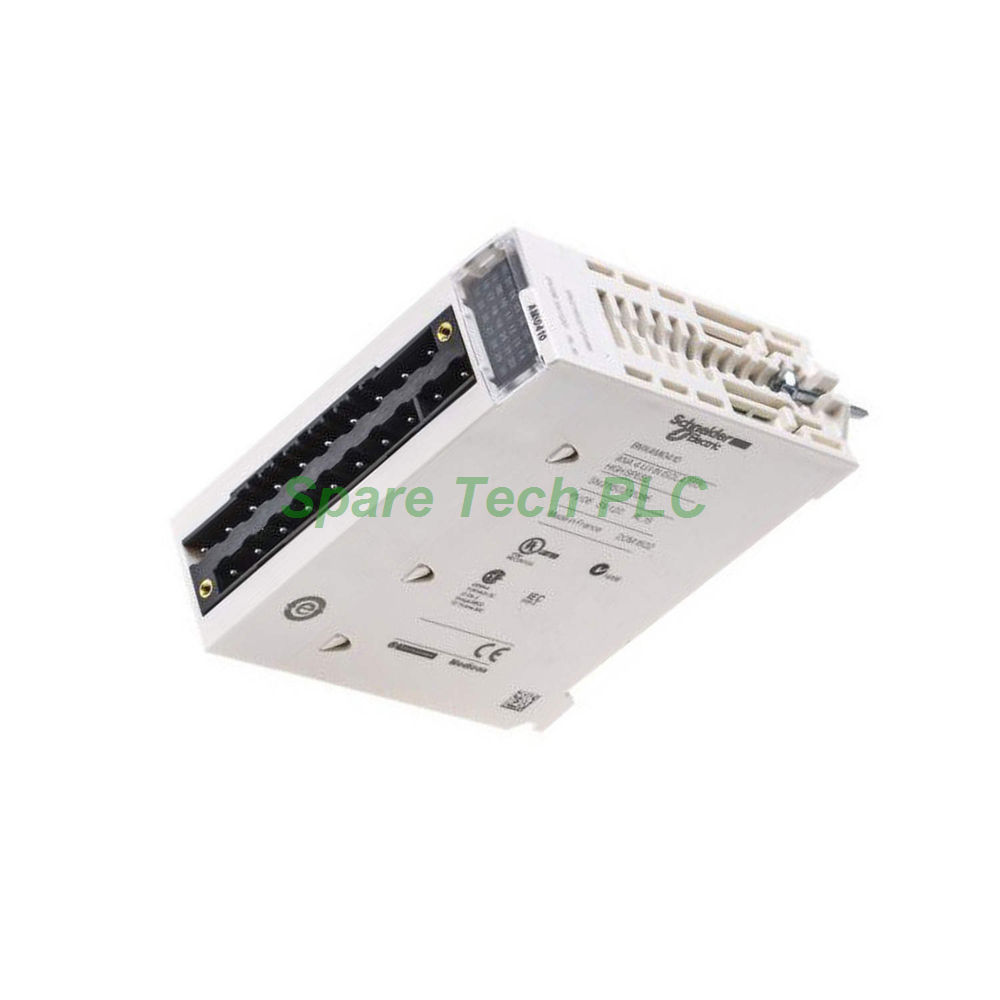

Schneider Electric BMXAMI0410 High-Speed Analog Input Module

Product Introduction

The BMXAMI0410 is a versatile analog input module designed for the Modicon M340 and X80 automation platforms. It accepts four high-level analog inputs that are individually configurable for voltage or current signals, providing exceptional flexibility for process monitoring applications. This module features a 24-bit analog-to-digital converter with effective 16-bit resolution, ensuring accurate measurement across all channels. Notably, the BMXAMI0410 offers fast read cycle times of just 1 ms plus 1 ms per active channel, making it suitable for applications requiring rapid data acquisition. With isolated channels and comprehensive diagnostic LEDs, this module delivers reliable performance in demanding industrial environments.

Technical Specifications

Input Range Configurations

The BMXAMI0410 provides extensive input range options to accommodate diverse sensor types. For voltage signals, users can select ±10V, ±5V, 0-10V, 0-5V, or 1-5V ranges. Current configurations include ±20mA, 0-20mA, and 4-20mA. Each of the four input channels operates independently, allowing mixed configurations within a single module. Input impedance measures at 10 MΩ, ensuring minimal signal loading. An internal conversion resistor of 250 Ω facilitates current measurements with 0.1% precision and 15 ppm/°C temperature stability. Overload protection tolerates up to ±30V for voltage inputs and ±90mA for current inputs, safeguarding the BMXAMI0410 against accidental overvoltage or overcurrent conditions.

Conversion Performance and Accuracy

The BMXAMI0410 delivers outstanding measurement accuracy with 24-bit analog-to-digital conversion and 16-bit effective resolution. At 25°C, voltage measurements achieve 0.075% of full scale, while current measurements reach 0.15%. Across the full operating temperature range (0 to 60°C), accuracy remains within 0.1% for voltage and 0.3% for current. Temperature drift is specified at 15 ppm/°C for voltage ranges and 30 ppm/°C for current ranges, ensuring stable performance despite ambient temperature fluctuations. Measurement resolution reaches 0.35 mV for voltage and 0.92 µA for current signals. Fast read cycle time is 1 ms plus 1 ms per active channel, while nominal read cycle time is 5 ms for all four channels. The module incorporates first-order digital filtering to reduce measurement noise and improve signal stability.

Isolation and Electrical Characteristics

The BMXAMI0410 features robust isolation between channels, with 300V DC isolation between individual analog channels. Channel-to-ground and channel-to-bus isolation are rated at 1400V DC, providing excellent protection against ground loops and common-mode interference. Common mode rejection reaches 120 dB, effectively suppressing noise from industrial environments. Digital value format is user-scalable, with default values of ±10000 and configurable range of ±32000. Maximum conversion values extend to ±11.4V for voltage ranges and 30mA for current ranges, providing headroom above nominal full-scale values. Current consumption is 150 mA at 3.3V DC and 45 mA at 24V DC.

Diagnostics and Status Indication

The BMXAMI0410 includes comprehensive status LEDs for easy diagnostics:

• One green RUN LED indicates normal module operation

• One green channel diagnostic LED per channel

• One red ERR LED signals fault conditions

• One red I/O LED alerts for input/output errors

These visual indicators enable rapid troubleshooting without requiring programming software.

Mechanical and Environmental Parameters

Weighing just 0.143 kg, the BMXAMI0410 is compact and designed for DIN rail mounting. The operating temperature spans 0 to 60°C, while storage temperature ranges from -40 to 85°C. Relative humidity tolerance covers 5 to 95% without condensation. The module achieves IP20 protection rating, suitable for control cabinet installation. Vibration resistance is rated at 3 gn, and shock resistance at 30 gn. Operating altitude ranges from 0 to 2000 meters normally, and 2000 to 5000 meters with appropriate derating factors applied. Certifications include Merchant Navy, RCM, UL, CSA, EAC, and CE, conforming to EN/IEC 61131-2, EN/IEC 61010-2-201, and UL 61010-2-201 standards. Additionally, the BMXAMI0410 is classified as a Green Premium product and complies with RoHS regulations.

Installation Guide

Installing the BMXAMI0410 follows standard Modicon X80 module procedures. Begin by powering down the system to ensure safe installation. Then, mount the module in an available slot on the X80 rack, securing it firmly with the retaining clips. Next, connect the 20-way connector for field wiring, observing proper terminal assignments for each channel. For voltage inputs, use shielded twisted-pair cables and keep runs under the recommended length. For current inputs, ensure the loop power supply is properly configured. After wiring, power up the system and configure the input ranges using Unity Pro or EcoStruxure Control Expert software. Finally, verify channel status via the diagnostic LEDs and monitor measured values in the programming environment.

Packaging List

• Schneider Electric BMXAMI0410 Analog Input Module (1 unit)

• 20-way connector (attached)

• Product documentation and installation guide

Note: Cables, power supplies, and programming software are sold separately.

FAQ

1. Can I mix voltage and current inputs on the BMXAMI0410?
Yes, each of the four input channels is independently configurable. You can set channel 1 for 4-20mA, channel 2 for 0-10V, and configure the remaining channels differently as needed for your application.

2. What is the difference between fast and nominal read cycle times on the BMXAMI0410?
Fast read cycle time is 1 ms plus 1 ms per active channel (e.g., 5 ms for all four channels). Nominal read cycle time is fixed at 5 ms for all four channels. Use fast mode when higher data acquisition speed is required.

3. How does the BMXAMI0410 handle overload conditions?
The module includes built-in protection allowing up to ±30V on voltage inputs and ±90mA on current inputs without damage. This safeguards the module during fault conditions while maintaining accurate measurements under normal operation.

4. What is the purpose of the internal recalibration feature on the BMXAMI0410?
Internal recalibration compensates for long-term drift and ambient temperature variations, maintaining measurement accuracy without requiring external calibration equipment or manual adjustments.

5. What shipping carriers do you use for the BMXAMI0410?
We ship globally using FedEx, UPS, and DHL to ensure fast and reliable delivery. Tracking information will be provided upon dispatch.
