Schneider TM5SDO4T Discrete Output Module

Modicon TM5SDO4T 4-Channel Discrete Output Module

Product Introduction

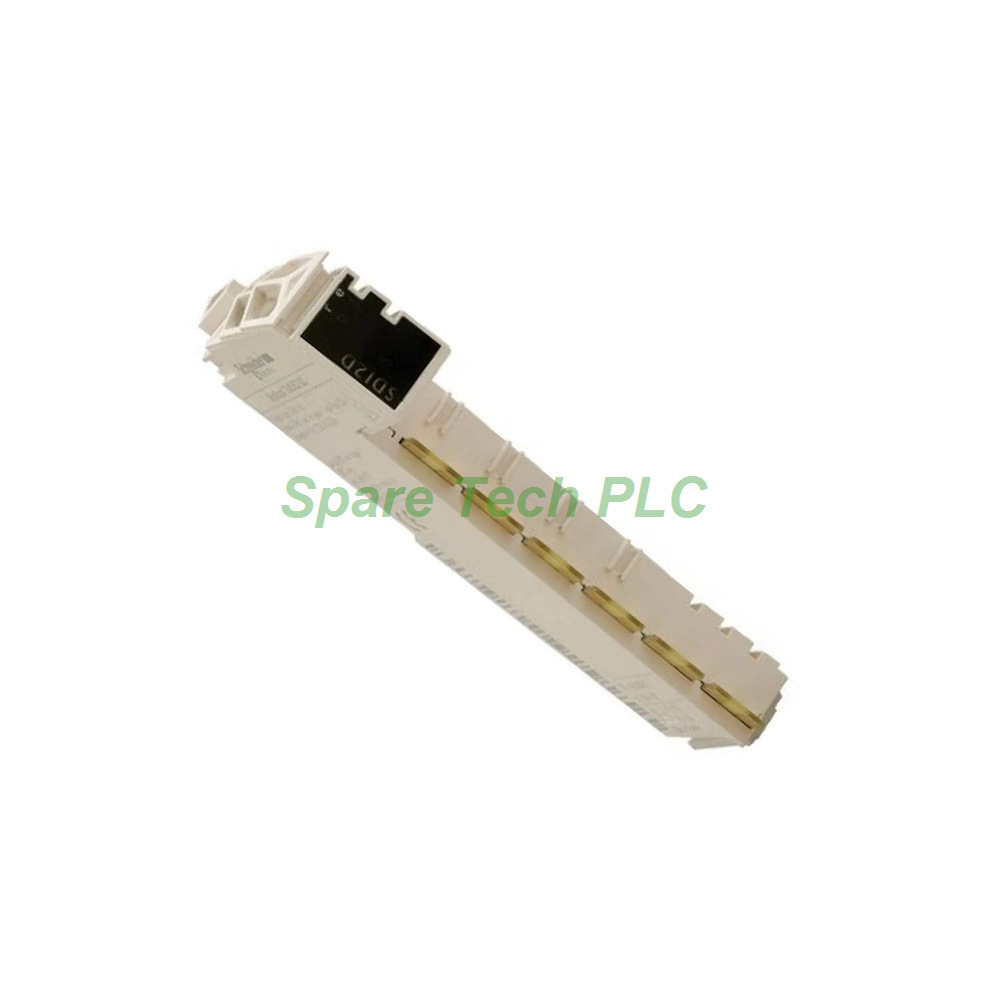

The TM5SDO4T from Schneider Electric is a robust and reliable discrete output module built for the Modicon TM5 system. This module integrates seamlessly with controllers like the Modicon M258 and the PacDrive LMC series. As a sourcing output device, the TM5SDO4T provides four independent transistor channels, with each one capable of delivering up to 0.5 A. Furthermore, its total output current per common is rated at 2 A, which ensures adequate power for demanding applications. Specifically engineered for fast switching, the TM5SDO4T achieves a response time of just 300 µs. Therefore, it is an excellent choice for applications requiring high-speed control.

Technical Specifications of the TM5SDO4T

This section details the core electrical and performance characteristics of the discrete output module.

Discrete Outputs: The module features four discrete transistor outputs. All channels operate with a standard 24 V DC voltage, supporting a supply range of 20.4 to 28.8 V DC.

Output Performance: Each channel supports a continuous current of 0.5 A, while the maximum current per output common is 2 A. Additionally, the module can handle a peak output current of 12 A for short durations. The voltage drop is minimal, at less than 0.3 V at 500 mA, which helps maintain the efficiency of connected loads.

Switching and Protection: This module is capable of a switching frequency of up to 500 Hz for resistive loads. The response time from both state 0 to 1 and 1 to 0 is ≤ 300 µs. For safety and reliability, it includes comprehensive protection features such as reverse polarity protection, short-circuit protection, and overload protection. The leakage current is exceptionally low at a maximum of 5 µA when the output is switched off. Furthermore, the output is isolated from the internal bus with a rating of 500 Vrms AC, although there is no insulation between individual channels.

Mechanical and Environmental Data

Understanding the operating conditions is crucial for a successful installation.

Mounting and Dimensions: This module is designed for DIN rail mounting, a standard for industrial control cabinets. It is a compact unit with a lightweight design of just 0.025 kg (or 0.038 kg including packaging).

Environmental Resilience: The TM5SDO4T operates reliably in a wide temperature range. For horizontal installation, it works between -10 and 55°C without derating. Additionally, it can operate up to 60°C with a derating factor. The storage temperature range is from -40 to 70°C. Its IP20 protection rating ensures it is safe from solid objects larger than 12mm. Moreover, it is compliant with the IEC 61131-2 standard, guaranteeing industrial-grade performance.

Installation Guidelines for the Modicon TM5SDO4T

Installing the TM5SDO4T is a straightforward process. However, following a few key steps ensures optimal performance and longevity.

First, ensure the power supply is disconnected before installation to prevent any electrical hazards. The module is designed to snap directly onto a standard DIN rail, providing a secure mechanical connection. Next, you must wire the 3-wire connections to the field devices, paying close attention to the polarity, as this is a sourcing (source) output module. The bus is powered via the backplane when connected to the controller.

Important Installation Considerations:

• Always observe the specified operating temperature ranges and derating requirements.

• Ensure adequate clearance around the module for proper ventilation.

• Verify the correct voltage (24V DC) to avoid damage to the outputs.

Packaging and Shipping Details

The Schneider TM5SDO4T is delivered as a single unit in a protective package.

Package Contents:

1. Modicon TM5 Discrete Output Module (TM5SDO4T)

2. Protective packaging for safe transport

Shipping Logistics: All orders are processed and shipped using premium, trackable courier services. We exclusively use industry-leading carriers such as Fedex, UPS, and DHL to ensure your module arrives on time and in perfect condition.

Frequently Asked Questions (FAQ)

1. What controllers are compatible with the TM5SDO4T?
The TM5SDO4T is compatible with the Modicon M258, LMC058, and the PacDrive LMC series of logic and motion controllers.

2. Does the module support sourcing or sinking outputs?
The TM5SDO4T is a source output module, meaning it provides the positive voltage to the load.

3. What happens if the output is short-circuited?
The module has built-in short-circuit and overload protection, which will protect the internal circuitry from damage.

4. How many outputs can I switch at high speed?
All four outputs can be switched at up to 500 Hz, provided the load is resistive and the total current does not exceed the module's limits.

5. What is the isolation rating for the outputs?
The TM5SDO4T provides 500 Vrms AC insulation between the channels and the internal bus, but no insulation between individual channels.
