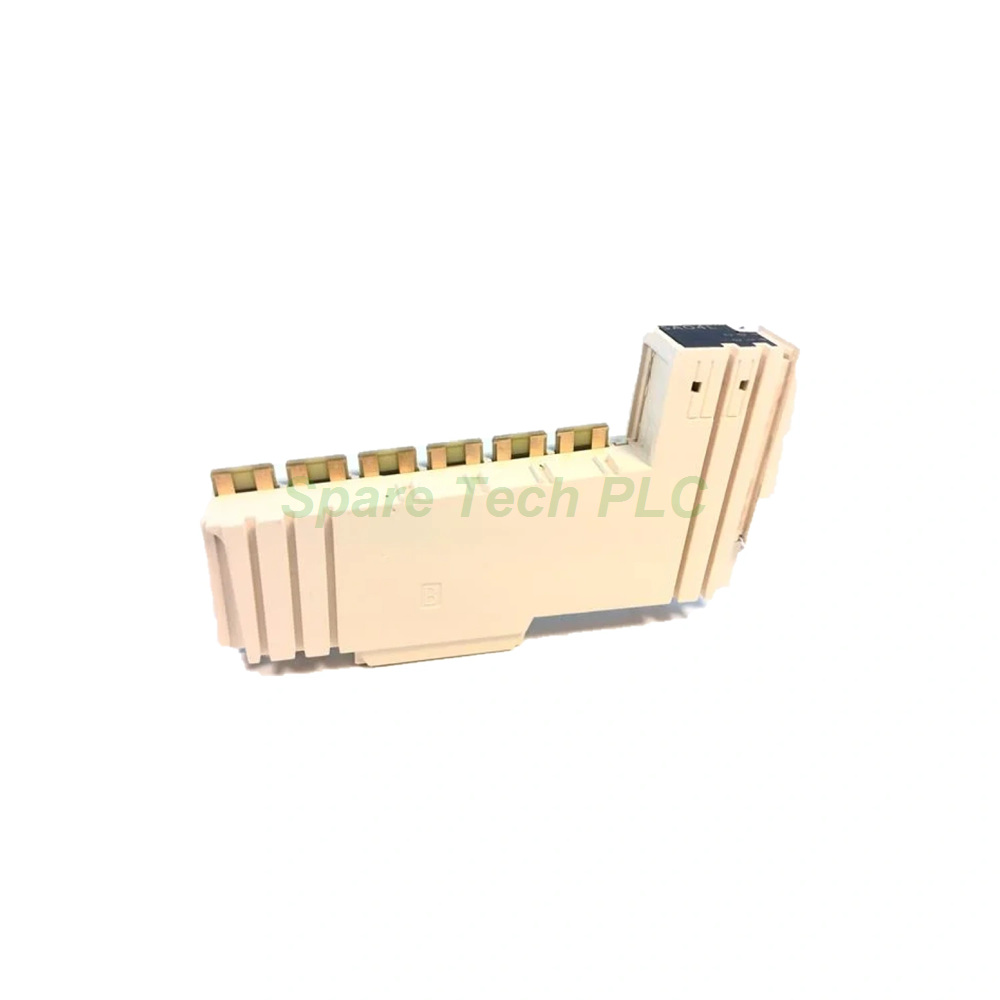

The TM5SAO4L is a compact analog output module within the Schneider Electric Modicon TM5 distributed I/O family. This unit provides four output channels, each software configurable for ±10 Vdc or 0-20 mA operation. Moreover, it delivers 12-bit resolution for smooth and accurate signal generation. The module responds to output changes within 1 ms, while sampling occurs every 200 µs. Consequently, it suits multi-loop control, valve positioning, and variable speed drive reference signals. Its slim 12.5 mm housing saves cabinet space. Additionally, LED indicators for ModuleOK, DcOk, and NetworkOk simplify commissioning and fault finding. The TM5SAO4L integrates with Modicon M241, M251, M258, and LMC058 controllers.
The TM5SAO4L offers four analog output channels. Each channel supports ±10 Vdc or 0-20 mA, selectable through software. Specifically, resolution reaches 12 bits across the full range. Accuracy stays within ±0.3% of full scale at 25 °C, and within ±0.5% over the full temperature range. Meanwhile, isolation between channels remains absent, yet 500 Vrms AC separates the channels from the TM5 bus. The module draws 3 mA at 5 V DC and 90 mA at 24 V DC from the bus, with total power consumption of 1.8 W. Besides, output change response time maxes out at 1 ms, and sampling time reaches 200 µs.
Diagnostic LEDs report ModuleOK, DcOk, and NetworkOk conditions. These indicators help technicians confirm wiring and communication status. Furthermore, the configurable signal type per channel reduces spare-part variety. Therefore, one module covers both voltage and current loop applications across four independent outputs.
The module measures 99 mm high, 12.5 mm wide, and 75 mm deep. Its weight sits near 0.025 kg. Operating temperature spans 0 to +55 °C, while storage temperature ranges from -25 to +70 °C. The protection rating is IP20, so the unit belongs inside a clean control cabinet. First, mount the module on the TM5 bus base. Next, wire the analog loads with shielded cables. Finally, verify LED status before running the process.
Installation follows standard TM5 procedures. First, snap the TM5SAO4L onto the bus base until it clicks. Then connect the 24 Vdc supply through the bus. Meanwhile, route analog signal wires away from power cables to reduce noise. After that, configure each channel for voltage or current mode in the engineering software. However, always confirm the load impedance matches the selected signal type. Finally, check the ModuleOK and DcOk LEDs before startup.
1 × Schneider TM5SAO4L Analog Output Module
1 × Protective shipping box
1 × Quick start leaflet
Shipping via Fedex, UPS, DHL
Q1: What is the TM5SAO4L?
A: It is a Modicon TM5 analog output module with four configurable channels.
Q2: Which signal types does each channel support?
A: Each channel supports ±10 Vdc or 0-20 mA, set by software.
Q3: What resolution does this module provide?
A: It delivers 12-bit resolution across the full output range.
Q4: Which controllers work with this module?
A: It supports Modicon M241, M251, M258, and LMC058 platforms.
Q5: How fast does the output respond?
A: Output change response time reaches 1 ms maximum, with 200 µs sampling.
| Brand Name | |
| Model No. | TM5SAO4L |
| Product Type | Digital Output Module |
