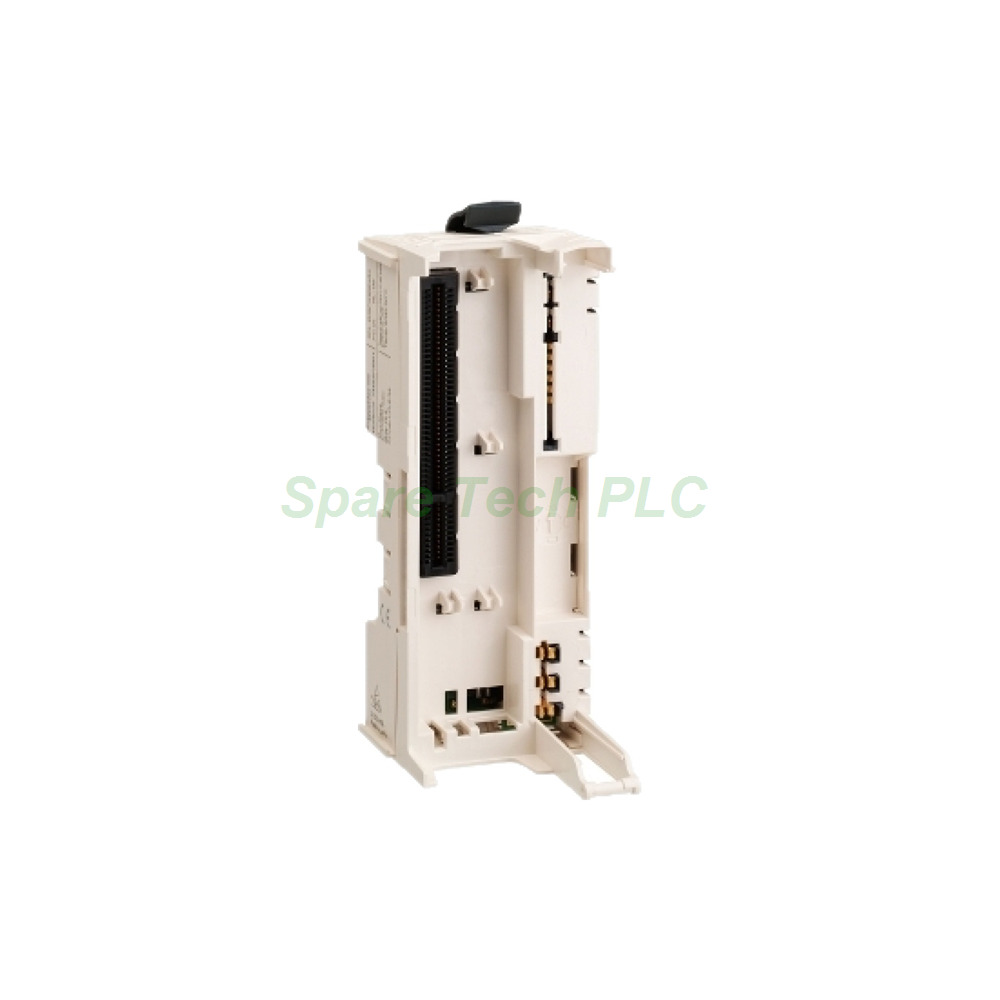

The TM5ACBN1 is a bus base module within the Schneider Electric Modicon TM5 distributed I/O platform. This unit acts as a passive backplane carrier for fieldbus interface modules and interface power supplies. Specifically, it supports the TM5NCO1 interface module, the TM5SPS3 power supply, and the TM5NS31 interface module. Moreover, it ships with two protective plates for safe handling and installation. The base carries a rated supply voltage of 24 V DC. Its white housing fits the standard TM5 color scheme. Additionally, this module weighs just 0.02 kg, so it adds almost no load to the mounting rail. Engineers use it in packaging, material working, material handling, and machine control applications. The TM5ACBN1 works with Modicon M258, LMC058, and LMC078 controllers.
The TM5ACBN1 functions as a passive bus base. It carries no active channels or signal processing circuits. Instead, it provides the mechanical and electrical interface for communication and power modules. The rated supply voltage reaches 24 V DC. Furthermore, the unit arrives supplied with two protective plates. These plates shield the bus contacts during wiring and handling. The white color matches other Modicon TM5 components. In addition, the module belongs to the communication accessories category within the TM5 range.
This base module supports the TM5NCO1 CANopen interface, the TM5NS31 Sercos interface, and the TM5SPS3 power supply. It fits Modicon M258, LMC058, and LMC078 controllers. First, it suits packaging machinery. Next, it serves material working and handling systems. Finally, it fits general machine control cabinets.
The TM5ACBN1 weighs 0.02 kg, so it remains very light. Operating temperature ranges from 0 to +55 °C. Storage temperature spans -25 to +70 °C. The protection rating is IP20, so the unit belongs inside a clean control cabinet. The white housing resists common industrial contaminants. Meanwhile, the passive design means no heat generation from the base itself.
Installation follows standard TM5 procedures. First, mount the base onto the TM5 bus rail. Then seat the fieldbus interface or power module into the base. Next, attach the protective plates if the slot remains empty. After that, wire the 24 V DC supply through the connected module. Finally, verify the module seating before power-up. However, always confirm the bus base model matches the intended interface module.
1 × Schneider TM5ACBN1 Bus Base Module
2 × Protective Plates
1 × Protective shipping box
Shipping via Fedex, UPS, DHL
Q1: What is the TM5ACBN1?
A: It is a passive bus base module for the Modicon TM5 platform.
Q2: Which modules does this base support?
A: It supports the TM5NCO1, TM5NS31 interface modules, and TM5SPS3 power supply.
Q3: What voltage does the bus base carry?
A: The rated supply voltage is 24 V DC.
Q4: Which controllers work with this base?
A: It supports Modicon M258, LMC058, and LMC078 controllers.
Q5: Does the base come with protective plates?
A: Yes, Schneider supplies two protective plates with each unit.
