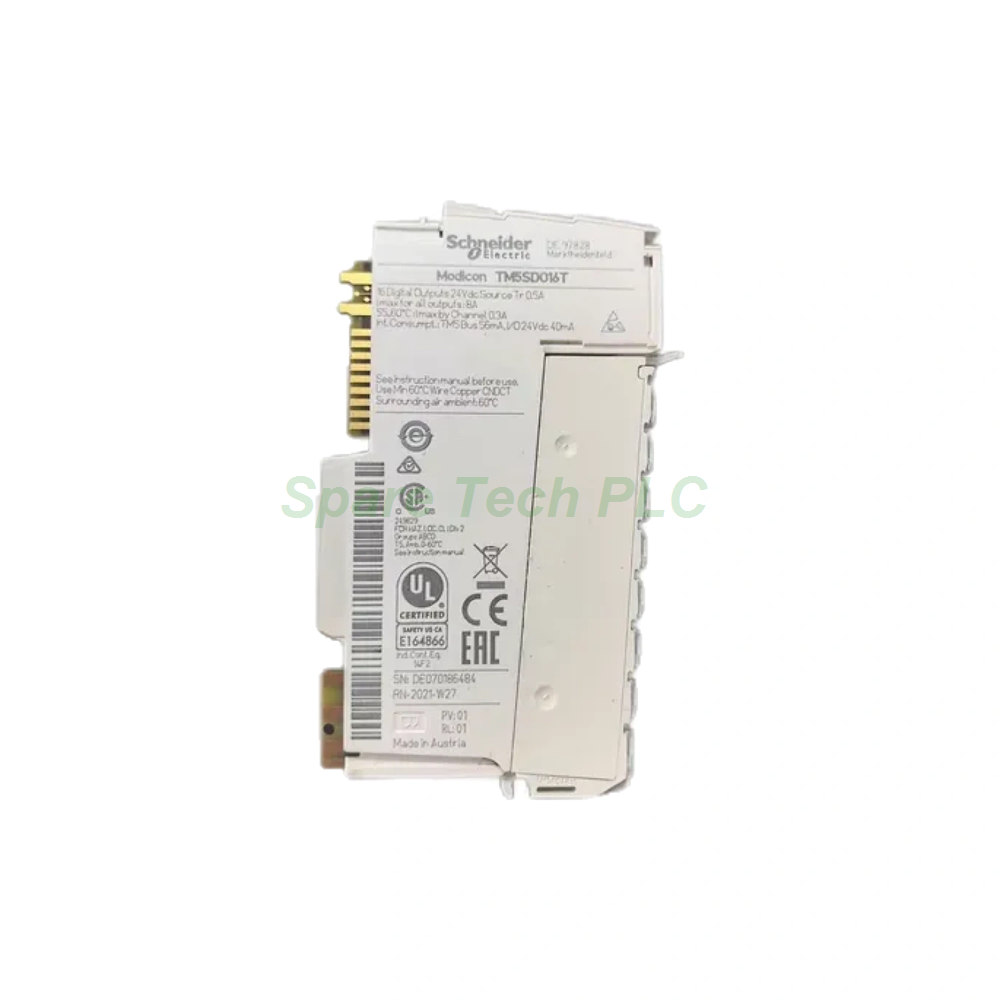

The TM5SDO16T belongs to the Schneider Electric Modicon TM5 distributed I/O platform. This digital output module delivers sixteen transistor outputs with a source (PNP) configuration. Each channel handles up to 0.5 A at 24 Vdc nominal. Furthermore, the module responds in 300 µs or less, which suits fast switching duties. Its compact 12.5 mm width saves valuable cabinet space. The unit also provides short-circuit, overload, and reverse polarity protection. Therefore, it protects both the module and connected loads. Engineers often choose this part for machine control, packaging lines, and material handling systems. The TM5SDO16T works with Modicon M241, M251, M258, and LMC058 controllers. In addition, it carries ModuleOK, DcOk, and NetworkOk diagnostics for quick troubleshooting.
The TM5SDO16T provides sixteen digital outputs. These outputs use 24 Vdc transistor technology in a source (PNP) arrangement. Specifically, each channel supplies a maximum current of 0.5 A. The nominal voltage stays at 24 Vdc. Meanwhile, the module draws 65 mA at 5 V DC and 65 mA at 24 V DC from the TM5 bus. Power consumption reaches 2.6 W. Response time for turn-on and turn-off remains at or below 300 µs. Besides, no isolation exists between channels, though 500 Vrms AC separates the channel from the bus.
Protection features include short-circuit, overload, and reverse polarity safeguards. These functions reduce downtime and prevent damage. Additionally, LED indicators show ModuleOK, DcOk, and NetworkOk status. Technicians can diagnose faults quickly without extra tools.
The module measures 99 mm high, 12.5 mm wide, and 75 mm deep. Its weight stays near 0.025 kg. Operating temperature ranges from 0 to +55 °C. Storage temperature spans -25 to +70 °C. The protection rating is IP20, so the unit fits inside clean control cabinets. First, mount the module on a TM5 bus base. Next, wire the 24 Vdc supply and output loads. Finally, verify the LED status before starting the machine.
Installation follows standard TM5 practices. First, snap the module onto the bus base. Then tighten the terminals to the specified torque. Meanwhile, keep wiring away from high-voltage cables. After that, connect the 24 Vdc load supply. The TM5SDO16T needs no channel isolation, so common return wiring works well. However, always check polarity before power-up. Finally, confirm the DcOk and ModuleOK LEDs turn green.
1 × Schneider TM5SDO16T Digital Output Module
1 × Protective shipping box
1 × Quick start leaflet
Shipping via Fedex, UPS, DHL
Q1: What is the TM5SDO16T?
A: It is a Modicon TM5 digital output module with sixteen 24 Vdc transistor source channels.
Q2: How much current does each channel handle?
A: Each channel delivers up to 0.5 A at 24 Vdc nominal.
Q3: Which controllers support this module?
A: It works with Modicon M241, M251, M258, and LMC058 platforms.
Q4: Does it offer short-circuit protection?
A: Yes, it includes short-circuit, overload, and reverse polarity protection.
Q5: How fast does the output switch?
A: Turn-on and turn-off response time stays at or below 300 µs.
| Brand Name | |
| Model No. | TM5SDO16T |
| Product Type | Digital Output Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
