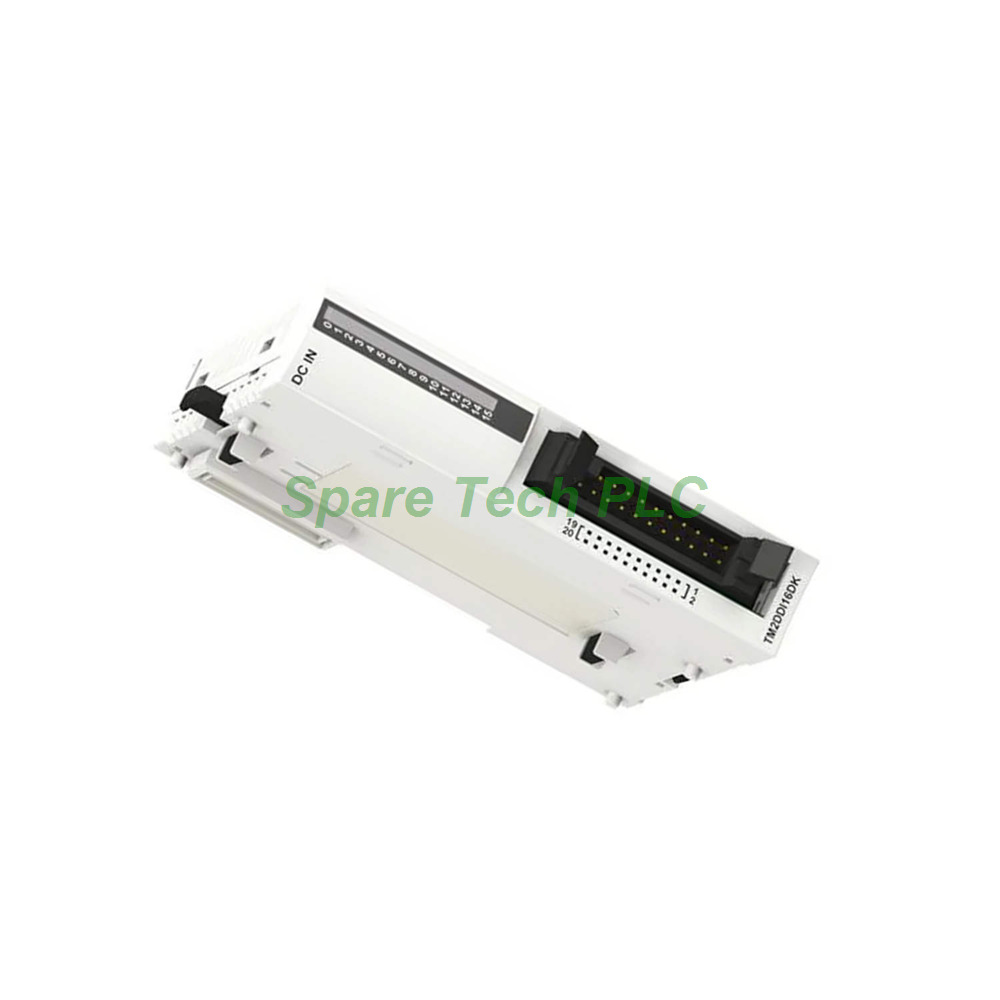

The Schneider Electric TM2DDI16DK is a high-density discrete input module designed for the Modicon M238 logic controller. It also offers compatibility with Twido and Advantys OTB platforms. This module provides 16 digital input channels operating at 24V DC. It supports both sink and source logic configurations, offering exceptional wiring flexibility. Furthermore, the TM2DDI16DK features a single HE10 connector for fast and reliable wiring. Its compact 21.4mm width makes it ideal for space-constrained control cabinets.
The TM2DDI16DK supports both sink and source logic. This flexibility simplifies integration with various field devices. You can connect it to sensors with PNP or NPN outputs. This versatility reduces the need for additional interface components. Therefore, it streamlines system design and lowers overall costs.
The TM2DDI16DK provides isolation between channels and the internal logic. The dielectric strength is 500V for 1 minute. However, there is no isolation between individual channels. Therefore, all channels share a common reference. This configuration is suitable for most standard industrial applications.
The TM2DDI16DK consumes 35mA from the 5V DC supply when all inputs are at state 1. This low power consumption minimizes the load on your system power supply. Furthermore, it contributes to overall energy efficiency in your control system.
The TM2DDI16DK uses a single HE10 connector for all input connections. This connector allows for fast and reliable wiring. It also supports ribbon cable connections. Consequently, it significantly reduces installation time compared to traditional screw terminals. The module also features 2 display blocks for local signaling.
The TM2DDI16DK has a compact form factor. Its width is only 21.4mm. The height is 90mm, and the depth is 81.3mm. The module weighs only 0.1kg. This compact design maximizes panel space efficiency. Furthermore, its lightweight construction reduces strain on the mounting rail.
The TM2DDI16DK mounts on a standard 35mm symmetrical DIN rail. This mounting method is quick and secure. The module clips firmly onto the rail. Therefore, installation is straightforward and requires no special tools.
The TM2DDI16DK is compatible with Modicon M238 logic controllers. It also works with Twido programmable controllers and Advantys OTB distributed I/O systems. This broad compatibility makes it a versatile choice for various automation architectures.
The TM2DDI16DK operates reliably in standard industrial environments. Its IP20 protection rating ensures safe installation in protected cabinets. Always follow the manufacturer's guidelines for temperature and humidity. This approach ensures long and reliable service life.
First, mount the TM2DDI16DK onto a standard 35mm symmetrical DIN rail. Ensure the rail is securely attached to your cabinet. Next, clip the module into place until the latch engages. Verify that the module sits firmly on the rail. Finally, ensure adequate spacing for the connector and cable routing.
Connect the HE10 cable to the TM2DDI16DK connector. Ensure that the cable is securely seated. Wire the field devices to the corresponding pins on the other end of the cable. Follow the wiring diagram provided in the product manual. Use proper cable management practices to prevent signal interference.
Configure the TM2DDI16DK within your programming software. Set the input logic to sink or source based on your sensor wiring. Verify the input addresses. Test each input individually to confirm proper operation. This systematic approach prevents operational issues.
After installation, test all inputs. Apply signals to each input channel. Verify that the controller correctly detects the state changes. Check the LED indicators for proper status. Resolve any wiring or configuration issues before system start-up.
Unit Type of Package: PCE
Package 1 Height: 4.300 cm
Package 1 Width: 9.500 cm
Package 1 Length: 11.900 cm
Package 1 Weight: 0.100 kg
We ship this item using premium courier services. Delivery will be handled by Fedex, UPS, or DHL. The module is packaged securely to prevent damage during transit. International shipping is available. Additionally, tracking information will be provided immediately after dispatch.
The TM2DDI16DK provides 16 discrete input channels. This high channel density saves panel space and simplifies system design.
The TM2DDI16DK operates at 24V DC. The input voltage limits are 20.4V to 28.8V. This makes it compatible with standard industrial power supplies.
Yes, the TM2DDI16DK supports both sink and source logic configurations. This flexibility simplifies integration with various field devices.
The TM2DDI16DK uses a single HE10 connector. This connector provides fast and reliable wiring. It is ideal for applications requiring quick installation.
The TM2DDI16DK has a response time of 4ms for both state 0 and state 1 transitions. This ensures reliable and consistent input detection.
| Brand Name | |
| Model No. | TM2DDI16DK |
| Product Type | Discrete Input Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
