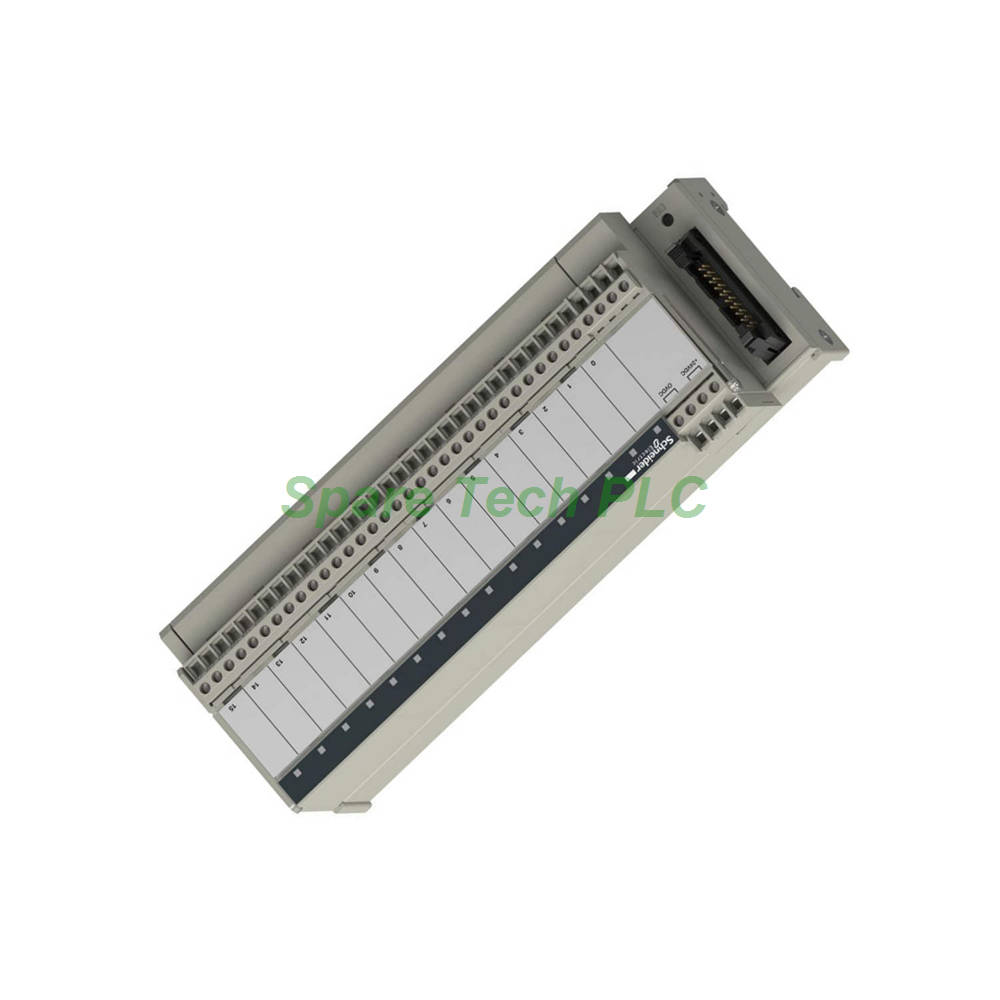

The Schneider Electric ABE7R16S210 is a high-density relay sub-base designed for the Modicon ABE7 system. It offers 16 independent channels, each equipped with a 10mm electromechanical relay. Each channel provides 1 normally open (NO) contact. This sub-base operates with a 24V DC PLC supply. It supports switching voltages up to 250V AC and 30V DC. Furthermore, the ABE7R16S210 features removable terminal blocks for simplified wiring and maintenance. Its robust construction ensures reliable operation in demanding industrial environments.
The ABE7R16S210 provides 16 channels of relay outputs. Each channel has 1 NO contact. The maximum switching voltage is 250V AC at 50/60Hz and 30V DC. The current per channel is up to 5A for preactuator applications. The minimum switching current is 10mA at >= 5V. The maximum current per output common is 10A. The contact bounce time is <= 5ms. These specifications enable the ABE7R16S210 to control a wide variety of loads.
The ABE7R16S210 operates with a 24V DC PLC supply. The threshold tripping voltage is 19.7V at 40°C. The drop-out voltage is 2.4V at 20°C. The drop-out current is 1mA at 20°C. The operating time is <= 10ms for coil energization and NO closing. The deactivation time is <= 5ms for NO opening. The maximum power dissipation per channel is 0.36W. Consequently, the module offers fast and efficient switching performance.
The ABE7R16S210 delivers outstanding electrical durability. It achieves 500,000 cycles at 600mA for DC-13 loads at 24V. It also achieves 500,000 cycles at 1500mA for AC-12 loads at 230V. For AC-15 loads at 230V, it provides 500,000 cycles at 900mA. The mechanical durability is 20,000,000 cycles without load. The switching frequency is up to 10Hz without load and 0.5Hz at rated current. Therefore, the ABE7R16S210 ensures long service life in high-cycle applications.
The ABE7R16S210 provides excellent electrical isolation. The rated insulation voltage (Ui) is 2000V. The rated impulse withstand voltage (Uimp) is 2.5kV. The dielectric strength is 2000V. The installation category is II. The module resists incandescent wire at 750°C with extinction time < 30s. It also withstands microbreaks up to 5ms. These features ensure safe and reliable operation.
The ABE7R16S210 uses removable terminal blocks. Each channel has 2 terminals. The tightening torque is 0.6 N.m. Use a flat Ø 3.5mm screwdriver for wiring. The polarity distribution is volt-free. This design simplifies installation and maintenance. Moreover, it reduces wiring errors and downtime.
The ABE7R16S210 has a width of 206mm. Its net weight is 0.405kg. The packaging weight is 0.581kg. This compact design saves valuable panel space. It is suitable for installations with limited cabinet space. Furthermore, its lightweight construction reduces strain on the mounting rail.
The ABE7R16S210 offers flexible mounting options. You can mount it on a 35mm symmetrical DIN rail using clips. Alternatively, you can mount it on a solid plate using the fixing kit with screws. This flexibility accommodates various installation requirements. Therefore, it suits both new installations and retrofit projects.
The ABE7R16S210 operates reliably across a wide temperature range. The ambient air temperature for operation is -5°C to 60°C. The storage temperature range is -40°C to 80°C. The module meets pollution degree 2 requirements. Its IP2X protection rating ensures safe installation in protected cabinets. It also carries GL, CSA, DNV, UL, and EAC certifications.
The ABE7R16S210 is built for harsh industrial environments. It withstands shock of 15gn for 11ms. It resists radiated fields at 10 V/m from 26MHz to 1GHz. It withstands fast transients at 2kV level 3. These specifications ensure reliable operation in applications with significant electrical noise and mechanical stress.
First, mount the ABE7R16S210 onto a 35mm symmetrical DIN rail. Ensure the rail is securely attached to your cabinet. Clip the sub-base into place until the latch engages. For panel mounting, use the fixing kit with screws. Verify that the sub-base sits firmly on the rail or panel. Finally, ensure adequate spacing for ventilation and wiring access.
Connect the 24V DC PLC supply to the designated terminals. Wire the input devices to the appropriate terminals. Connect the output loads to the relay contacts. Use proper wire gauges to handle the current requirements. Ensure that all connections are secure. The tightening torque is 0.6 N.m.
The ABE7R16S210 requires no complex configuration. It operates as a straightforward relay interface. Verify that the PLC outputs correspond to the correct channels. Test each channel individually to confirm proper operation. This systematic approach prevents operational issues.
Periodically inspect the ABE7R16S210 for signs of wear. Check for loose connections. Ensure that the relays operate correctly. Replace any faulty relays as needed. Regular maintenance extends the service life of the sub-base.
Unit Type of Package: PCE
Package 1 Height: 7.000 cm
Package 1 Width: 8.200 cm
Package 1 Length: 21.100 cm
Package 1 Weight: 0.581 kg
We ship this item using premium courier services. Delivery will be handled by Fedex, UPS, or DHL. The sub-base is packaged securely to prevent damage during transit. International shipping is available. Additionally, tracking information will be provided immediately after dispatch.
The ABE7R16S210 provides 16 independent relay channels. This high channel density saves panel space and reduces installation costs.
The ABE7R16S210 supports switching voltages up to 250V AC and 30V DC. This versatility suits various industrial control applications.
The ABE7R16S210 features 1 normally open (NO) contact per channel. This configuration is suitable for most switching applications.
You can mount the ABE7R16S210 on a 35mm symmetrical DIN rail using clips. Alternatively, you can mount it on a solid plate using the fixing kit with screws.
The ABE7R16S210 carries GL, CSA, DNV, UL, and EAC certifications. These certifications ensure compliance with international standards.
| Brand Name | |
| Model No. | ABE7R16S210 |
| Product Type | Electromechanical Output Relay Sub-Base |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
