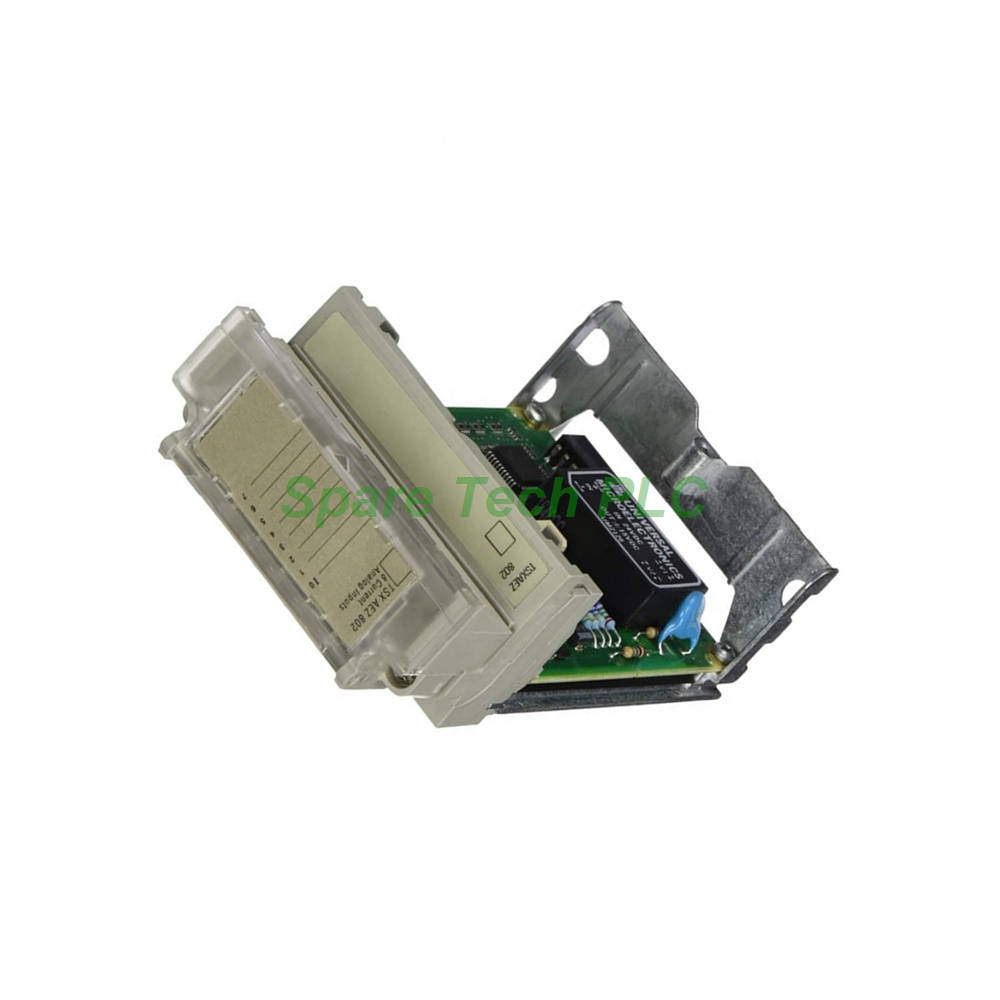

The Schneider Electric TSXAEZ802 is a high-performance analog input module designed for the Modicon TSX Micro PLC system. This module provides 8 individual analog input channels. It accepts both 4-20mA and 0-20mA current signals. The TSXAEZ802 features 12-bit resolution for precise signal conversion. Furthermore, it comes supplied complete with a terminal block. This module is ideal for process monitoring and control applications requiring multiple analog measurements.
The TSXAEZ802 offers 8 analog input channels. Each channel accepts current signals in the ranges of 4-20mA and 0-20mA. The input impedance is 250 Ohm. This impedance ensures proper signal loading and accurate measurements. Consequently, the TSXAEZ802 works seamlessly with various industrial sensors and transmitters.
The TSXAEZ802 uses 12-bit analog-to-digital conversion. This resolution provides precise digital representation of the input signals. The acquisition period is 32 ms. This fast acquisition ensures timely data updates for your control applications. The temperature drift is 0.054% per 10°C. Therefore, the module maintains accuracy across varying temperatures.
The TSXAEZ802 draws a current consumption of 60 mA. This low power draw minimizes the load on your system power supply. The isolation voltage is 1000V AC. This high isolation protects the PLC from electrical noise and potential damage.
The TSXAEZ802 weighs 0.2 kg. It is a half-height module designed for the TSX Micro rack. This compact footprint saves valuable space in your control cabinet. Additionally, the module comes with a removable terminal block for easy wiring and maintenance.
First, install the TSXAEZ802 into an available slot on the TSX Micro rack. Ensure the module is properly seated. Secure it with the retaining screws. Verify that the module sits firmly in the rack. Finally, ensure adequate clearance for wiring access.
Connect your analog sensors to the terminal block. Use shielded twisted-pair cables for all analog signal wiring. Proper grounding reduces noise and ensures signal accuracy. Connect the shield to the ground terminal. Tighten all connections securely.
Configure the TSXAEZ802 within your programming software. Select the appropriate input type for each channel. Choose between 4-20mA and 0-20mA. Set the scaling parameters as needed. Download the configuration to the PLC.
After installation, test all channels. Apply known current signals to each input. Verify that the readings are accurate. Adjust scaling parameters if necessary. This systematic approach ensures reliable system operation.
Unit Type of Package: PCE
Package 1 Height: 5.000 cm
Package 1 Width: 8.500 cm
Package 1 Length: 12.000 cm
Package 1 Weight: 0.200 kg
We ship this item using premium courier services. Delivery will be handled by Fedex, UPS, or DHL. The module is packaged securely to prevent damage during transit. International shipping is available. Additionally, tracking information will be provided immediately after dispatch.
The TSXAEZ802 provides 8 analog input channels. This high channel density makes it suitable for applications requiring multiple analog measurements.
The TSXAEZ802 accepts 4-20mA and 0-20mA current signals. This compatibility covers most industrial sensors and transmitters.
The TSXAEZ802 features 12-bit analog-to-digital conversion. This resolution ensures precise signal measurement and control.
The TSXAEZ802 has an acquisition period of 32 ms. This fast update rate ensures timely data for your control applications.
Yes, the TSXAEZ802 comes complete with a removable terminal block. This design simplifies wiring and maintenance.
| Brand Name | |
| Model No. | TSXAEZ802 |
| Product Type | Analog Input Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
