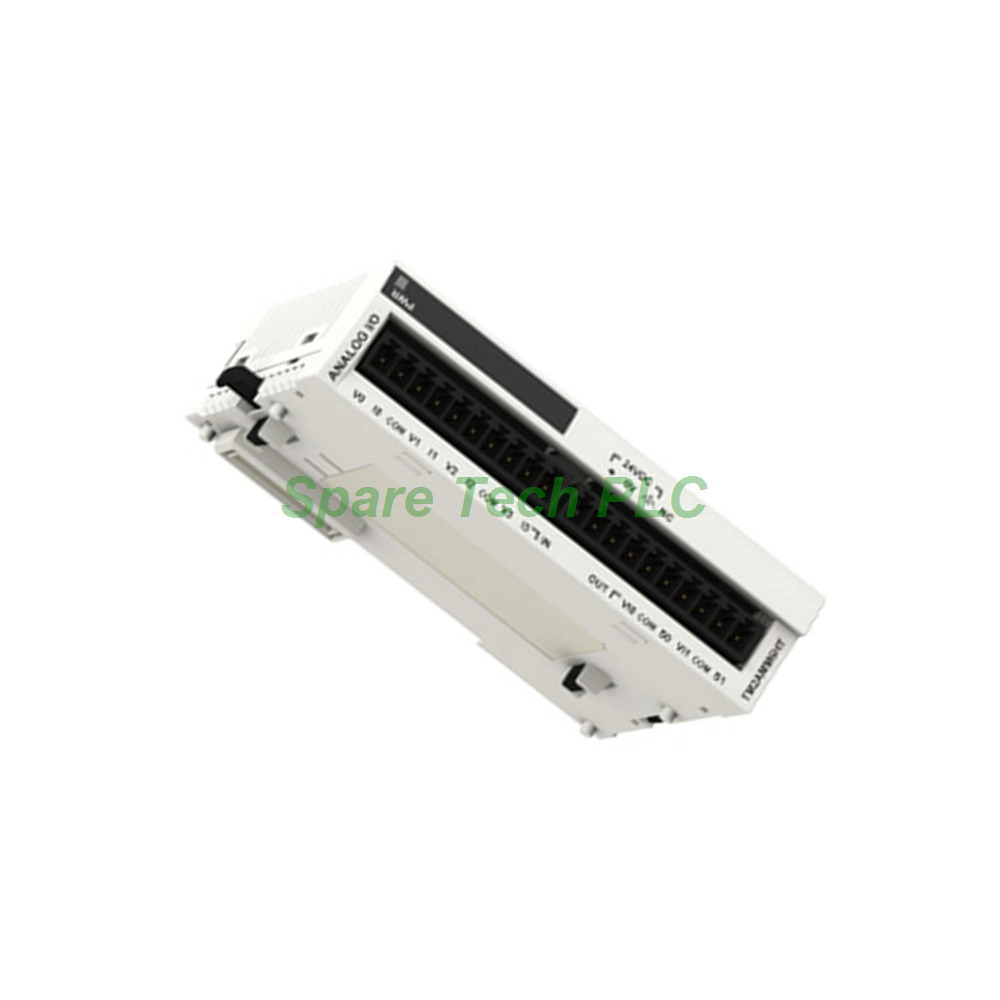

The Schneider Electric TM2AMM6HT is a versatile analog I/O module designed for the Modicon M238 logic controller. It also offers compatibility with Twido and Advantys OTB platforms. This compact module features 4 analog inputs and 2 analog outputs. It handles both voltage (0-10V) and current (4-20mA) signal types. Moreover, the TM2AMM6HT delivers 12-bit resolution for precise analog measurements. Its photocoupler insulation ensures reliable signal isolation between channels and the internal logic. Therefore, it is ideal for process control, monitoring, and automation applications.
The TM2AMM6HT offers 4 non-differential analog inputs. These inputs support high-level voltage and current signals. Specifically, they accept 0-10V voltage and 4-20mA current. The permissible continuous overload is 13V for voltage inputs and 40mA for current inputs. The input impedance is >= 1 Ohm for voltage and <= 250 MOhm for current. The acquisition period is 16 ms per channel plus one controller cycle time. Consequently, the module delivers reliable and stable input readings.
The TM2AMM6HT provides 2 analog outputs. These outputs support both voltage (0-10V) and current (4-20mA) types. The output resolution is 12 bits. The load impedance must be >= 2000 Ohm for voltage outputs and <= 300 Ohm for current outputs. The stabilization time is 20 ms. The conversion time is 20 ms plus one controller cycle time. The output error is +/- 1% of full scale. Therefore, the outputs deliver consistent and dependable analog signals to connected field devices.
The TM2AMM6HT uses a 12-bit analog-to-digital and digital-to-analog converter. The LSB value is 2.5 mV for voltage and 4 µA for current. The measurement error is +/- 0.5% of full scale at 25°C for both voltage and current. The repeat accuracy is +/- 0.5% FS for inputs and +/- 1% FS for outputs. The non-linearity is +/- 0.4% FS for both current and voltage. The total error is +/- 1.5% FS. The temperature coefficient is +/- 0.02% FS/°C. These specifications ensure precise analog signal processing.
The TM2AMM6HT features reliable isolation between channels and the internal logic. It uses a photocoupler for this purpose. The dielectric strength is 1500V between I/O and the external supply circuit, and 800V between I/O channels. This isolation protects the controller from electrical noise. The crosstalk is <= 2 LSB. The output ripple is <= 1 LSB. These features ensure signal integrity in noisy industrial environments.
The TM2AMM6HT requires an external 24V DC power supply. The supply voltage limits are 19.2 to 30V. The rated supply voltage is 24V DC. The module consumes 60 mA from the 5V DC internal supply and 80 mA from the 24V DC external supply. Therefore, it draws minimal power from your control system. This low power consumption reduces overall energy costs.
The TM2AMM6HT has a compact form factor. Its width is 23.5 mm, height is 90 mm, and depth is 70 mm. The module weighs only 0.085 kg. This compact design saves valuable panel space. It is suitable for installations with limited cabinet space. Furthermore, its lightweight construction reduces strain on the mounting rail.
The TM2AMM6HT operates reliably in various industrial environments. The ambient air temperature for operation ranges from 0°C to 55°C. The storage temperature range is -25°C to 70°C. The module withstands relative humidity from 10% to 95% without condensation. Its IP20 protection rating ensures safe installation in protected cabinets.
The TM2AMM6HT is compatible with the Modicon M238 logic controller. It also works with Twido and Advantys OTB systems. The module mounts on a standard DIN rail. It uses a removable screw terminal block for electrical connections. This design simplifies installation and maintenance. Therefore, it offers flexibility for various automation architectures.
The TM2AMM6HT requires shielded cables for analog signal connections. Shielded cables minimize electromagnetic interference. They ensure accurate signal transmission. Use proper cable management practices. This approach preserves signal integrity and system reliability.
First, mount the TM2AMM6HT onto a standard DIN rail. Ensure the rail is securely attached to your cabinet. Next, clip the module into place until the latch engages. Verify that the module sits firmly on the rail. Finally, ensure adequate spacing for ventilation and wiring access.
Connect the 24V DC external power supply to the designated terminals. Wire the analog input devices to the appropriate input terminals. Connect the analog output devices to the output terminals. Use shielded cables for all analog signal wiring. Proper grounding reduces noise and ensures signal accuracy.
Configure the TM2AMM6HT within your programming software. Select the appropriate input and output types for each channel. Choose between voltage and current modes. Set the scaling parameters as needed. Finally, download the configuration to the controller and verify proper operation.
After installation, test all inputs and outputs. Verify that the analog readings are accurate. Check the output signals with appropriate measuring instruments. Adjust configuration parameters if necessary. This systematic approach ensures reliable system operation.
Unit Type of Package: PCE
Package 1 Height: 3.600 cm
Package 1 Width: 4.800 cm
Package 1 Length: 7.600 cm
Package 1 Weight: 0.085 kg
We ship this item using premium courier services. Delivery will be handled by Fedex, UPS, or DHL. The module is packaged securely to prevent damage during transit. International shipping is available. Additionally, tracking information will be provided immediately after dispatch.
The TM2AMM6HT supports voltage (0-10V) and current (4-20mA) signals for both inputs and outputs. This versatility makes it suitable for various analog applications.
The TM2AMM6HT offers 12-bit resolution for both inputs and outputs. This ensures precise analog signal conversion for accurate process control.
The TM2AMM6HT is compatible with Modicon M238 logic controllers, Twido programmable controllers, and Advantys OTB distributed I/O systems.
You should use shielded cables for all analog signal connections. Shielded cables reduce electromagnetic interference and ensure signal accuracy.
The TM2AMM6HT has a crosstalk of <= 2 LSB. This low crosstalk ensures minimal interference between adjacent channels.
| Brand Name | |
| Model No. | TM2AMM6HT |
| Product Type | Analog I/O Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
