Schneider TCSESM083F2CS0 Managed Switch

ConneXium Managed Ethernet Switch TCSESM083F2CS0

Product Introduction

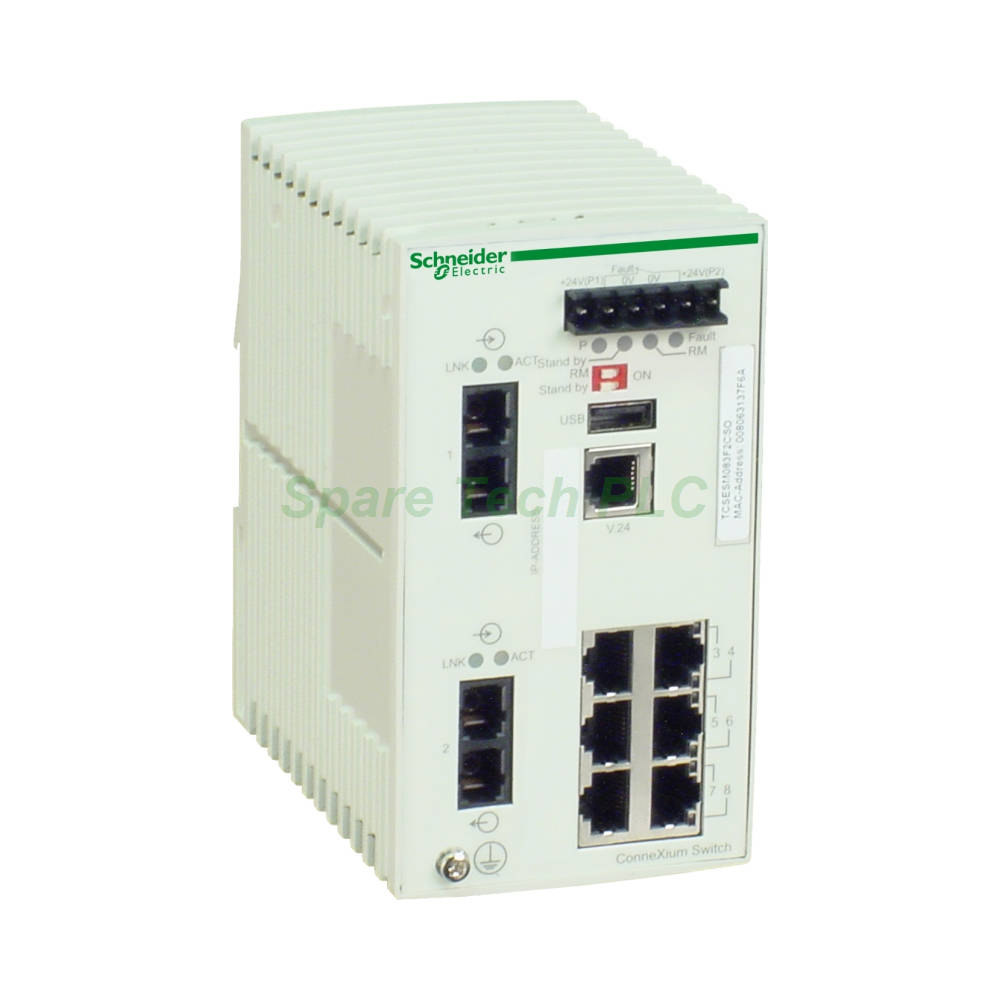

The TCSESM083F2CS0 is a managed Ethernet switch from the Schneider Electric ConneXium family. It offers six copper ports and two single-mode fiber ports in one DIN rail unit. This mix suits industrial networks that need many local connections plus long-distance fiber links. Moreover, the switch follows the Transparent Ready concept for open, standards-based communication. Therefore, it fits factory automation, SCADA, and infrastructure projects.

Technical Specifications

First, this unit is a managed Layer 2 switch. It provides 6 x RJ45 10/100BASE-TX copper ports. Additionally, it includes 2 x 100BASE-FX single-mode fiber ports with SC connectors. The fiber links allow cable runs over several kilometers. This helps connect distant cabinets, buildings, or remote panels.

The switching capacity reaches 5.6 Gbps. Besides, the MAC table holds 8K entries for smooth address handling. Jumbo frame support goes up to 9216 bytes, which helps with large data packets. Furthermore, the device supports many protocols. These include Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, LLDP, Telnet, and SNTP.

Redundancy and Security Features

Network reliability is a core strength of the TCSESM083F2CS0. Specifically, it supports HiPER ring and RSTP for fast failover. A single ring can include up to 50 nodes, which suits medium and large networks. Meanwhile, MRP (Media Redundancy Protocol) adds compatibility with other industrial ring systems.

For cybersecurity, the switch offers port hardening. This feature limits unauthorized access at the port level. In addition, HTTPS and SSH protect management traffic. Therefore, engineers can configure and monitor the device securely. The unit also supports RS232 for local console access.

Electrical and Mechanical Parameters

The supply voltage is 24V DC. This matches common industrial power standards. The operating temperature ranges from 0 to 60 °C. Moreover, the protection rating is IP20, so the switch belongs inside a control cabinet.

The device mounts on a 35 mm symmetrical DIN rail. This standard rail makes installation quick and tool-free. The compact housing saves valuable panel space. Meanwhile, the metal body helps with heat dissipation and long-term durability.

Installation Guide

Next, follow these steps for a smooth setup. First, snap the switch onto a 35 mm DIN rail inside the cabinet. Ensure enough clearance for airflow and cable bending. Then, connect the 24V DC power supply to the correct terminals. Check the polarity before powering up.

For copper links, use standard RJ45 cables for the 10/100BASE-TX ports. For fiber links, connect single-mode SC cables to the fiber ports. Keep the fiber bend radius within the cable maker's limits. After wiring, access the web interface through any copper port. Configure the ring topology, IP address, and security settings. Finally, test redundancy by disconnecting one ring path. The network should recover without data loss.

Packaging List

1× Schneider TCSESM083F2CS0 Managed Switch
1× DIN Rail Mounting Clip
1× Quick Start Guide
1× Terminal Block for Power

Shipping

We ship orders through Fedex, UPS, and DHL. Each switch packs in an anti-static bag with protective foam. Tracking details go out within one business day.

FAQ

Q1: How many ports does the TCSESM083F2CS0 provide?
A: It offers 6 copper RJ45 ports and 2 single-mode fiber ports. This suits networks needing many local links.

Q2: Does this switch support ring redundancy?
A: Yes. It supports HiPER ring and RSTP. One ring can hold up to 50 nodes.

Q3: What is the power supply requirement?
A: The TCSESM083F2CS0 runs on 24V DC. This matches most industrial control cabinets.

Q4: Can I manage this switch remotely?
A: Yes. It supports SNMP, HTTPS, SSH, and Telnet. These tools allow remote monitoring and configuration.

Q5: Is the fiber port single-mode or multi-mode?
A: The fiber ports are single-mode 100BASE-FX with SC connectors. They support long-distance links.
