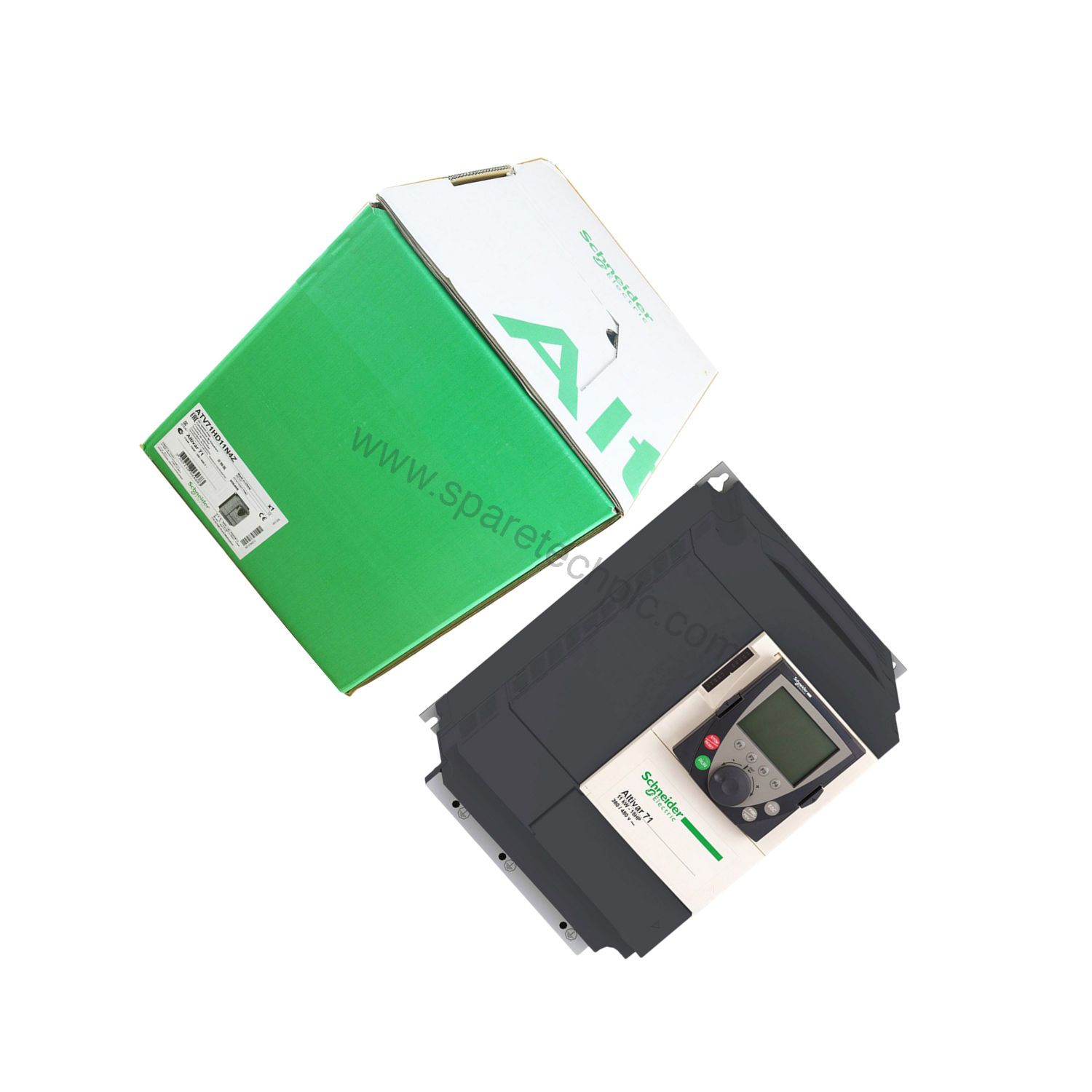

ATV71HD18N4 | Schneider Electric Altivar 71 Variable Speed Drive 18.5 kW

The ATV71HD18N4 is a variable-speed drive by Schneider Electric designed for effective motor control. With a power capacity of 5 kW (25 hp), it operates within a frequency range of 47 to 63 Hz, accommodating various applications.Technical specifications for ATV71HD18N4 Manufacturer Schneider Electric Product Type Variable Speed Drive Product Line Altivar 71 Part Number ATV71HD18N4 EAN 3389118064386 Weight 33.00 lbs (14.97 kg) Motor Power 5 kW / 25 hp Frequency 47 - 63 Hz Voltage Rating 380 - 480 V AC Phase 3-phase IP Protection Rating IP20 EMC Filter Integrated Storage Temperature -25 to 70°C Operating Temperature Typically 0 to 50°C (standard for Altivar 71) Description The Schneider Electric ATV71HD18N4 is a robust variable-speed drive that effectively manages motor performance. It delivers a power output of 5 kW (equivalent to 25 horsepower) and operates efficiently within a frequency range spanning 47 to 63 Hz, making it suitable for diverse industrial applications. With a voltage rating of 380 to 480 V AC, this drive supports 3-phase connections, ensuring compatibility with various motor setups.This unit incorporates an Overview Interface, allowing for straightforward interaction. It maintains an IP20 protection rating, indicating its suitability for dry indoor environments. Within the design is an integrated EMC filter that minimizes electromagnetic interference, enhancing the drive's reliability in demanding settings.This drive model weighs 6.77 kilograms and functions optimally at 0 to 50°C. For storage, it can endure temperatures as low as -25°C and as high as 70°C, providing operational flexibility in various environmental conditions. The ATV71HD18N4 drive combines essential features for effective motor control in an efficient, compact package.Range of Product Altivar 71 Product or Component Type Variable speed drive Product Specific Application Complex, high-power machines Component name ATV71 Motor power kW 18.5 kW, 3 phase 380...480 V Maximum Horse Power Rating 25 hp, 3 phase 380...480 V Maximum motor cable length 164.04 ft (50 m) shielded cable 328.08 ft (100 m) unshielded cable power supply voltage 380...480 V - 15...10 % Phase 3 phase Line current 37.5 A 480 V 3 phase 18.5 kW / 25 hp 45.5 A 380 V 3 phase 18.5 kW / 25 hp EMC filter Integrated Assembly style With heat sink Apparent power 29.9 kVA 380 V 3 phase 18.5 kW / 25 hp Prospective line Isc 22 kA 3 phase Nominal output current 34 A 4 kHz 460 V 3 phase 18.5 kW / 25 hp 41 A 4 kHz 380 V 3 phase 18.5 kW / 25 hp Maximum transient current 61.5 A 60 s 3 phase 18.5 kW / 25 hp 67.7 A 2 s 3 phase 18.5 kW / 25 hp Output frequency 0.1…599 Hz Nominal switching frequency 4 kHz Switching frequency 1...16 kHz adjustable 4...16 kHz with derating factor Asynchronous motor control profile Voltage/frequency ratio (2 or 5 points) Sensorless flux vector control (SFVC) (voltage or current vector) Flux vector control (FVC) with sensor (current vector) ENA (Energy adaptation) system for unbalanced loads Type of polarization No impedance Modbus Complementary Product destination Synchronous motors Asynchronous motors power supply voltage limits 323…528 V power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz Speed range 1…100 asynchronous motor in open-loop mode, without speed feedback 1…1000 asynchronous motor in closed-loop mode with encoder feedback 1…50 synchronous motor in open-loop mode, without speed feedback Speed accuracy +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn Torque accuracy +/- 15 % in open-loop mode, without speed feedback +/- 5 % in closed-loop mode with encoder feedback Transient overtorque 170 % +/- 10 % 60 s every 10 minutes 220 % +/- 10 % 2 s Braking torque <= 150 % with braking or hoist resistor 30 % without braking resistor Synchronous motor control profile Vector control without speed feedback Regulation loop Adjustable PI regulator Motor slip compensation Suppressable Not available in voltage/frequency ratio (2 or 5 points) Adjustable Automatic whatever the load diagnostic 1 LED (red) for drive voltage Output voltage <= power supply voltage Insulation Electrical between power and control type of cable for mounting in an enclosure With a NEMA Type1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Electrical connection Terminal 2.5 mm², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal 35 mm², AWG 2 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) Tightening torque 5.3 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) 47.8 lbf.in (5.4 N.m), 47.7 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) Supply Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection Analogue input number 2 Analogue input type AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign AI2 software-configurable current 0...20 mA 242 Ohm 11 bits AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits input sampling time 2 ms +/- 0.5 ms AI1-/Al1+) - analog 2 ms +/- 0.5 ms Al2) - analog 2 ms +/- 0.5 ms LI1...LI5) - discrete 2 ms +/- 0.5 ms LI6)if configured as logic input - discrete Response time <= 100 ms in STO (Safe Torque Off) AO1 2 ms +/- 0.5 ms analog R1A, R1B, R1C 7 ms +/- 0.5 ms discrete R2A, R2B 7 ms +/- 0.5 ms discrete absolute accuracy precision +/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C +/- 0.6 % AI2) for a temperature variation 60 °C +/- 1 % AO1) for a temperature variation 60 °C Linearity error +/- 0.15 % of maximum value AI1-/Al1+, AI2) +/- 0.2 % AO1) Analogue output number 1 Analogue output type AO1 software-configurable logic output 10 V 20 mA AO1 software-configurable current 0...20 mA 500 Ohm 10 bits AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits Discrete output number 2 Discrete output type Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles Configurable relay logic R2A, R2B) NO - 100000 cycles Minimum switching current 3 mA 24 V DC configurable relay logic Maximum switching current R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R1, R2 5 A 250 V AC resistive, cos phi = 1 R1, R2 5 A 30 V DC resistive, cos phi = 1 Discrete input number 7 Discrete input type LI1...LI5 programmable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable PTC probe 0…6 1500 Ohm PWR safety input 24 V DC 1500 Ohm ISO 13849-1 level d Discrete input logic Negative logic (sink) LI1...LI5), > 16 V, < 10 V Positive logic (source) LI1...LI5), < 5 V, > 11 V Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V Acceleration and deceleration ramps S, U or customized Linear adjustable separately from 0.01 to 9000 s Automatic adaptation of ramp if braking capacity exceeded, by using resistor Braking to standstill By DC injection Protection type Against exceeding limit speed drive Against input phase loss drive Break on the control circuit drive Input phase breaks drive Line supply overvoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Overvoltages on the DC bus drive Short-circuit between motor phases drive Thermal protection drive Motor phase break motor Power removal motor Thermal protection motor Insulation resistance > 1 mOhm 500 V DC for 1 minute to earth Frequency resolution Analog input 0.024/50 Hz Display unit 0.1 Hz Communication Port Protocol Modbus CANopen Connector type 1 RJ45 on front face)Modbus 1 RJ45 on terminal)Modbus Male SUB-D 9 on RJ45CANopen Physical interface 2-wire RS 485 Modbus Transmission frame RTU Modbus Transmission rate 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal 9600 bps, 19200 bps Modbus on front face 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen Data format 8 bits, 1 stop, even parity Modbus on front face 8 bits, odd even or no configurable parity Modbus on terminal Number of addresses 1…127 CANopen 1…247 Modbus Method of access Slave CANopen Marking CE Operating position Vertical +/- 10 degree Height 15.7 in (400 mm) Depth 8.4 in (213 mm) Width 9.06 in (230 mm) Net Weight 33.07 lb(US) (15 kg) Functionality Full Specific application Other applications Option card Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Interface card for encoder Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Overhead crane card Communication card Profibus DP Communication card Profibus DP V1 Environment Noise level 60.2 dB 86/188/EEC Dielectric strength 3535 V DC between earth and power terminals 5092 V DC between control and power terminals Electromagnetic compatibility 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Standards IEC 61800-3 environments 1 category C3 EN 55011 class A group 2 IEC 61800-3 IEC 60721-3-3 class 3C1 IEC 60721-3-3 class 3S2 IEC 61800-3 environments 2 category C3 IEC 61800-5-1 UL Type 1 Product Certifications CSA GOST C-tick NOM 117 UL Pollution degree 2 IEC 61800-5-1 IP degree of protection IP20 Vibration resistance 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance 15 gn 11 ms IEC 60068-2-27 Relative humidity 5…95 % without condensation IEC 60068-2-3 5…95 % without dripping water IEC 60068-2-3 Ambient air temperature for operation 14…122 °F (-10…50 °C) (without derating) Ambient Air Temperature for Storage -13…158 °F (-25…70 °C) Operating altitude <= 3280.84 ft (1000 m) without derating 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m Ordering and shipping details Category US1CP4C22131 Discount Schedule CP4C GTIN 3389118064386 Returnability Yes Packing Units Unit Type of Package 1 PCE Nbr. of units in pkg. 1 Package 1 Height 13.8 in (35.0 cm) Package 1 Width 23.6 in (60.0 cm) Package 1 Length 15.8 in (40.1 cm) Package weight(Lbs) 53.934 lb(US) (24.464 kg)
SpareTech PLC provides you with a PDF version of the instructions about N/A ATV71HD18N4, where you can download the N/A ATV71HD18N4 manual PDF for free：
Download PDF
