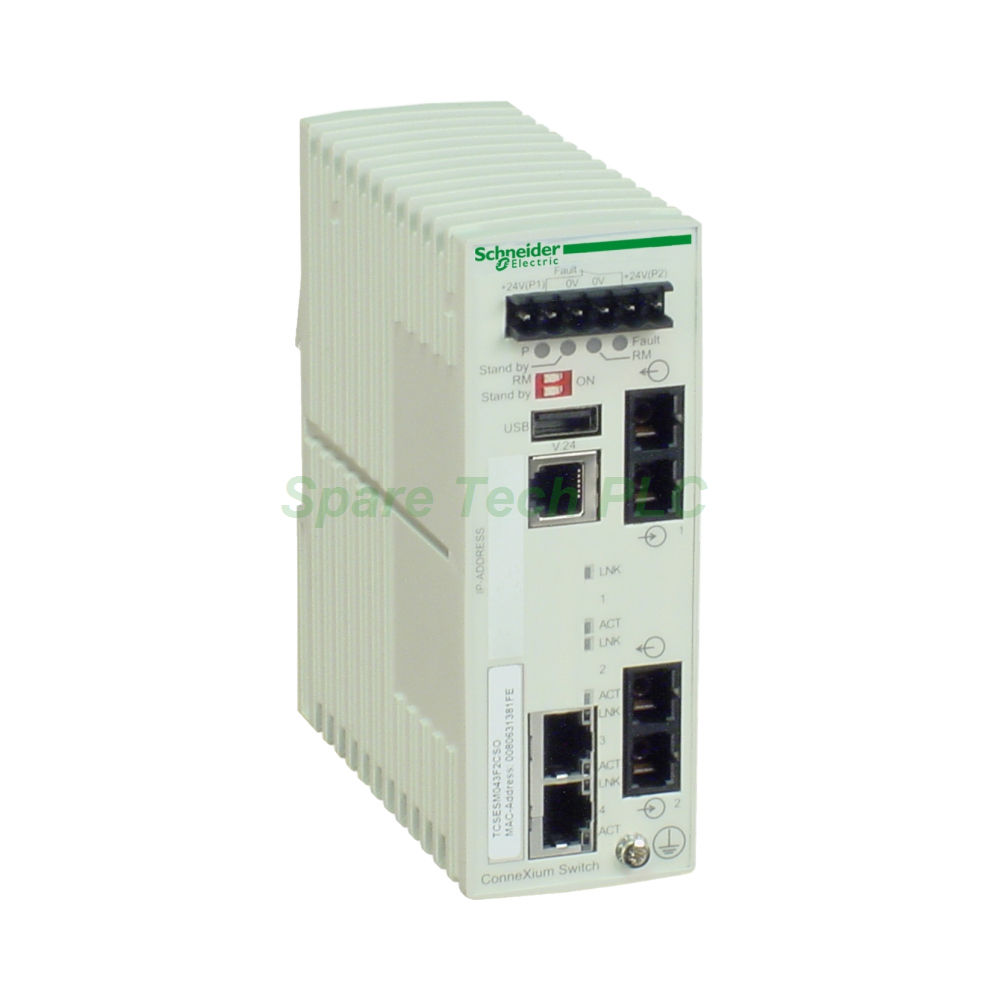

The TCSESM043F2CS0 is a managed Ethernet switch from the Schneider Electric ConneXium range. It combines copper and fiber connectivity in one compact DIN rail unit. This design suits industrial networks that need long-distance links and strong redundancy. Moreover, the switch follows the Transparent Ready concept for open communication. Therefore, it works well in factory automation, SCADA, and substation environments.
First, this device is a Layer 2 managed switch. It provides 2 x RJ45 10/100BASE-TX copper ports. Additionally, it offers 2 x 100BASE-FX single-mode fiber ports with SC duplex connectors. The fiber ports allow cable runs over several kilometers, which helps connect distant cabinets or buildings.
The switching capacity reaches 5.6 Gbps. Besides, the MAC table holds 8K entries for efficient address handling. Jumbo frame support goes up to 9216 bytes, useful for large data packets. Furthermore, the unit supports many protocols, including Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, LLDP, Telnet, and SNTP.
Network reliability is a key strength of the TCSESM043F2CS0. Specifically, it supports HiPER ring and RSTP for fast failover. A single ring can include up to 50 nodes, which suits medium to large networks. Meanwhile, MRP (Media Redundancy Protocol) adds compatibility with other industrial ring systems.
For cybersecurity, the switch offers port hardening. This feature limits unauthorized access at the port level. In addition, HTTPS and SSH protect management traffic. Therefore, engineers can configure and monitor the device securely.
The supply voltage is 24V DC, with a wide range of 9.6 to 32V DC. This flexibility helps in plants where voltage varies. The operating temperature ranges from 0 to 60 °C. Moreover, the protection rating is IP20, so the switch belongs inside a control cabinet.
The housing measures 47 × 131 × 111 mm (H×W×D). It mounts on a 35 mm symmetrical DIN rail. The compact width saves valuable panel space. Meanwhile, the metal housing helps with heat dissipation and durability.
Next, follow these steps for a smooth installation. First, snap the switch onto a 35 mm DIN rail inside the cabinet. Ensure enough clearance for airflow and cable bending. Then, connect the 24V DC power supply to the correct terminals. Check the polarity before powering up.
For copper links, use standard RJ45 cables for the 10/100BASE-TX ports. For fiber links, connect single-mode SC duplex cables to the fiber ports. Keep fiber bend radius within the cable maker's limits. After wiring, access the web interface through the Ethernet port. Configure the ring topology, IP address, and security settings. Finally, test redundancy by disconnecting one ring path. The network should recover without data loss.
1× Schneider TCSESM043F2CS0 Managed Switch
1× DIN Rail Mounting Clip
1× Quick Start Guide
1× Terminal Block for Power
We ship orders through Fedex, UPS, and DHL. Each switch packs in an anti-static bag with protective foam. Tracking details go out within one business day.
Q1: What makes the TCSESM043F2CS0 a managed switch?
A: It supports SNMP, HTTPS, SSH, and ring protocols. These features allow remote monitoring and configuration.
Q2: How far can the single-mode fiber ports reach?
A: The 100BASE-FX single-mode ports support long-distance links. Exact distance depends on the fiber module and cable quality.
Q3: Does this switch support ring redundancy?
A: Yes. It supports HiPER ring and RSTP. One ring can hold up to 50 nodes.
Q4: What is the power supply requirement?
A: The TCSESM043F2CS0 runs on 24V DC. The accepted range is 9.6 to 32V DC.
Q5: Can I mount this switch outdoors?
A: No. The IP20 rating suits indoor cabinets only. Use a proper enclosure for harsh environments.
| Brand Name | |
| Model No. | TCSESM043F2CS0 |
| Product Type | Managed Ethernet Switch |
