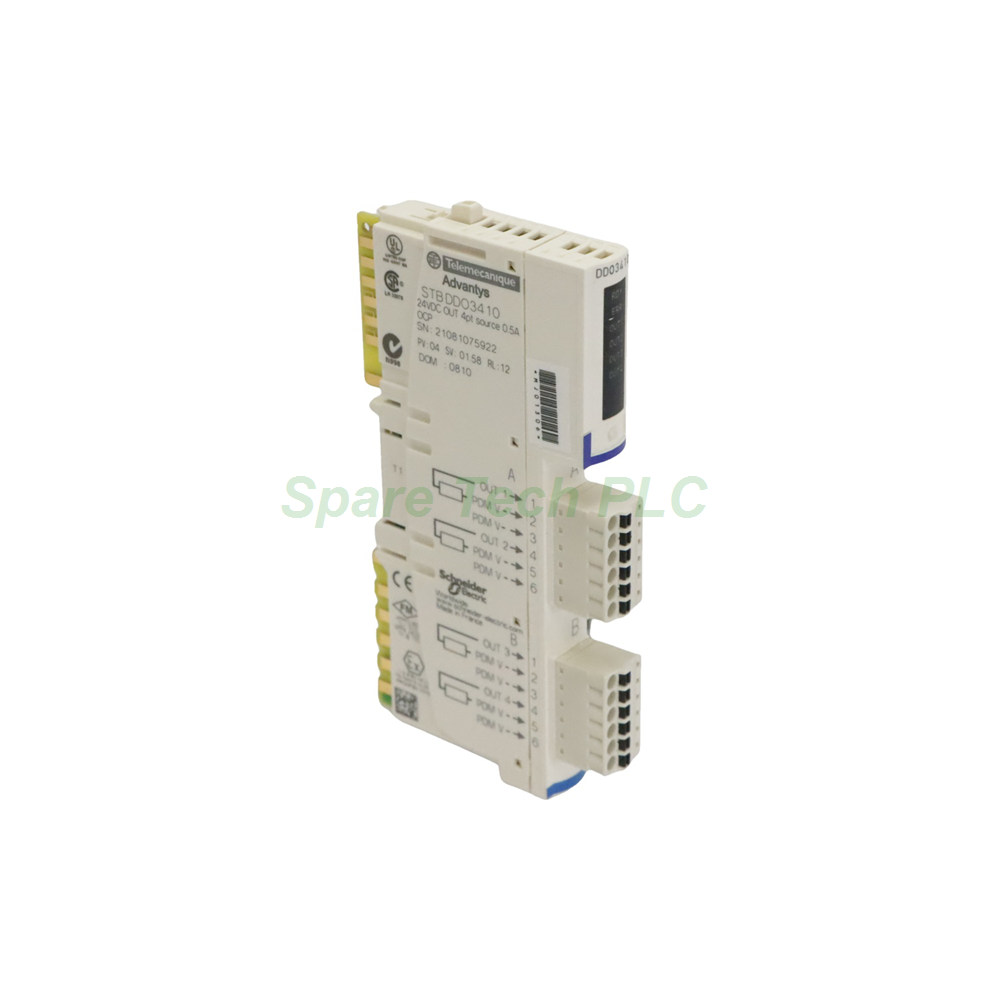

Schneider STBDDO3410 Digital Output Module

Product Introduction

The STBDDO3410 is a standard digital output module designed for the Schneider Electric Advantys STB distributed I/O platform. This 4-channel solid-state output kit delivers reliable 24V DC switching for industrial automation applications. Furthermore, it supports both source and sink wiring configurations, offering flexibility during system design.

Technical Specifications and Output Capability

The STBDDO3410 module provides four discrete output channels with a rated current of 0.5 A per channel. Moreover, each output operates at a nominal voltage of 24V DC, with an allowable range between 19.2V and 30V DC. Additionally, the module features a response time of 560 µs for off-to-on transitions and 870 µs for on-to-off transitions. This solid-state design ensures long operational life without mechanical wear.

Protection remains a critical design element for the STBDDO3410. Specifically, the module incorporates electronic overcurrent protection, short-circuit protection, and thermal overload safeguards. Besides, the isolation rating between field wiring and the logic bus is 1500V DC, ensuring reliable separation of control and power circuits. Meanwhile, a maximum leakage current of 0.4 mA at state 0 minimizes false triggering of connected actuators.

Mechanical and Environmental Data

The STBDDO3410 module mounts on the STBXBA1000 base unit, which measures 13.9 mm in width. The complete assembly operates within an ambient temperature range of 0°C to 60°C. Furthermore, the system maintains functionality at altitudes up to 2000 meters and tolerates relative humidity up to 95% without condensation. The module carries an IP20 protection rating, suitable for installation within control cabinets or protective enclosures.

Installation and Configuration Guidelines

First, install the STBXBA1000 base securely onto a standard DIN rail. Next, position the STBDDO3410 module onto its base until the locking mechanism engages. Then, wire field devices using either the STBXTS1100 screw terminal connector or the STBXTS2100 spring clamp connector provided in the kit.

Additionally, the module supports hot swapping when used with standard NIMs, allowing replacement without removing power from the island. However, hot swap functionality requires proper configuration through the Advantys configuration software. Finally, connect the power distribution module (STBPDT3100) to supply logic power via the 5V DC bus at 70 mA current consumption.

Packaging List

• 1x Schneider STBDDO3410 Digital Output Module

• 1x STBXBA1000 Mounting Base (13.9 mm)

• 1x STBXTS1100 6-Terminal Screw Connector

• 1x STBXTS2100 6-Terminal Spring Clamp Connector

Shipping via Fedex, UPS, or DHL.

FAQ

Q1: What is the difference between the STBDDO3410 module and the STBDDO3410K kit?
The STBDDO3410K is a complete kit containing the STBDDO3410 module, the STBXBA1000 base, and both terminal connector types. The STBDDO3410 module alone serves as a replacement part.

Q2: Can the STBDDO3410 drive both inductive and capacitive loads?
Yes, this output module supports inductive loads up to 500 mH and capacitive loads up to 50 µF, making it suitable for a wide range of actuators.

Q3: What NIM types support hot swapping for this module?
Hot swapping requires standard network interface modules (NIMs). Basic NIMs do not support this feature.

Q4: What is the maximum output voltage tolerance for the STBDDO3410?
The module tolerates an absolute maximum voltage of 56V for a duration of 1.3 ms. Continuous operation should remain within the 19.2V to 30V DC range.

Q5: Which power distribution module is compatible with this output kit?
The recommended PDM is the STBPDT3100 or STBPDT3105, supplying 24V DC field power and 5V DC logic power.
