Schneider STBDDO3705 Digital Output Module | Advantys STB

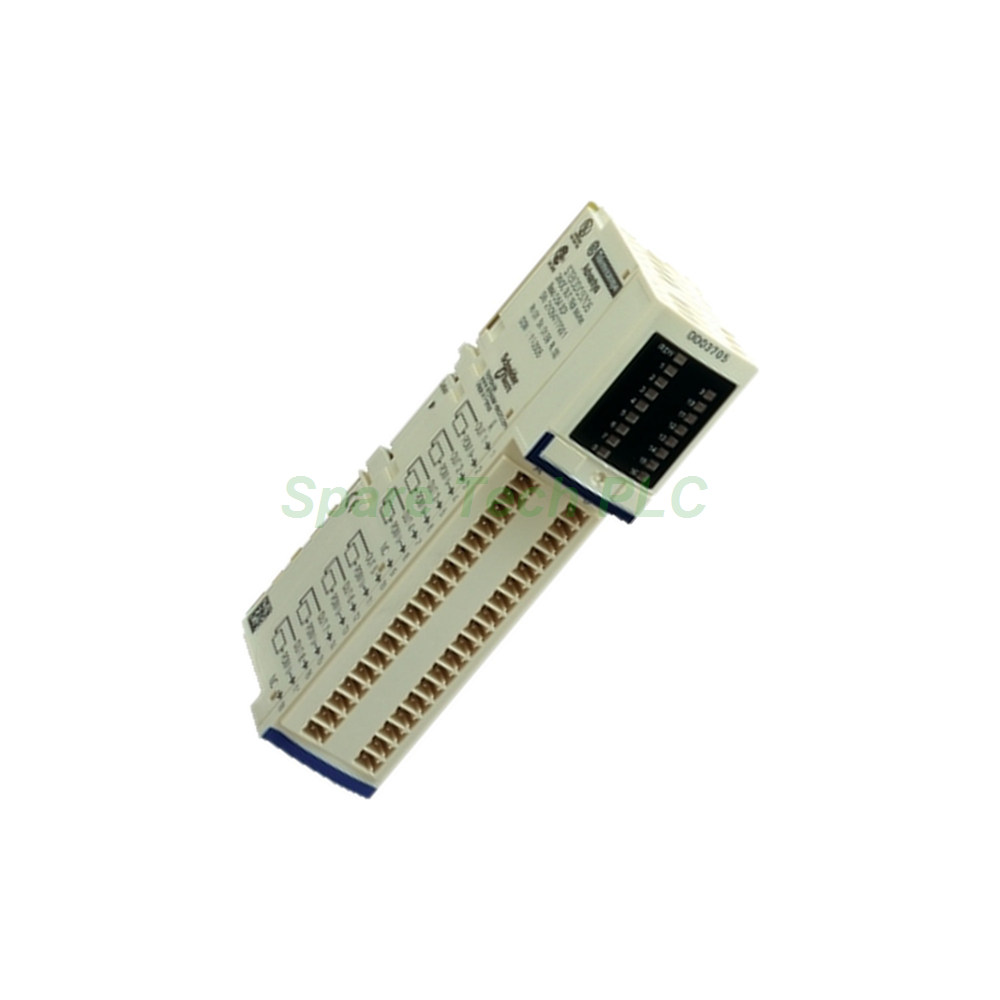

Schneider STBDDO3705 Digital Output Module

Product Introduction

The STBDDO3705 is a basic digital output module designed for the Schneider Electric Advantys STB distributed I/O platform. This 16-channel solid-state module packs dense output capacity into a compact footprint. Furthermore, it uses transistor source outputs, which suit fast switching duties in packaging, assembly, and material handling systems.

Technical Specifications and Output Capability

The STBDDO3705 module provides sixteen discrete output channels. Moreover, all channels operate as source outputs using solid-state transistor technology. Additionally, the nominal signal voltage is 24V DC, matching the standard field power used across the Advantys STB range.

Because the outputs are transistor-based, they contain no moving contacts. Specifically, this design removes mechanical wear and extends operational life under frequent switching cycles. Besides, the module supports hot swapping, so maintenance staff can replace it without cutting power to the whole island.

The basic classification means the STBDDO3705 focuses on straightforward on/off control rather than advanced diagnostics. Meanwhile, it remains fully compatible with the STB backplane and standard network interface modules. Therefore, it works well in distributed architectures where channel density matters more than per-point feedback.

Mechanical and Environmental Data

The STBDDO3705 carries an IP20 protection rating, so it requires installation inside a control cabinet. It receives 24V DC field power through the island power distribution arrangement. Details on operating temperature and storage limits are not available in the current datasheet archive.

Installation and Configuration Guidelines

First, confirm that your island uses a compatible network interface module. Next, snap the module onto its designated base position along the DIN rail. Then, wire the sixteen output channels to field actuators using the correct terminal connectors.

Additionally, verify the 24V DC supply before energizing any connected load. However, hot swap capability depends on the NIM type, so check that feature in advance. Finally, assign output addresses through the Advantys configuration software and test each channel.

Packaging List

• 1x Schneider STBDDO3705 Digital Output Module

• 1x Terminal Connector for Field Wiring

Shipping via Fedex, UPS, or DHL.

FAQ

Q1: What makes the STBDDO3705 a basic module?
The STBDDO3705 provides simple on/off output control without advanced per-channel diagnostics. Standard and extended modules add features like detailed fault reporting.

Q2: Are the outputs relay or transistor type?
All sixteen channels use transistor source outputs. This solid-state approach delivers fast switching and long service life without contact wear.

Q3: Can I replace the STBDDO3705 while the island runs?
Yes, the module supports hot swapping with a compatible standard NIM. Confirm your network interface supports this before attempting replacement.

Q4: How many channels does this module offer?
The STBDDO3705 delivers sixteen output channels at 24V DC. That density suits applications with many simple actuators and limited panel space.

Q5: Is the STBDDO3705 still available from Schneider Electric?
No, Schneider Electric has discontinued this module. The Modicon X80 range now serves as the recommended migration path.
