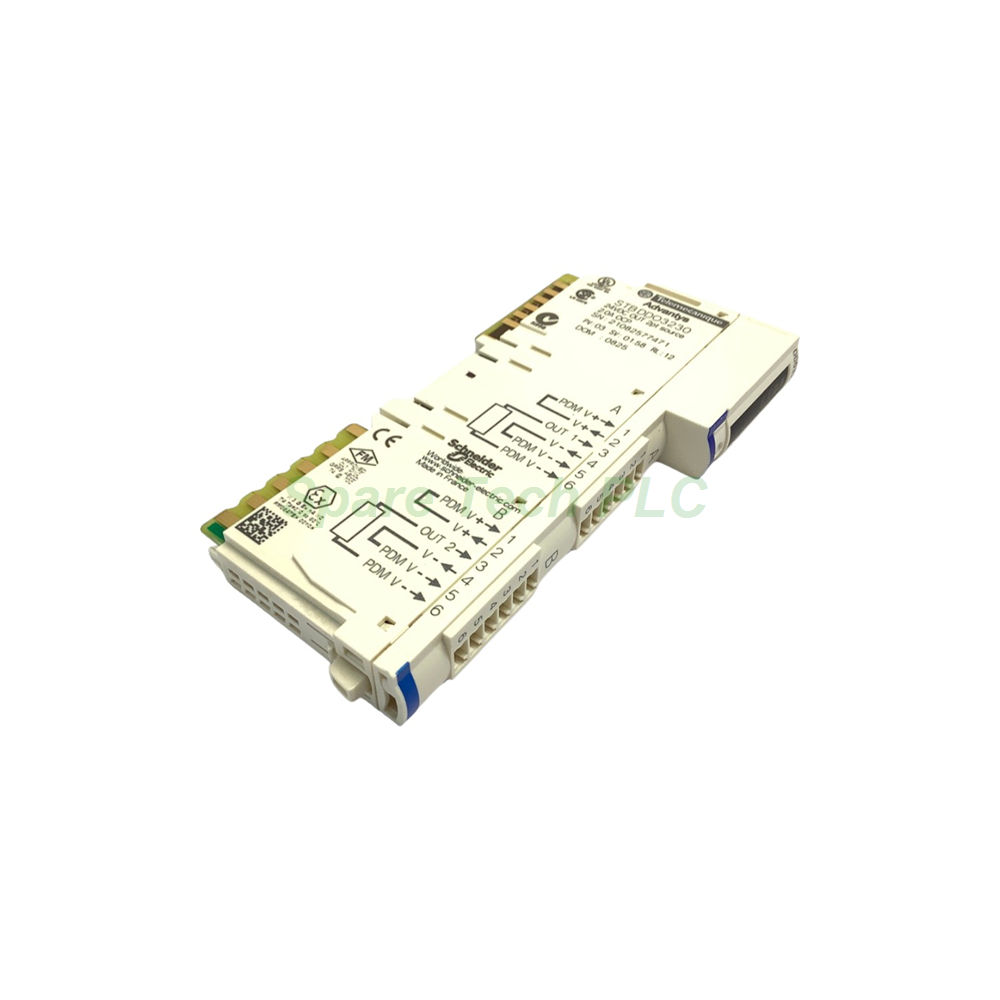

Schneider STBDDO3200 Advantys STB Output Module
The Schneider STBDDO3200 is a 2-channel digital output module from the Advantys STB range. It delivers 24V DC source outputs at 0.5 A per channel with fast response and 1500V DC isolation.
Product Introduction
The STBDDO3230 belongs to Schneider Electric's Advantys STB distributed I/O family. This standard digital output module provides two source-type channels for 24V DC loads. Engineers use it to drive higher-current devices such as solenoids, contactors, and larger actuators. The module offers fast response times and robust output protection. Furthermore, it supports hot swapping so you can replace it without shutting down the system.
Technical Specifications
Output Characteristics
The STBDDO3230 offers two discrete output channels. Each channel delivers 2 A at 24V DC nominal voltage. Specifically, the higher current rating distinguishes it from the 0.5 A module in the same family. Moreover, the source outputs switch positive loads directly without external relays in many cases. As a result, it simplifies wiring for medium-power actuation tasks.
Response Times
The output response time is 520 µs for off-to-on transitions. For on-to-off, the typical response time is 720 µs. Additionally, these fast transitions suit time-sensitive control tasks. Besides, the consistent timing across both channels supports synchronized actuation. Meanwhile, the quick response helps with pulse-width and positioning applications.
Electrical Ratings
The STBDDO3230 draws 80 mA from the 5V DC logic bus. The module receives its 24V DC supply through a power distribution module. For instance, the STBPDT3100 is the recommended PDM for this setup. Furthermore, the output current rating of 2 A per channel covers contactors and solenoid valves. This rating supports demanding loads without extra interposing hardware.
Isolation and Protection
Isolation between field wiring and the logic bus is rated at 1500V DC. In addition, channel-to-channel isolation reaches 500V DC for extra safety. The module provides electronic overcurrent protection on each output. As a result, the STBDDO3230 resists short circuits and overload conditions better than unprotected outputs.
Mechanical and Environmental Parameters
Physical Dimensions
The module uses the STBXBA1000 mounting base, which is 13.9 mm wide. The net weight is 0.116 kg. Additionally, the STBDDO3230 requires this base for installation. Specifically, the base provides the mechanical and electrical interface to the island.
Operating Conditions
The module operates within a temperature range of -25°C to 70°C. For storage, the range extends from -40°C to 85°C. The relative humidity tolerance reaches 95% at 60°C without condensation. Moreover, the module withstands vibration at 3 gn on a 35 x 7.5 mm DIN rail. Shock resistance is rated at 30 gn for 11 ms.
Protection Rating
The STBDDO3230 carries an IP20 protection rating per IEC 61131-2 class 1. Therefore, it suits installation inside control cabinets or protected enclosures. The pollution degree is 2 according to IEC 60664-1. Furthermore, the module operates at altitudes up to 2000 meters.
Installation Guide
Required Components
You need three items to install this module. First, use the STBXBA1000 mounting base. Next, connect a power distribution module such as the STBPDT3100. Finally, use field wiring connectors. The screw-type connector STBXTS1100 or spring clamp STBXTS2100 works well.
Mounting Steps
Begin by snapping the STBXBA1000 base onto a DIN rail. Next, seat the STBDDO3230 onto the base and press firmly until it locks. Then, wire your loads to the connector terminals. After that, attach the connector to the module. Finally, verify the green RDY LED illuminates to confirm proper power-up.
Hot Swapping Procedure
The module supports hot swapping with standard NIMs. However, you must follow safety procedures. First, ensure the system permits live module replacement. Next, release the module from the base. Then, slide the replacement unit into position. Finally, verify all channel LEDs respond correctly.
Packaging List
1 x STBDDO3230 Digital Output Module
Standard protective packaging
FAQ
What does the STBDDO3230 do?
It provides two digital output channels for 24V DC source loads in an Advantys STB island. The 2 A rating drives solenoids, contactors, and larger actuators directly.
Can I replace the STBDDO3230 while the system runs?
Yes, the module supports hot swapping with standard NIMs. However, you must follow your site's safety procedures for live equipment replacement.
What base and PDM does the STBDDO3230 need?
The STBDDO3230 requires the STBXBA1000 mounting base. Additionally, it works with the STBPDT3100 power distribution module.
How does the STBDDO3230 differ from the STBDDO3200?
The STBDDO3230 delivers 2 A per channel instead of 0.5 A. It also adds 500V DC channel-to-channel isolation for higher safety and load capacity.
