Schneider iC60N 1P C6 MCB | Acti9 6A Breaker
Schneider Electric Acti9 iC60N 1P C6 is a single-pole miniature circuit breaker. It provides 6A rated current and C-curve tripping for reliable overload and short-circuit protection.
Product Introduction

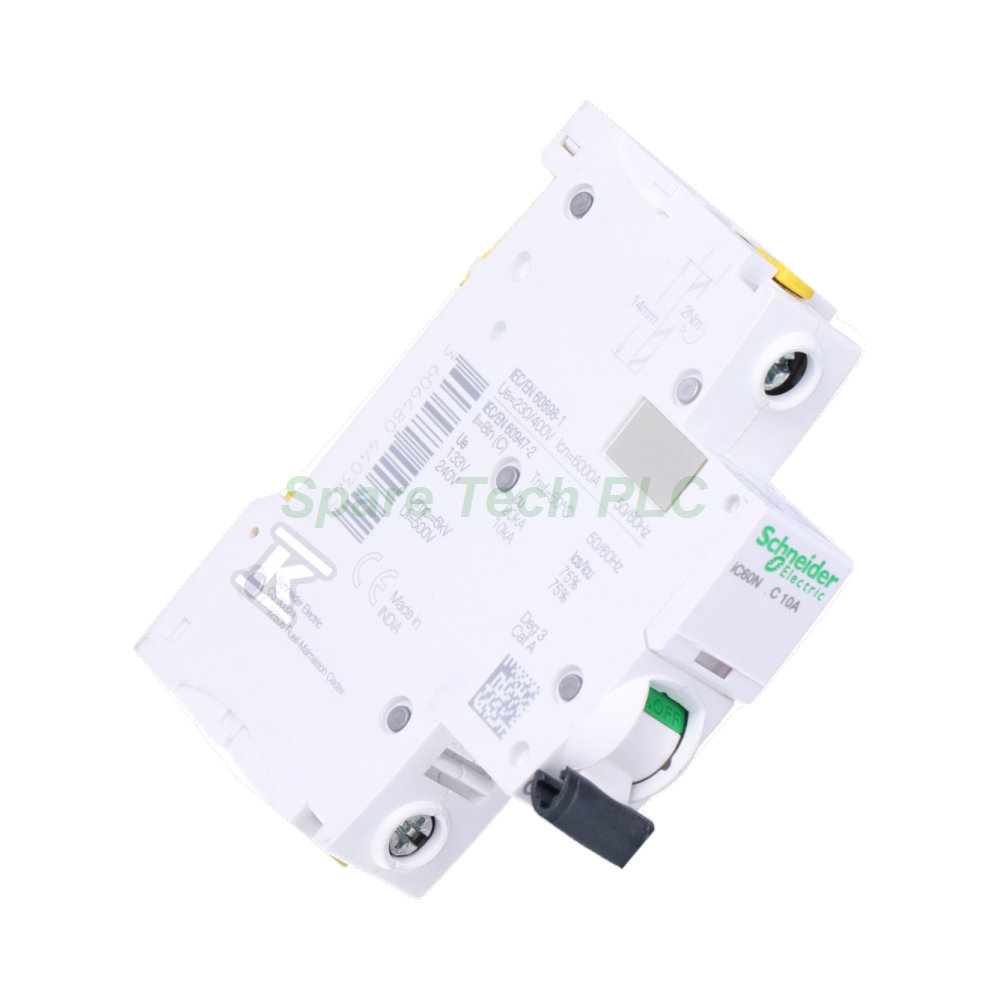

The Acti9 iC60N series from Schneider Electric stands as a trusted solution for electrical circuit protection in commercial and industrial environments. Specifically, the iC60N 1P C10 model provides reliable performance for single-phase circuits that demand accurate overcurrent safeguarding. This miniature circuit breaker merges thermal-magnetic trip technology with a C-curve response, which suits loads presenting moderate inrush currents.
Panel builders and maintenance engineers often choose this device because it combines compact build with strong breaking capacity. Furthermore, the Acti9 iC60N platform accepts a broad range of auxiliary accessories, which streamlines system expansion and remote monitoring.
Electrical Specifications
The iC60N 1P C10 works with a rated current of 10 A and a magnetic trip threshold set at 8×In ±20% . This C-curve profile lets the breaker ride through brief surge currents without unnecessary tripping. For instance, small motors, pumps, and fluorescent lighting banks frequently gain from this response behavior.
Breaking capacity reaches 6 kA at 230/400 V AC under IEC 60898-1 standards, covering residential and similar installations . Meanwhile, industrial applications referencing IEC 60947-2 achieve 10 kA at 220–240 V AC . The rated voltage covers 230/400 V AC and 125 V DC, delivering flexibility for mixed power systems.
Mechanical and Environmental Parameters
Physical dimensions measure 82 × 18 × 78.5 mm, with a weight of roughly 0.1 kg per pole . The single-module width of 18 mm permits efficient use of DIN rail space. Operating temperature spans -35 to 70 °C, ensuring stability in demanding environments. Mechanical life reaches 20,000 cycles, while electrical endurance is rated at 10,000 cycles .
Installation Guide
Mounting this circuit breaker needs a standard 35 mm DIN rail . First, confirm that the supply voltage matches the breaker rating. Next, snap the device onto the rail until it clicks into position. Subsequently, connect incoming and outgoing conductors to the screw terminals with suitable torque. The VisiTrip indicator shows red when the breaker trips, which accelerates fault identification . Additionally, the VisiSafe green strip confirms physical contact opening for safe downstream maintenance .
Packaging List
1 × Schneider Acti9 iC60N 1P C10 Miniature Circuit Breaker
1 × Installation Guide
Shipping Methods: Fedex, UPS, DHL
FAQ
What does the C-curve mean on the iC60N 1P C10?
The C-curve trips magnetically at 5 to 10 times the rated current. This suits inductive loads with moderate startup surges, such as small motors or fluorescent fixtures.
Can I use the iC60N 1P C10 for DC circuits?
Yes, this breaker supports DC applications up to 125 V. However, verify that your system voltage falls within the specified DC rating before installation .
What is the difference between the iC60N and iC60H series?
The iC60N provides 6 kA breaking capacity, while the iC60H offers 10 kA. The N version suits residential and light commercial panels, whereas the H version handles higher fault currents.
How do I identify which breaker has tripped?
Look for the red VisiTrip indicator on the front face. This window turns red after a fault trip, which helps locate the affected circuit quickly .
Does this breaker accept auxiliary contacts?
Yes, the Acti9 iC60 platform supports add-on auxiliaries for remote signaling and monitoring . These accessories snap onto the side of the breaker without additional wiring modifications.
