Schneider Acti9 iC60N 1P C16 Miniature Circuit Breaker
Schneider Electric Acti9 iC60N 1P C16 is a single-pole miniature circuit breaker. It delivers 16A rated current and C-curve tripping for dependable overload and short-circuit protection.
Product Introduction
The Acti9 iC60N series from Schneider Electric delivers dependable circuit protection for commercial buildings and industrial control panels. Specifically, the iC60N 1P C20 model supports single-phase circuits that draw higher currents while needing accurate overcurrent defense. This miniature circuit breaker combines thermal-magnetic trip technology with a C-curve response, which handles loads presenting moderate inrush currents.
Electrical contractors and facility managers frequently choose this device because it balances a slim profile with strong breaking capacity. Furthermore, the Acti9 iC60N platform accepts numerous auxiliary accessories, which eases system expansion and remote monitoring.
Electrical Specifications
The iC60N 1P C20 operates with a rated current of 20 A and a magnetic trip threshold set at 8×In ±20% . This C-curve characteristic allows the breaker to tolerate brief surge currents without nuisance tripping. For instance, small motors, compressors, and workshop socket circuits often benefit from this response behavior.
Breaking capacity reaches 6 kA at 230/400 V AC under IEC 60898-1 standards, covering residential and similar installations . Meanwhile, industrial applications referencing IEC 60947-2 achieve 10 kA at 220–240 V AC . The rated voltage spans 230/400 V AC and 125 V DC, providing flexibility for mixed power systems.
Mechanical and Environmental Parameters

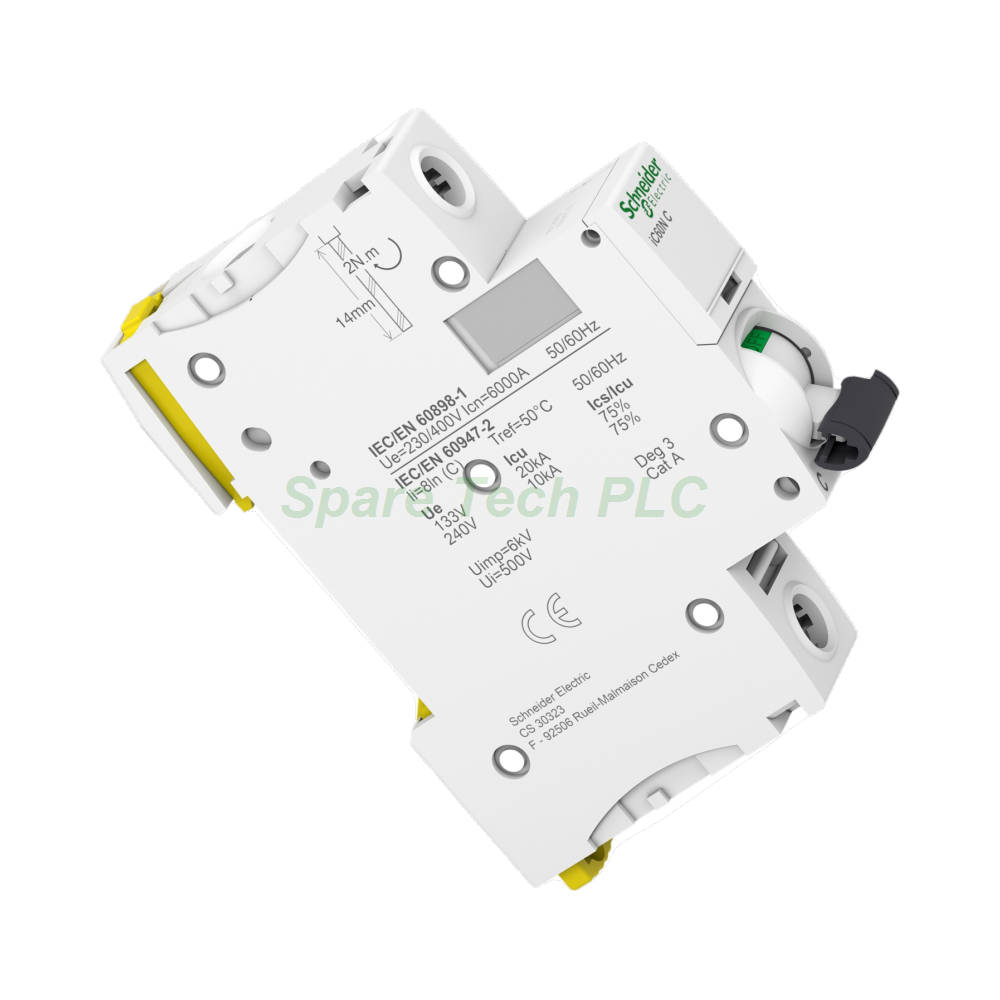

Physical dimensions measure 82 × 18 × 78.5 mm, with a weight of approximately 0.1 kg per pole . The single-module width of 18 mm permits efficient use of DIN rail space. Operating temperature ranges from -35 to 70 °C, ensuring stability in harsh environments. Mechanical life reaches 20,000 cycles, while electrical endurance is rated at 10,000 cycles .
Installation Guide
Mounting this circuit breaker requires a standard 35 mm DIN rail . First, verify that the supply voltage matches the breaker rating. Next, snap the device onto the rail until it clicks into position. Subsequently, connect incoming and outgoing conductors to the screw terminals with appropriate torque. The VisiTrip indicator shows red when the breaker trips, which speeds up fault identification . Additionally, the VisiSafe green strip confirms physical contact opening for safe downstream maintenance .
Packaging List
1 × Schneider Acti9 iC60N 1P C20 Miniature Circuit Breaker
1 × Installation Guide
Shipping Methods: Fedex, UPS, DHL
FAQ
What does the C-curve mean on the iC60N 1P C20?
The C-curve trips magnetically at 5 to 10 times the rated current. This suits inductive loads with moderate startup surges, such as small motors or fluorescent fixtures.
Can I use the iC60N 1P C20 for DC circuits?
Yes, this breaker supports DC applications up to 125 V. However, verify that your system voltage falls within the specified DC rating before installation .
What is the difference between the iC60N and iC60H series?
The iC60N provides 6 kA breaking capacity, while the iC60H offers 10 kA. The N version suits residential and light commercial panels, whereas the H version handles higher fault currents.
How do I identify which breaker has tripped?
Look for the red VisiTrip indicator on the front face. This window turns red after a fault trip, which helps locate the affected circuit quickly .
Does this breaker accept auxiliary contacts?
Yes, the Acti9 iC60 platform supports add-on auxiliaries for remote signaling and monitoring . These accessories snap onto the side of the breaker without additional wiring modifications.
