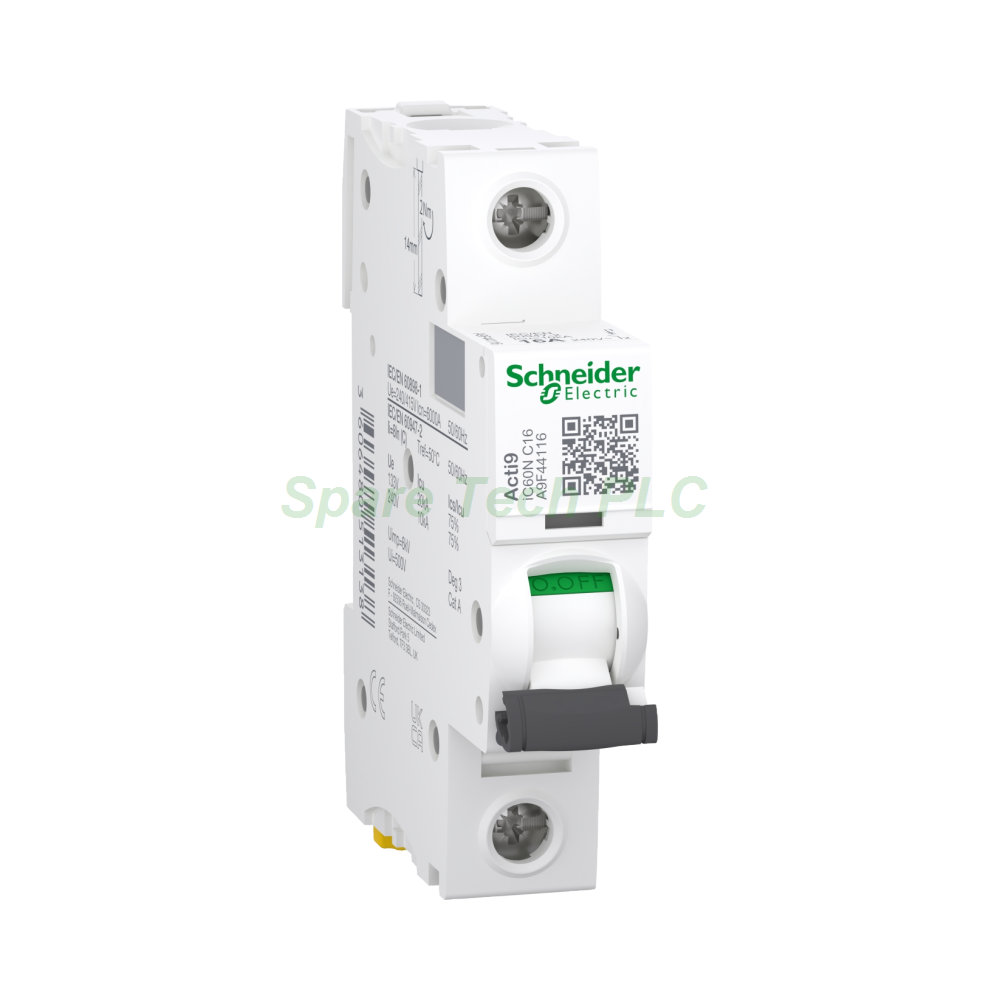

Schneider Acti9 iC60N 1P C16 Miniature Circuit Breaker

Product Introduction

The Acti9 iC60N series from Schneider Electric serves as a reliable foundation for electrical circuit protection across commercial and industrial facilities. Specifically, the iC60N 1P C16 model handles single-phase circuits that require stable overcurrent safeguarding. This miniature circuit breaker pairs thermal-magnetic trip technology with a C-curve response, which accommodates loads with moderate inrush currents.

Panel designers and electrical contractors often pick this device because it merges a compact footprint with solid breaking capacity. Furthermore, the Acti9 iC60N platform welcomes a wide assortment of auxiliary accessories, which simplifies system growth and remote monitoring.

Electrical Specifications

The iC60N 1P C16 operates with a rated current of 16 A and a magnetic trip threshold set at 8×In ±20% . This C-curve characteristic permits the breaker to withstand short surge currents without needless tripping. For instance, small motors, air conditioners, and lighting groups commonly benefit from this response profile.

Breaking capacity reaches 6 kA at 230/400 V AC under IEC 60898-1 standards, which covers residential and similar installations . Meanwhile, industrial applications referencing IEC 60947-2 achieve 10 kA at 220–240 V AC . The rated voltage spans 230/400 V AC and 125 V DC, offering flexibility for mixed power systems.

Mechanical and Environmental Parameters

Physical dimensions measure 82 × 18 × 78.5 mm, with a weight of approximately 0.1 kg per pole . The single-module width of 18 mm allows efficient use of DIN rail space. Operating temperature ranges from -35 to 70 °C, ensuring stability in harsh environments. Mechanical life reaches 20,000 cycles, while electrical endurance is rated at 10,000 cycles .

Installation Guide

Mounting this circuit breaker requires a standard 35 mm DIN rail . First, verify that the supply voltage matches the breaker rating. Next, snap the device onto the rail until it clicks into position. Subsequently, connect incoming and outgoing conductors to the screw terminals with appropriate torque. The VisiTrip indicator shows red when the breaker trips, which speeds up fault identification . Additionally, the VisiSafe green strip confirms physical contact opening for safe downstream maintenance .

Packaging List

• 1 × Schneider Acti9 iC60N 1P C16 Miniature Circuit Breaker

• 1 × Installation Guide

Shipping Methods: Fedex, UPS, DHL

FAQ

What does the C-curve mean on the iC60N 1P C16?
The C-curve trips magnetically at 5 to 10 times the rated current. This suits inductive loads with moderate startup surges, such as small motors or fluorescent fixtures.

Can I use the iC60N 1P C16 for DC circuits?
Yes, this breaker supports DC applications up to 125 V. However, verify that your system voltage falls within the specified DC rating before installation .

What is the difference between the iC60N and iC60H series?
The iC60N provides 6 kA breaking capacity, while the iC60H offers 10 kA. The N version suits residential and light commercial panels, whereas the H version handles higher fault currents.

How do I identify which breaker has tripped?
Look for the red VisiTrip indicator on the front face. This window turns red after a fault trip, which helps locate the affected circuit quickly .

Does this breaker accept auxiliary contacts?
Yes, the Acti9 iC60 platform supports add-on auxiliaries for remote signaling and monitoring . These accessories snap onto the side of the breaker without additional wiring modifications.
