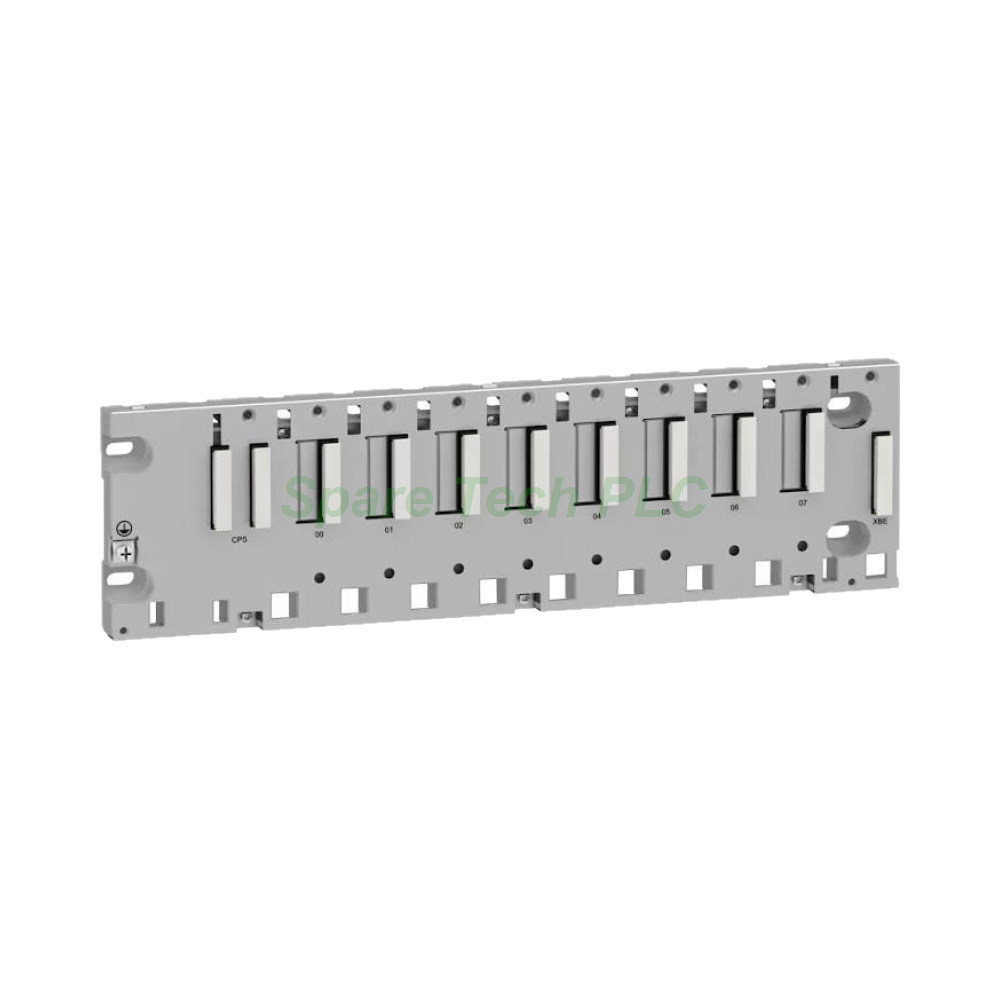

The BMXXBP0800 belongs to the Schneider Electric Modicon X80 platform. This 8-slot rack backplane connects I/O modules to the CPU through the X-bus. Furthermore, it supports both Modicon M340 and M580 processors. Industrial engineers use this rack in factory automation and process control. The unit measures 100 mm in height and 93 mm in depth. Meanwhile, its width changes with the slot count. Specifically, this 8-slot version fits compact control cabinets. The backplane carries a lightweight design at just 0.46 kg. Therefore, panel mounting becomes simple and fast.
The BMXXBP0800 provides eight physical slots for X80 modules. Each slot links directly to the X-bus communication channel. Additionally, the backplane supports mixed I/O configurations. For instance, users can combine digital, analog, and specialty modules. The X-bus handles high-speed data transfer between modules and CPU. Moreover, the rack works with both M340 and M580 CPU families. This shared platform reduces spare parts inventory. The BMXXBP0800 model number appears on the side label for quick identification.
The operating temperature range spans 0°C to +60°C. Storage conditions allow -25°C to +70°C. Besides, relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, which suits indoor cabinet use. Dimensions measure 100 mm (H) × 93 mm (D), with width varying by slot count. Furthermore, the net weight is only 0.46 kg. These features make the rack suitable for harsh factory floors. However, users should avoid direct water exposure.
First, mount the backplane inside a standard control panel. Next, secure it with the provided screws at the four corners. Then, slide the CPU into slot one or the designated CPU slot. After that, insert I/O modules into the remaining slots. Meanwhile, ensure each module clicks firmly into place. Finally, connect the power supply and communication cables. The BMXXBP0800 requires no special tools for module insertion. However, always follow Schneider Electric wiring diagrams. Besides, power off the rack before adding or removing modules.
1 × Schneider BMXXBP0800 Modicon X80 8-Slot Rack Backplane
1 × Mounting Screw Set
1 × Product Insert Sheet
Shipping methods include Fedex, UPS, and DHL. Delivery times vary by destination. Therefore, contact us for a shipping quote.
Q1: What CPUs work with the BMXXBP0800?
A: This rack supports Modicon M340 and M580 CPUs from Schneider Electric.
Q2: How many I/O modules can I install?
A: You can install up to eight X80 modules in this backplane.
Q3: What is the operating temperature range?
A: The BMXXBP0800 works from 0°C to +60°C in indoor settings.
Q4: Does the rack include a power supply?
A: No, the power supply is sold separately. Please order it as a separate item.
Q5: Which shipping carriers do you use?
A: We ship via Fedex, UPS, and DHL for fast worldwide delivery.
