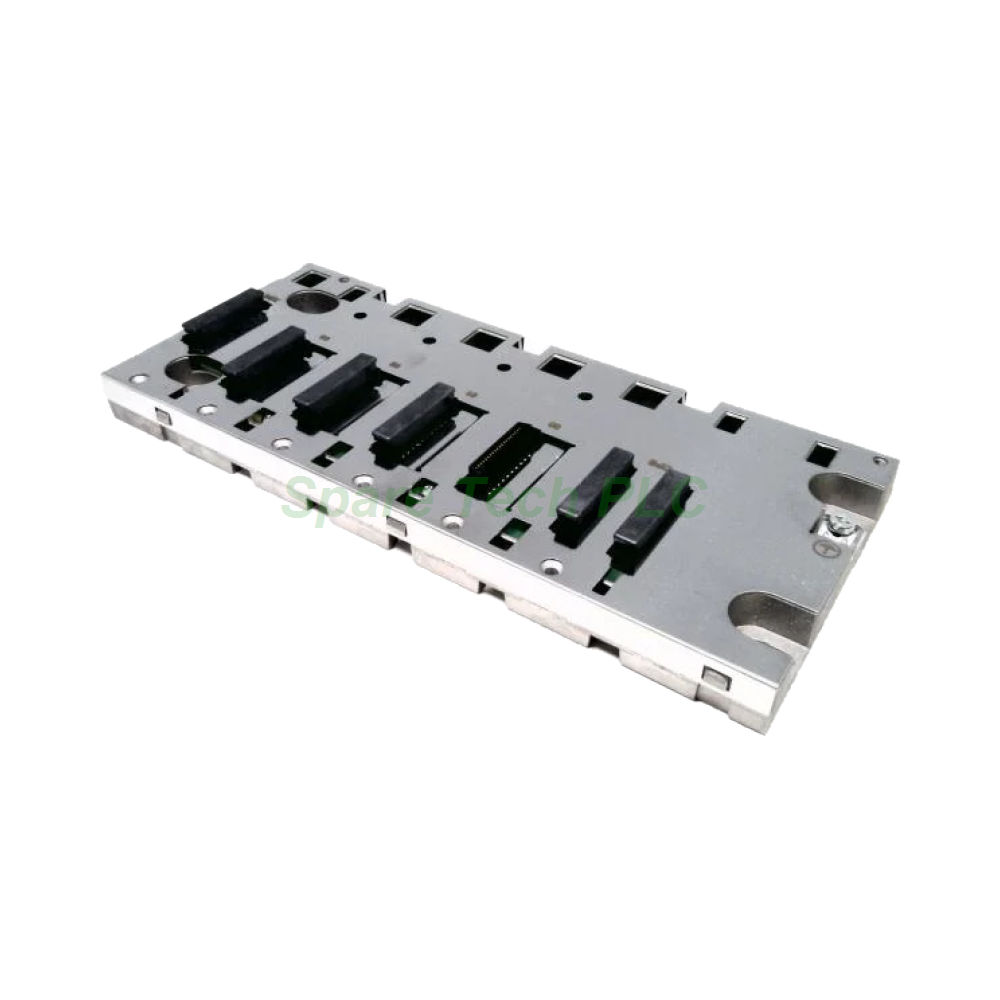

The BMXXBP0400H is a compact 4-slot rack backplane in the Schneider Electric Modicon X80 platform. This model features a conformal coating that protects the circuit board from moisture, dust, and chemical vapors. Furthermore, it supports both Modicon M340 and M580 processors. Engineers choose this rack for small control cabinets and remote I/O stations. The unit measures 100 mm in height and 93 mm in depth. Meanwhile, its width changes with the slot count. Specifically, this 4-slot version keeps a low weight of just 0.30 kg. Therefore, installation and cabinet layout become easier.
The BMXXBP0400H provides four physical slots for X80 modules. Each slot links to the X-bus communication channel. Additionally, the backplane accepts mixed I/O configurations. For instance, users can combine digital, analog, and specialty modules in one rack. The X-bus handles fast data transfer between modules and the CPU. Moreover, the rack works with both M340 and M580 CPU families. This shared platform cuts spare parts inventory. The conformal coating adds a protective layer over the PCB. As a result, the BMXXBP0400H suits humid or dusty plant areas.
The operating temperature range spans 0°C to +60°C. Storage conditions allow -25°C to +70°C. Besides, relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, which fits indoor cabinet use. Dimensions measure 100 mm (H) × 93 mm (D), with width varying by slot count. Furthermore, the net weight is only 0.30 kg. The conformal coating boosts resistance to corrosive gases. However, users should still avoid direct water exposure.
First, mount the backplane inside a standard control panel. Next, secure it with the supplied screws at the four corners. Then, slide the CPU into the designated CPU slot. After that, insert I/O modules into the remaining slots. Meanwhile, ensure each module clicks firmly into place. Finally, connect the power supply and communication cables. The BMXXBP0400H needs no special tools for module insertion. However, always follow Schneider Electric wiring diagrams. Besides, power off the rack before adding or removing modules.
1 × Schneider BMXXBP0400H Modicon X80 4-Slot Rack Backplane
1 × Mounting Screw Set
1 × Product Insert Sheet
Shipping methods include Fedex, UPS, and DHL. Delivery times vary by destination. Therefore, contact us for a shipping quote.
Q1: What CPUs work with the BMXXBP0400H?
A: This rack supports Modicon M340 and M580 CPUs from Schneider Electric.
Q2: How many I/O modules can I install?
A: You can install up to four X80 modules in this backplane.
Q3: What makes the H version different?
A: The BMXXBP0400H carries a conformal coating for harsh environments.
Q4: Does the rack include a power supply?
A: No, the power supply is sold separately. Please order it as a separate item.
Q5: Which shipping carriers do you use?
A: We ship via Fedex, UPS, and DHL for fast worldwide delivery.
