Product Introduction Industrial automation networks often require expanded rack configurations to handle growing operational demands. The BMXXBE1000 rack expansion module delivers an efficient solution by bridging multiple rack chassis. Specifically designed for the Schneider Electric Modicon X80 ecosystem, this hardware component maintains rapid data flow across distributed rack setups.
The BMXXBE1000 functions as a dedicated communication link between primary and secondary rack bases. Furthermore, engineers install this specific hardware directly into the dedicated right-end XBE slot. Because it uses a specialized slot position, the module does not occupy standard application slots numbered 00 through 11.

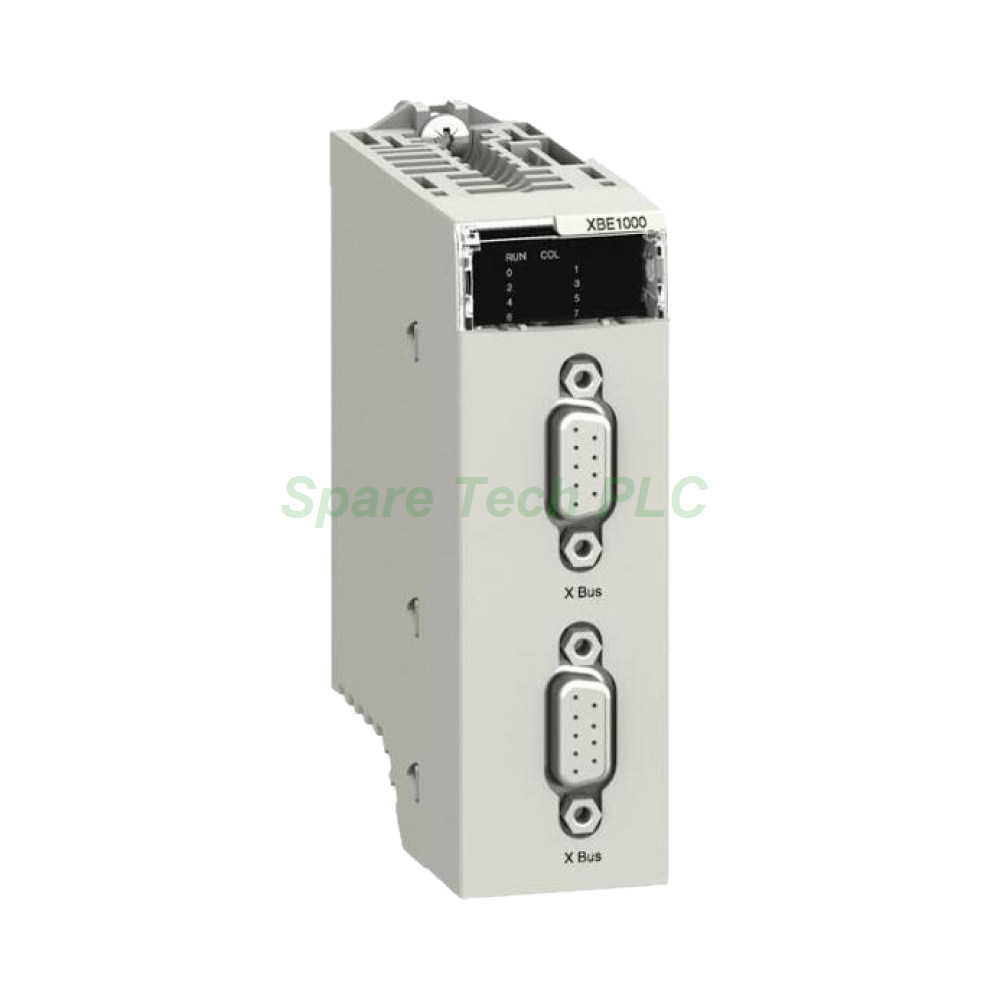

Additionally, two separate 9-pin SUB-D connectors support seamless X-bus in and out signal chains. Meanwhile, clear visual indicators provide operators with immediate status updates during everyday field operations. These built-in LEDs display RUN status, collision warnings, and active rack addresses ranging from 0 to 3. Consequently, maintenance technicians can troubleshoot network communication issues directly at the physical rack.
Compact industrial designs demand space-saving components, so this unit features dimensions of 100 x 28 x 93 mm. Moreover, the lightweight module weighs only 0.10 kg, which reduces strain on the mounting rail. Industrial enclosures shield internal electronics, and this device offers an IP20 protection rating against solid objects.
In addition, reliable performance depends on strict temperature management across busy control cabinets. The device operates smoothly in environments ranging from 0°C to +60°C. Storage environments can tolerate wider temperature swings between -25°C to +70°C without damaging internal circuits. Besides, non-condensing relative humidity levels can safely range from 5% to 95% during continuous operation.
First, power down the rack system completely before inserting any new hardware into the chassis. Next, locate the dedicated right-end XBE slot on your target Modicon X80 baseplate. Then, align the module carefully with the guide rails and slide it firmly into position until it seats.
Furthermore, tighten the retaining screws securely to prevent vibration from disconnecting the backplane interface. Next, attach your high-quality X-bus cables using the twin 9-pin SUB-D connectors. Finally, apply power to the system and verify the status LEDs to ensure proper network initialization.
Packaging List 1 x BMXXBE1000 Modicon X80 Rack Expansion Module 1 x Protective Anti-Static Packaging Sleeve 1 x Hardware Installation Quick Reference Sheet
Shipping Information We ship all orders via fast international couriers including Fedex, UPS, and DHL.
FAQ
Q: Which PLC systems support the BMXXBE1000 module? A: It serves as a shared backplane expansion platform for Modicon M340 and M580 series controllers.
Q: Does installing this module consume standard I/O slot space? A: No, it mounts in a dedicated right-end XBE slot without occupying I/O slots 00 through 11.
Q: What connector type does the BMXXBE1000 use for X-bus wiring? A: The module includes two standard 9-pin SUB-D connectors for daisy-chaining X-bus connections.
Q: What environmental conditions can this expansion module withstand? A: It operates reliably between 0°C and +60°C with non-condensing humidity up to 95%.
Q: What primary status indicators are visible on the front panel? A: Front diagnostics include LEDs for RUN state, collision detection, and rack addresses 0 through 3.
