Schneider BMXXBC030K X-bus Cable

Reliable Rack Expansion for Industrial Control

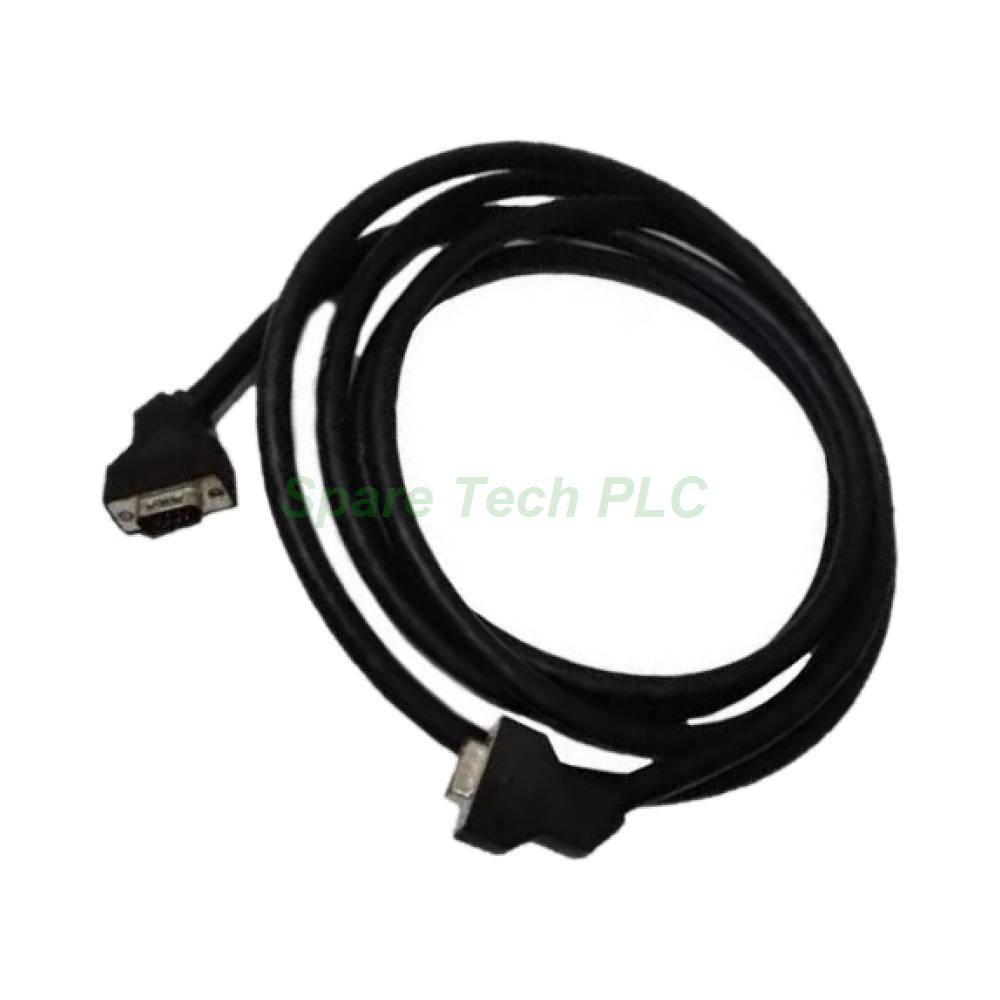

The Schneider Electric BMXXBC030K cable enables seamless communication across distant automation racks. Engineers design this cable to connect Modicon X80 backplanes without data loss. Additionally, it integrates smooth operation between Modicon M340 and Modicon M580 systems. Users can trust this component for demanding plant environments.

Specifically, this cable supports complex control layouts across large factory floors. Furthermore, it allows engineers to extend local I/O configurations effortlessly. The sturdy construction prevents unexpected network drops during daily operations. Therefore, plant managers can maintain continuous production schedules without technical interruptions.

Key Technical Specifications

The BMXXBC030K extension cord features a precise length of 3.0 m. It utilizes industrial standard 9-pin SUB-D connectors at both ends. Consequently, these connectors guarantee tight locking and minimize signal noise interference. The total X-bus network length can reach up to 30 m across multiple racks.

Moreover, the heavy-duty shielding protects critical signals from electromagnetic disturbances. System integrators prefer this cable for its high signal integrity in noisy electrical environments. Meanwhile, the flexible outer jacket makes cable routing inside tight enclosures straightforward.

Installation Guidelines

First, turn off all power sources before connecting the BMXXBC030K assembly to your backplane. Next, carefully align the 9-pin SUB-D connector with the dedicated X-bus port. Secure the connector screws firmly to avoid accidental loosening from vibration.

In addition, ensure that the total daisy-chain distance stays within the maximum 30 m limit. Avoid sharp bends near the connector strain relief during panel installation. Finally, reapply system power and verify the rack communication status on your controller LEDs.

Shipping and Logistics

We dispatch all order packages promptly using global standard carriers. Specifically, we ship via Fedex, UPS, and DHL for fast transit times.

Packaging List

• 1 x Schneider Electric BMXXBC030K Cable Assembly

FAQ

What is the primary function of the BMXXBC030K cable?

It connects main and expansion racks in Modicon M340 and M580 automation systems seamlessly.

What is the maximum total length allowed for the X-bus chain?

The maximum cumulative length for the entire X-bus network cannot exceed 30 m.

What connector type does the BMXXBC030K utilize?

This cable uses rugged 9-pin SUB-D connectors equipped with secure locking screws.

Which carrier options do you offer for worldwide shipping?

We ship products globally using trusted express services including Fedex, UPS, and DHL.
