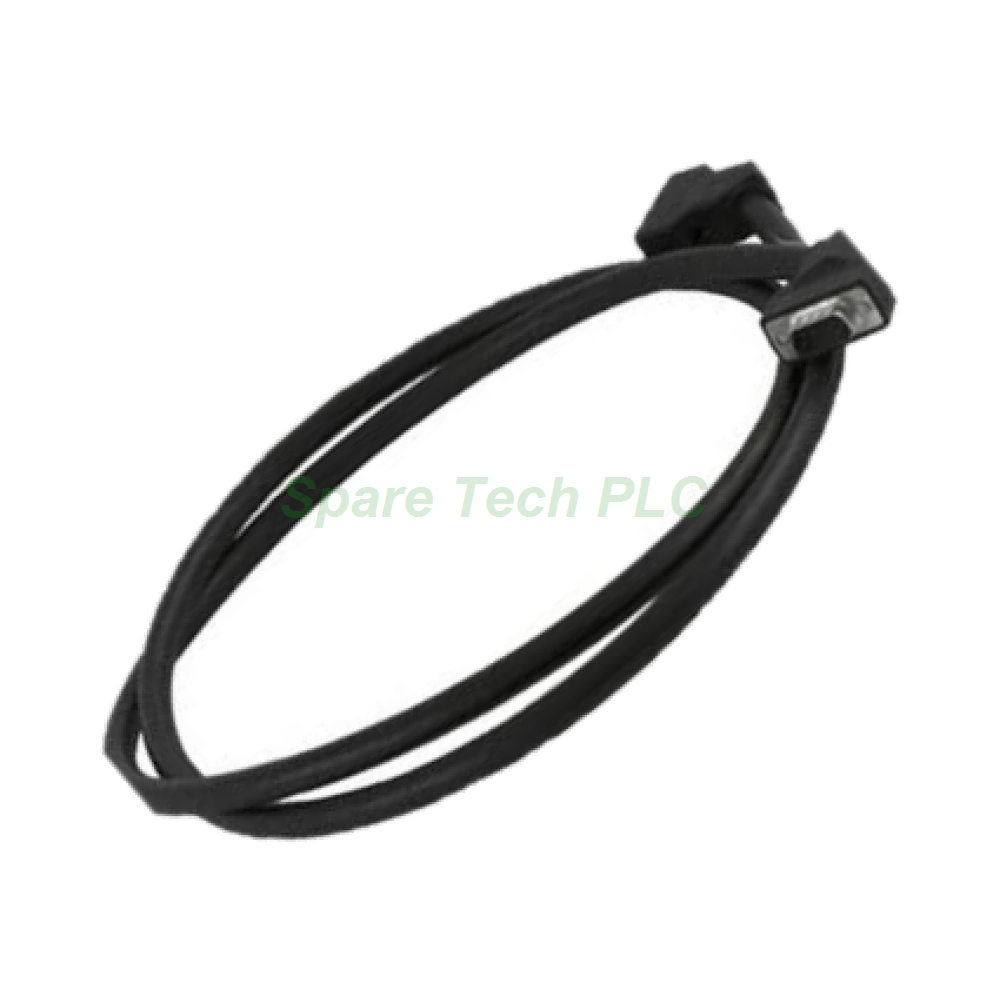

Product Introduction Expanding automation systems often requires connecting multiple rack baseplates across control cabinets or adjacent enclosures. The BMXXBC015K X-bus expansion cable provides a robust communications bridge between separate Modicon X80 rack chassis. Engineered specifically within the Schneider Electric industrial ecosystem, this dedicated cable maintains steady signal integrity across distributed control setups.
The BMXXBC015K offers a versatile functional length of 1.5 m for bridging medium-distance rack configurations. Furthermore, heavy-duty 9-pin SUB-D connectors fitted at both ends ensure secure interface mating. Because this cable supports daisy-chain topologies, engineers can interconnect multiple expansion racks up to a maximum total X-bus length of 30 m.
Additionally, high-grade internal shielding isolates backplane communication signals from surrounding electrical noise inside busy industrial panels. Meanwhile, integrated strain relief boots prevent conductor strain near connector ends during tight panel routing. Consequently, automation technicians achieve steady real-time data exchange without experiencing intermittent backplane communication faults.
Optimized control cabinet layouts require durable yet manageable cabling solutions, so this flexible assembly weighs approximately 0.22 kg. Moreover, the 1.5 m length provides enough reach for spanning separate cabinet sections while preventing messy wire clutter. Tough outer insulation shields sensitive internal conductors against ambient industrial contaminants and accidental physical abrasions.
In addition, reliable system operation depends on mechanical durability under demanding field operational conditions. The industrial-grade jacket withstands thermal shifts typically encountered inside sealed electrical cabinets and control rooms. Besides, rugged screw-lock fasteners firmly anchor each connector into mating expansion slots to resist continuous machine vibration.
First, turn off all backplane power sources completely before connecting any communication cabling between racks. Next, identify the dedicated 9-pin SUB-D X-bus ports located on your Modicon X80 rack expansion modules. Then, align the BMXXBC015K connector carefully with the port pins on the primary rack.
Furthermore, push the connector firmly into position and hand-tighten both captive securing screws until fully seated. Next, route the flexible 1.5 m cable neatly along panel wiring ducts to the secondary expansion rack. Finally, fasten the remaining connector, restore system power, and inspect diagnostic LEDs to verify active network communication.
Packaging List 1 x BMXXBC015K Modicon X80 1.5 m X-bus Expansion Cable 1 x Protective Plastic Outer Packaging Sleeve 1 x Cable Specification and Handling Sheet
Shipping Information We ship all orders via fast international couriers including Fedex, UPS, and DHL.
FAQ
Q: What is the main application of the BMXXBC015K expansion cable? A: It provides a high-speed X-bus link for daisy-chaining separate Modicon X80 rack baseplates together.
Q: What is the length and connector type used on the BMXXBC015K cable? A: The cable measures 1.5 m long and utilizes standard 9-pin SUB-D connectors on both ends.
Q: What is the maximum allowable total X-bus network length? A: The total cumulative length for all daisy-chained X-bus cables must not exceed 30 m in a single system.
Q: Which PLC processor series support this X-bus connection cable? A: It serves as a shared backplane expansion cable for Modicon M340 and M580 series automation systems.
Q: How are international orders delivered to customers? A: All international shipments are dispatched via fast express couriers like Fedex, UPS, and DHL.
