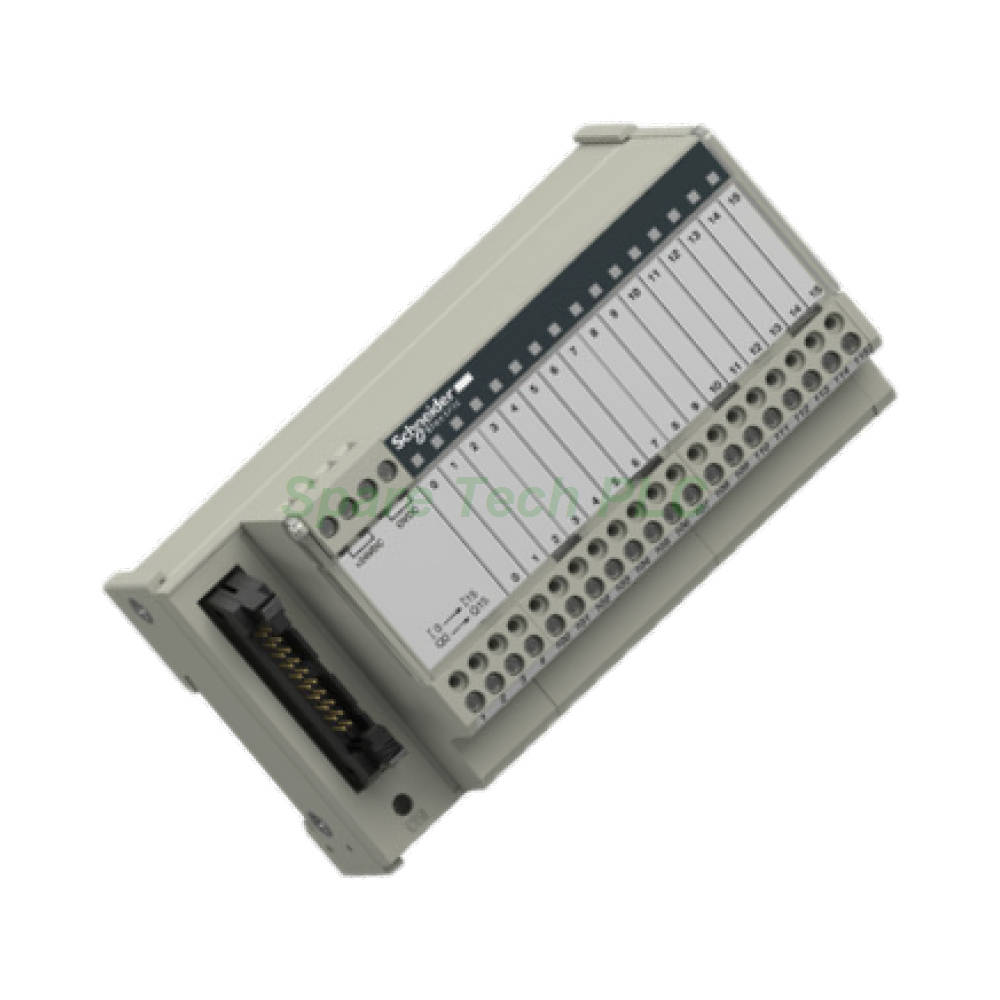

Schneider Electric ABE7H16R11 Passive Connection Sub-Base
Product Introduction
The Schneider Electric ABE7H16R11 belongs to the Modicon ABE7 range, a well-known family of connection sub-bases for Telefast pre-wired systems. This passive sub-base simplifies discrete signal wiring inside automation cabinets. Specifically, it connects field devices to PLC cards equipped with HE-10 connectors. The unit offers 16 channels, each with a single terminal. In addition, it carries no polarity distribution, so it suits applications where wiring simplicity matters most.
Technical Specifications
The ABE7H16R11 runs on a rated supply voltage of 19 to 30V DC, compliant with IEC 61131-2. It handles a maximum supply current of 1.8A. Meanwhile, the current per channel reaches up to 0.5A. A 2A internal fuse protects the PLC end from overload. Furthermore, each channel includes an LED for fast diagnostics. The HE-10 20-pin connector guarantees a secure, standardized link to the PLC interface.
Mechanical and Environmental Parameters
This sub-base measures 77 mm in height and 206 mm in width. The product weight is 0.64 kg. It accepts wire cross-sections from 0.14 to 2.5 mm² for solid conductors. Moreover, the screw terminals accommodate flexible wires from 0.09 to 1.5 mm². The operating temperature range spans from -5 to 60 °C. Its IP2X protection rating conforms to IEC 60529, ensuring finger-safe operation.
Installation Guide
Installation is straightforward. First, mount the ABE7H16R11 onto a 35 mm symmetrical DIN rail using the built-in clips. Alternatively, screw mounting is possible on a solid plate with a fixing kit. Next, connect the HE-10 20-pin connector to the corresponding PLC channel. After that, wire the field signals to the single terminal of each channel. Finally, check the channel LEDs for correct status indication.
Packaging List
FAQ
How many terminals does each channel have on the ABE7H16R11?
Each channel provides one terminal.
Does this sub-base offer polarity distribution?
No, it provides no polarity distribution.
Which connector type does this sub-base use?
It uses a standard HE-10 20-pin connector.
What is the supply voltage range for this unit?
The rated voltage is 19 to 30V DC.
