Schneider Electric ABE7CPA31E Analog Input Connection Sub-Base
Product Introduction

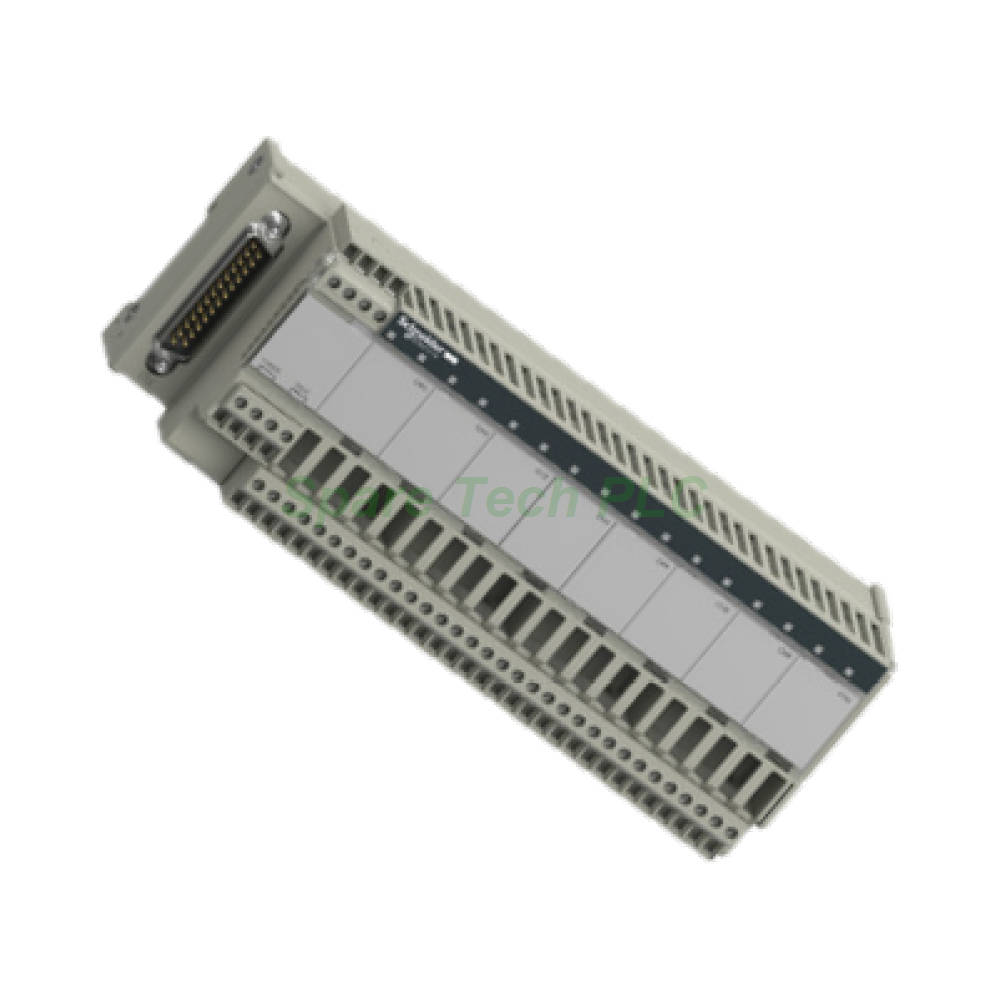

The Schneider Electric ABE7CPA31E belongs to the Modicon ABE7 range, a widely used family of connection sub-bases for Telefast pre-wired systems. This unit handles analog input signals rather than discrete ones. Specifically, it links up to eight analog sensors to a Premium PLC through a single SUB-D 25 connector. As a result, cabinet wiring becomes faster and far less error-prone. Furthermore, its isolated design protects signals from ground loops and electrical noise.
Technical Specifications
The ABE7CPA31E supports eight isolated analog input channels. It operates on a 24V DC control voltage. The SUB-D 25 connector carries all channel signals to the PLC interface. In addition, the sub-base accepts 1-wire, 2-wire, 3-wire, and 4-wire sensor configurations. This flexibility covers thermocouples, RTDs, and standard transmitters. Meanwhile, LED indicators show channel and power status for quick troubleshooting.
Mechanical and Environmental Parameters
This sub-base mounts on a 35 mm symmetrical DIN rail using built-in clips. Screw mounting is also possible on a solid plate. Its spring terminals accept solid wires from 0.14 to 2.5 mm² and flexible wires from 0.09 to 1.5 mm². The operating temperature range spans from 0 to 60 °C. Moreover, the IP20 protection rating suits clean, protected cabinet environments.
Installation Guide
Installation follows a simple sequence. First, snap the ABE7CPA31E onto a 35 mm DIN rail or fix it with screws. Next, connect the SUB-D 25 cable to the Premium PLC analog card. After that, wire each sensor to its spring terminals according to the chosen wire configuration. Finally, power the unit with 24V DC and confirm the LED status before startup.
Packaging List
FAQ
How many analog input channels does the ABE7CPA31E support?
It supports eight isolated analog input channels.
Which PLC family is this sub-base compatible with?
It is compatible with Premium PLC systems.
What sensor wiring configurations are available?
It supports 1-wire, 2-wire, 3-wire, and 4-wire sensors.
Which connector type does this sub-base use?
It uses a SUB-D 25 connector.
