Schneider Electric ABE7H16S21 Passive Connection Sub-Base
Product Introduction

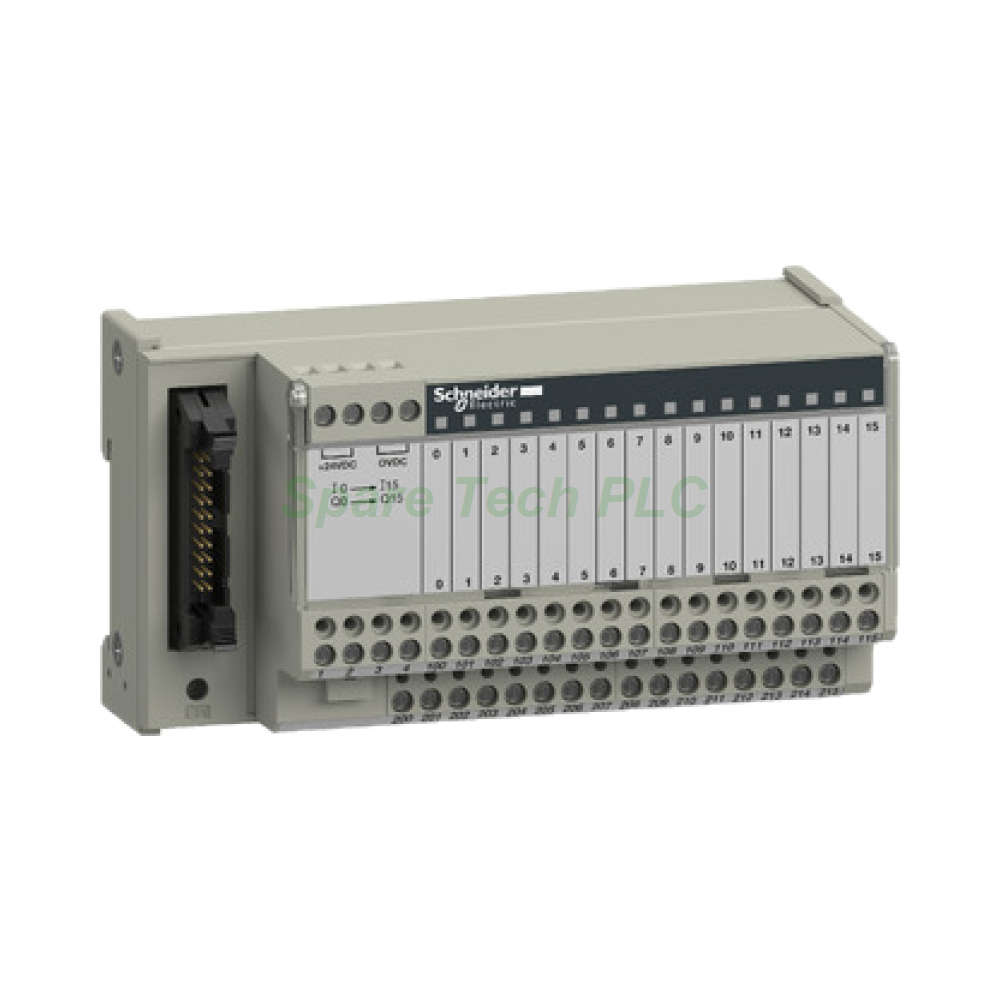

The Schneider Electric ABE7H16S21 belongs to the Modicon ABE7 range, a trusted family of connection sub-bases for Telefast pre-wired systems. This passive sub-base simplifies the wiring of discrete input and output signals in automation cabinets. Specifically, it connects field devices to PLC cards equipped with HE-10 connectors. The unit provides 16 channels with two terminals per channel. Furthermore, it distributes 0V or 24V polarity for flexible input or output configuration.
Technical Specifications
The ABE7H16S21 operates on a rated supply voltage of 19 to 30V DC, compliant with IEC 61131-2. It supports a maximum supply current of 1.8A. Meanwhile, the current per channel reaches up to 0.5A, and each output common group is limited to 1.8A. For protection, a 2A internal fuse (5 x 20 mm, fast blow) guards the PLC end. Additionally, the unit includes an isolator between channels and the PLC interface.
Mechanical and Environmental Parameters
This sub-base measures 77 mm in height and 206 mm in width. The product weight is 0.64 kg. It accepts wire cross-sections from 0.14 to 2.5 mm² for solid conductors. Moreover, the screw terminals accommodate flexible wires from 0.09 to 1.5 mm². The operating temperature range spans from -5 to 60 °C. Its IP2X protection rating conforms to IEC 60529, ensuring finger-safe operation.
Installation Guide
Installation is straightforward. First, mount the ABE7H16S21 onto a 35 mm symmetrical DIN rail using the built-in clips. Alternatively, screw mounting is possible on a solid plate with a fixing kit. Next, connect the HE-10 connector to the corresponding PLC channel. After that, wire the field signals to the screw terminals. The tightening torque is 0.6 N·m. Finally, verify the green LEDs for channel status and power-on indication.
Packaging List
1 x Schneider ABE7H16S21 Passive Connection Sub-Base
1 x Product Documentation
FAQ
What is the maximum current per channel for the ABE7H16S21?
Each channel supports up to 0.5A.
Which connector type does this sub-base use?
It uses a standard HE-10 connector with 20 pins.
What is the supply voltage range for this unit?
The rated voltage is 19 to 30V DC.
Can I mount the ABE7H16S21 on a DIN rail?
Yes, it mounts on a 35 mm symmetrical DIN rail.
How does this product ship?
We ship via Fedex, UPS, and DHL.
