Schneider 170INT11003C Modicon Momentum Adapter

Product Introduction

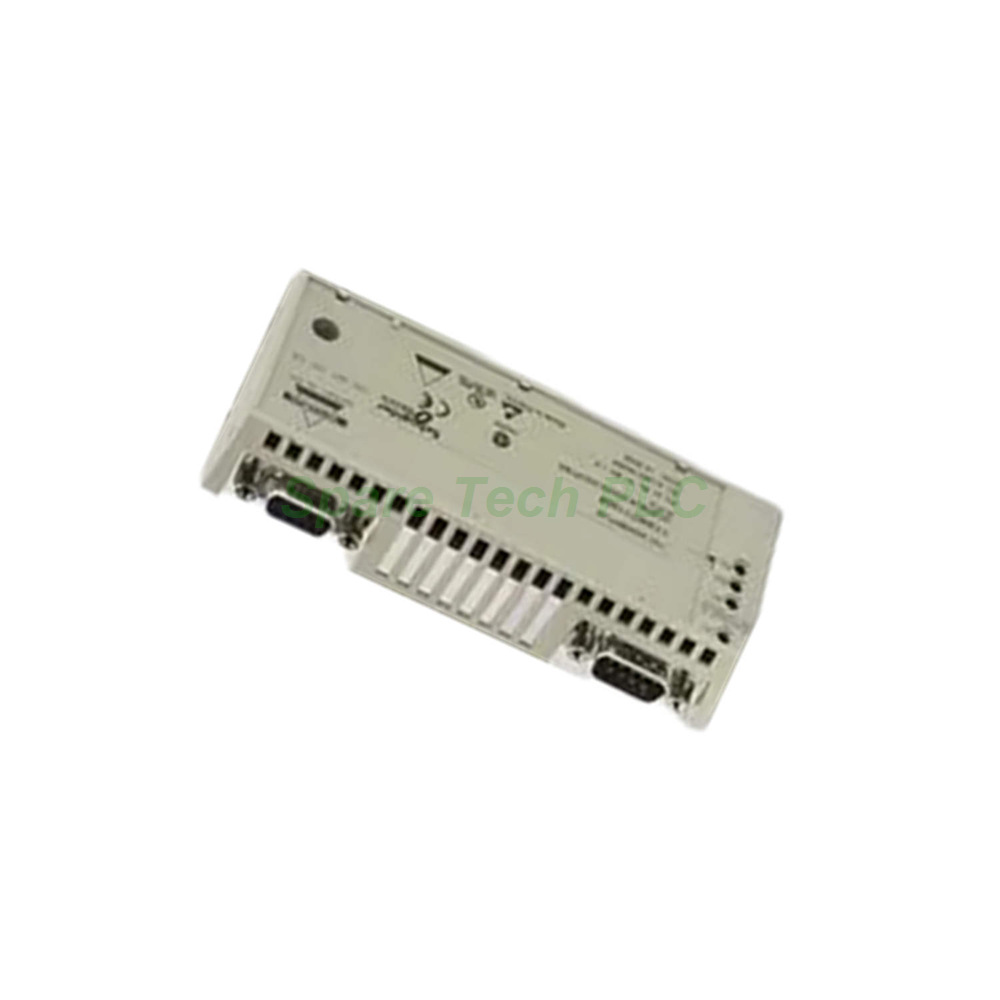

The Schneider Electric 170INT11003C is a high-performance communication adapter engineered specifically for the Modicon Momentum automation platform. This device provides a robust solution for establishing reliable fieldbus networks within industrial control systems. It enables seamless data exchange, ensuring your operations run smoothly and efficiently.

First, its technical capabilities are designed to meet the needs of large-scale installations. The adapter delivers a consistent transmission rate of 500 kbit/s, which ensures rapid data flow. Furthermore, it employs a ring topology to maximize network resilience. This means that even if a single connection fails, the network can continue to operate without interruption. Consequently, this design is perfect for critical processes where downtime is not an option.

Technical Specifications

The 170INT11003C stands out due to its impressive connectivity and capacity. For instance, it can support up to 254 devices within a single network segment. Additionally, it allows for a maximum cable distance of 12,800 meters between devices. This extensive reach provides great flexibility when designing the physical layout of your facility.

Here are the key communication parameters:

• Transmission Rate: 500 kbit/s

• Network Topology: Ring

• Device Capacity: 0 to 254 per segment

• Max Cable Distance: 12,800 m

• Fail State: Fail Safe

• Local Signaling: LED indicator

• Electrical Connection: 2 x SUB-D 9 connectors

Environmental & Mechanical Resilience

The Schneider Electric 170INT11003C is built to withstand harsh industrial conditions. Specifically, it carries an IP20 protection class, which is suitable for installation in control cabinets and indoor environments. Moreover, its resistance to electromagnetic fields is rated at 10 V/m, ensuring signal integrity even near heavy machinery.

Additionally, the device demonstrates excellent protection against electrostatic discharge. It can withstand discharges of 4 kV and 8 kV, providing a robust defense against common electrical disturbances found in factories. Weighing only 0.07 kg, this adapter is lightweight and easy to handle during installation and maintenance.

Seamless Installation & Setup

Installing the 170INT11003C is a straightforward process. To begin, ensure that power to the system is disconnected. Next, mount the adapter securely inside the control cabinet. Then, use the two SUB-D 9 connectors to link the adapter to the ring network cable and connect it to the processor.

Finally, power on the system and check the local LED signaling. The LED provides immediate visual confirmation of the device's operational status and communication activity. For optimal performance, ensure that the total cable length in the segment does not exceed the specified maximum distance.

Packaging List

When you purchase the 170INT11003C, your package will include the following items:

• 1 x Schneider Electric 170INT11003C Communication Adapter

• 1 x Product documentation sheet

Please note that certificates and warranty documents are not included in this physical package and are typically provided digitally. The product will be shipped using trusted global carriers such as FedEx, UPS, or DHL to ensure safe and timely delivery.

Frequently Asked Questions (FAQ)

Q1: What is the maximum number of devices I can connect with the 170INT11003C?
The 170INT11003C supports up to 254 devices per segment, making it highly scalable for large network applications.

Q2: What type of cabling is required for the 170INT11003C?
This adapter uses standard communication cables connected via its two SUB-D 9 connectors, suitable for a ring topology network.

Q3: Can the 170INT11003C operate in environments with electrical noise?
Yes. It offers resistance to electromagnetic fields up to 10 V/m and ESD protection up to 8 kV, ensuring stable operation in electrically noisy environments.

Q4: Is the 170INT11003C compatible with other Modicon series?
This specific adapter is designed for the Modicon Momentum product line. Please consult your system documentation to confirm full compatibility.

Q5: What shipping carriers are used to deliver the 170INT11003C?
We ship all orders using premium global logistics partners, including FedEx, UPS, and DHL, to ensure fast and reliable delivery.
