170ADO53050 Modicon Momentum Output Module Schneider

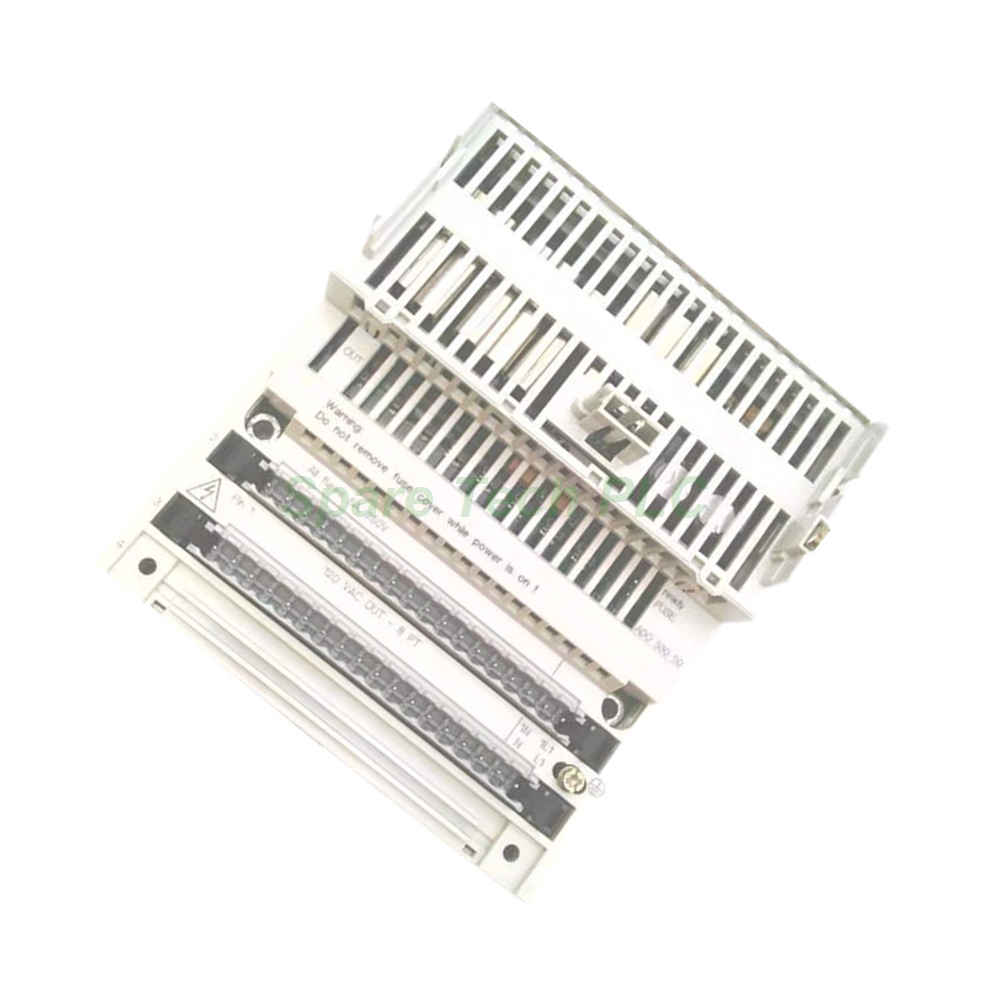

Schneider 170ADO53050 Modicon Momentum Discrete Output Module

Product Introduction

The 170ADO53050 from Schneider Electric is a high-performance discrete output module within the Modicon Momentum product line. This module delivers 8 outputs rated for 120V AC operation, using reliable Triac technology for switching. Each channel supports up to 2A of continuous current. Furthermore, the module includes comprehensive protection features such as internal fuses and robust isolation. Consequently, the Schneider 170ADO53050 provides a dependable solution for controlling actuators, relays, and other AC-powered devices in industrial environments.

Output Specifications and Performance

The 170ADO53050 offers 8 individually isolated outputs with a total current rating of 16A across all channels. Each output handles a continuous current of 2A, making it suitable for driving small to medium AC loads. The Triac output configuration ensures silent switching and long operational life. Additionally, the module maintains a minimum output current of 5mA and a maximum leakage current of just 1.9mA, ensuring efficient performance even with sensitive loads. The voltage drop across each output stays below 1.5V at full load, preserving energy and reducing heat generation.

Protection Mechanisms and Robustness

This output module incorporates multiple layers of protection to safeguard both itself and connected equipment. An internal 5A slow-blow fuse protects each group of outputs against short-circuit conditions. Furthermore, the 170ADO53050 handles surge currents effectively, with ratings of 10A for 2 cycles, 15A for 1 cycle, and 5A for 3 cycles. This surge capability ensures reliable startup of inductive loads such as contactors and solenoids. Additionally, an internal overload protection mechanism activates under excessive load conditions, preventing permanent damage to the module.

Isolation and Safety Features

Electrical isolation is a critical aspect of the Schneider 170ADO53050. The module provides channel-to-channel isolation rated at 1780V AC for 1 minute. This high isolation level protects the control system from voltage spikes and ground loops. Moreover, it enhances operator safety by preventing hazardous voltages from reaching the processor side. The module also complies with relevant industrial safety standards, ensuring reliable operation in demanding environments. For applications requiring electrical separation between output groups, this module delivers exceptional performance.

Response Time and Power Dissipation

The 170ADO53050 offers fast response times essential for precise control applications. Its transition time from state 0 to state 1 or vice versa is just 0.5 line cycles. At 60Hz, this translates to approximately 8.3 milliseconds, enabling rapid on-off control for processes requiring quick actuation. In terms of power consumption, the module dissipates 6W typically and reaches a maximum of 7.5W. This low power dissipation reduces internal heating, contributing to longer component life and improved reliability in enclosed control cabinets.

Mechanical and Environmental Parameters

This output module features a compact design weighing just 0.45 kg. Its sturdy construction ensures durability in industrial settings. While specific temperature and humidity ratings align with standard Modicon Momentum specifications, the 170ADO53050 operates reliably across a broad range of conditions. The module mounts easily onto a DIN rail or panel within a control enclosure. Its EAN of 3595861147553 ensures traceability and authentic product identification.

Application Scenarios

The Schneider 170ADO53050 is ideal for controlling AC-powered field devices. For instance, it operates solenoid valves, motor starters, and indicator lamps in packaging lines. Similarly, it controls heating elements and fans in HVAC systems. Furthermore, this module serves well in conveyor systems where multiple actuators require coordinated switching. Its surge handling capability makes it particularly suitable for inductive loads that draw high inrush currents. Additionally, the fast response time benefits applications requiring precise timing sequences.

Installation and Configuration Guide

Installing the 170ADO53050 is straightforward. First, mount the module in a compatible Modicon Momentum base. Next, connect your AC loads to the output terminals, ensuring proper wiring practices. Always use appropriate wire gauges for the current ratings. After installation, configure the module parameters through your Momentum processor's programming software. Finally, test each output individually before placing the system into full operation. Remember to replace the internal fuse only with the specified 5A slow-blow type for continued protection.

Packaging List

When you receive your order, the package will contain the following items:

• Schneider Electric 170ADO53050 Discrete Output Module

• Product documentation and quick-start guide

Shipping Information

We ship all orders via leading carriers including FedEx, UPS, and DHL. These services provide reliable tracking and fast global delivery. We carefully package every module to prevent damage during transit. Once shipped, you will receive a tracking number via email. Expedited shipping options are also available upon request.

Frequently Asked Questions (FAQ)

Q1: What type of outputs does the 170ADO53050 provide?
A1: The 170ADO53050 provides 8 discrete outputs using Triac technology. These outputs are rated for 120V AC operation and are suitable for controlling AC loads.

Q2: How much current can each output of the 170ADO53050 handle?
A2: Each output supports a continuous current of 2A, with a total module capacity of 16A. Surge currents up to 15A are also supported for brief periods.

Q3: Does the 170ADO53050 include short-circuit protection?
A3: Yes, the Schneider 170ADO53050 includes an internal 5A slow-blow fuse per group for short-circuit protection. It also features output overload protection for enhanced safety.

Q4: What is the isolation voltage of the 170ADO53050?
A4: This module provides channel isolation rated at 1780V AC for 1 minute, ensuring safe separation between outputs and the control logic.

Q5: What is the response time of the 170ADO53050?
A5: The 170ADO53050 offers a fast response time of 0.5 line cycles for both turning on and turning off outputs, enabling precise control in time-critical applications.
