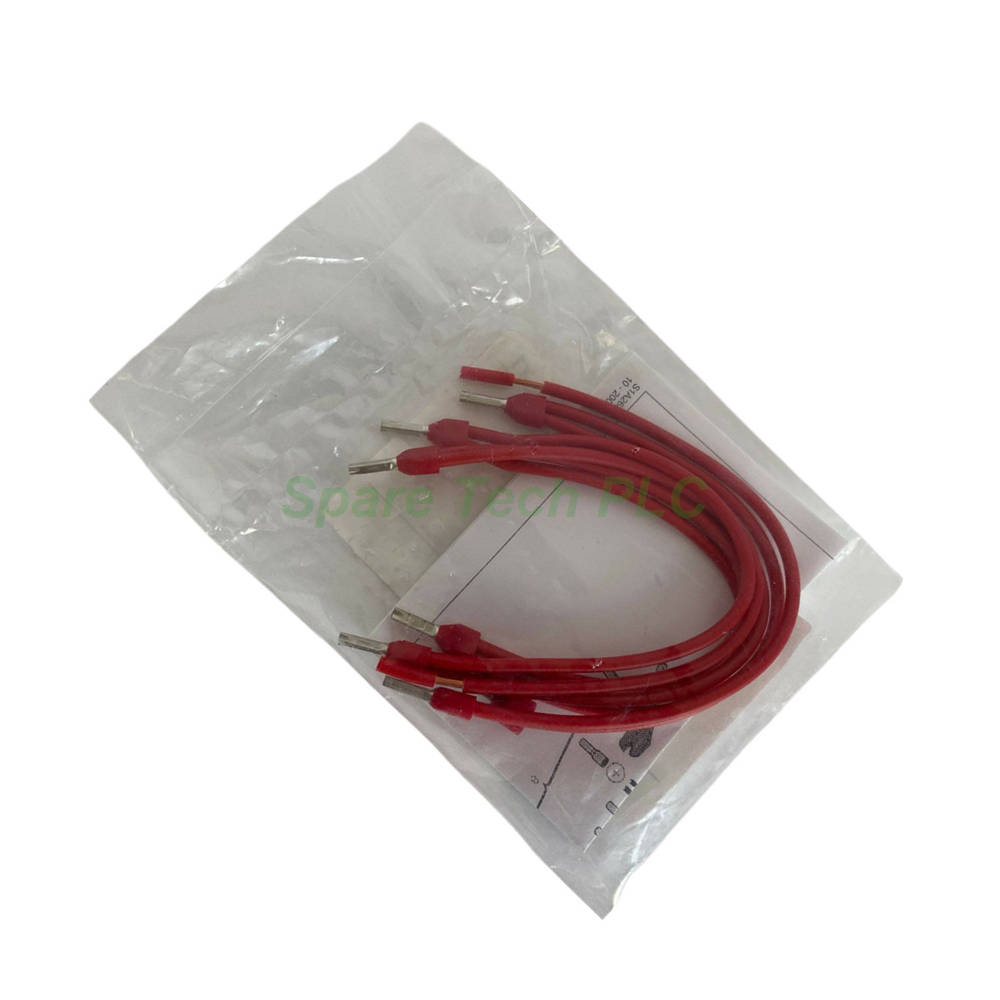

The ABFC08R12R from Schneider Electric is a dedicated commoning link within the Modicon Momentum product line. This accessory establishes electrical connections between multiple terminal blocks or modules. Its compact dimensions allow for easy placement in crowded control cabinets. Additionally, the bright red color ensures quick visual identification during maintenance. The Schneider ABFC08R12R offers a simple but essential solution for streamlining wiring in automation systems.
The ABFC08R12R commoning link features a compact form factor with precise dimensions. It measures 3.15 inches in length, 2.76 inches in width, and stands only 0.31 inches high. Furthermore, its weight is just 0.02 kg, making it one of the lightest components in the Momentum series. The part carries an EAN of 3389110449273 for easy traceability. Its red finish is not merely aesthetic, it also serves as a functional identifier for installers.
This commoning link performs reliably across a broad spectrum of conditions. Its operating temperature range spans from 0 °C to 60 °C, accommodating most indoor industrial settings. Moreover, the ABFC08R12R can withstand humidity levels up to 95% (non-condensing) during both operation and storage. This high moisture tolerance makes it suitable for environments with significant humidity, such as food processing plants or outdoor enclosures. Additionally, it maintains consistent performance at altitudes reaching 1000 meters above sea level.
Schneider Electric has designed the ABFC08R12R to meet rigorous quality standards. It holds CE certification, confirming its compliance with European health, safety, and environmental requirements. This certification gives you confidence in the product's reliability and safety. Furthermore, the red plastic housing resists wear and provides good insulation properties. Therefore, you can trust this commoning link for long-term service in your control systems.
Installing the ABFC08R12R is a quick and tool-free process. First, identify the terminal blocks or modules that require commoning. Next, simply push the link firmly onto the designated terminals until it snaps into place. The red color helps you confirm correct placement at a glance. For removal, use a small screwdriver to gently pry the link off the terminals. Always ensure the system is de-energized before installation or removal to prevent accidental shorts.
This commoning link is particularly useful for distributing power or signals across multiple I/O points. For instance, it can common the neutral or ground terminals of adjacent input modules. Similarly, it simplifies wiring for sensor power distribution across several channels. The ABFC08R12R is also ideal for test and commissioning setups, where temporary connections are frequently changed. Its lightweight and compact design make it a staple accessory for any Modicon Momentum-based control panel.
When you receive your order, the package will contain the following items:
Schneider Electric ABFC08R12R Commoning Link
Product documentation (if applicable)
We ship all orders via leading carriers including FedEx, UPS, and DHL. These services provide reliable tracking and fast global delivery. We carefully package every component to prevent damage during transit. Once shipped, you will receive a tracking number via email. Expedited shipping options are also available upon request.
Q1: What is the primary function of the ABFC08R12R?
A1: The ABFC08R12R serves as a commoning link that creates electrical connections between multiple terminal blocks or I/O modules in a Modicon Momentum system.
Q2: Is the ABFC08R12R compatible with other Schneider Electric series?
A2: This link is specifically designed for the Modicon Momentum series. While it may physically fit other terminals, we recommend using it only with Momentum components for optimal performance.
Q3: What does the red color signify on the ABFC08R12R?
A3: The red color provides visual identification, helping technicians quickly locate the commoning link during installation, troubleshooting, or maintenance.
Q4: Can the ABFC08R12R operate in high-humidity environments?
A4: Yes, the Schneider ABFC08R12R can withstand humidity up to 95% (non-condensing) during both operation and storage, making it suitable for damp industrial settings.
Q5: How do I remove the ABFC08R12R after installation?
A5: You can remove it by gently prying it off the terminals using a small flathead screwdriver. Always ensure the system is powered off before performing this action.
| Brand Name | |
| Model No. | ABFC08R12R |
| Product Type | Commoning Link |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
