Schneider 170BAM09600 I/O Module 4in 2out 4-20mA

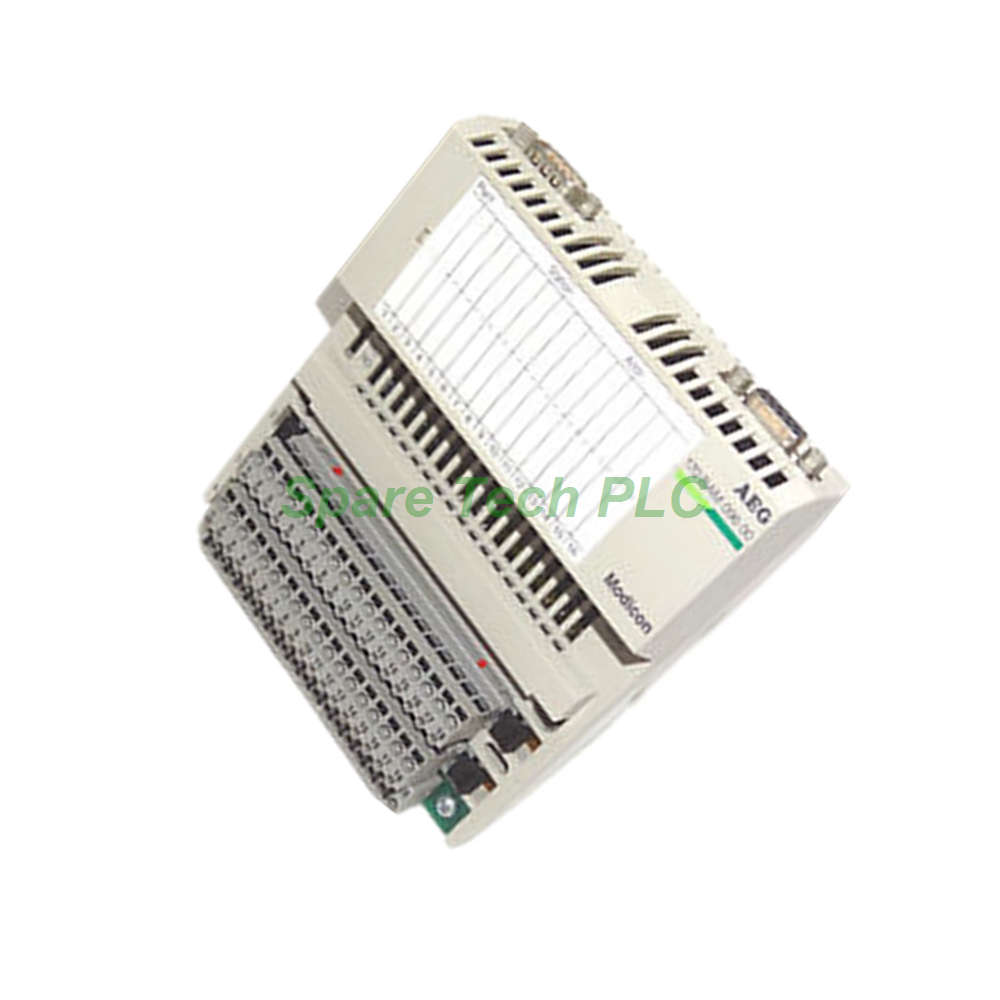

170BAM09600 Modicon Momentum Analog I/O Module

Product Introduction

The 170BAM09600 module delivers precise analog signal processing for your automation system. This I/O module belongs to the trusted Modicon Momentum product line. It features four input channels and two output channels on a single unit. Furthermore, the Schneider 170BAM09600 supports two industry-standard signal types. It handles both 4-20 mA current loops and 0-10 V DC voltage signals. This dual capability enhances its versatility across various applications.

Input Channel Specifications

This analog module includes four dedicated input channels. Each channel accepts either current or voltage signals. The current rating spans from 4 to 20 mA. Meanwhile, the voltage rating covers 0 to 10 V DC. This flexibility allows connection to diverse sensors and transmitters. For instance, you can connect pressure transducers or temperature sensors directly. Moreover, the inputs provide accurate signal conversion for your controller. The 170BAM09600 ensures reliable data acquisition from field devices.

Output Channel Capabilities

The output section features two analog output channels. These outputs deliver signals for actuator control. They support the same signal ranges as the inputs. Specifically, you can configure outputs for 4-20 mA or 0-10 V DC operation. Consequently, this module controls valves, drives, and other analog devices. The outputs provide smooth and precise control signals. This precision enhances overall process quality.

Operating Environment and Temperature

The 170BAM09600 operates within a defined temperature range. The ambient temperature for operation spans 0 to 40 degrees Celsius. This range suits most indoor industrial installations. Additionally, the module handles operating humidity up to 80% RH. This rating applies only to non-condensing conditions. Therefore, avoid installing it in areas with excessive moisture. Storage conditions mirror these humidity specifications. The module remains safe at 80% RH during storage.

Altitude and Mechanical Specifications

Altitude considerations are important for this module. The Schneider 170BAM09600 performs without derating up to 1000 meters above sea level. This capability ensures reliable operation at high-altitude locations. For installations above this altitude, performance may vary. Furthermore, the module weighs just 0.23 kg. This lightweight construction simplifies mounting and handling. Its compact design saves valuable cabinet space.

Application and Integration

This analog module suits numerous control applications. It excels in process monitoring and closed-loop control. Specifically, the 170BAM09600 connects temperature, pressure, and flow sensors to your PLC. The dual signal support simplifies integration with existing field devices. Moreover, its fast response time ensures timely control actions. You can use it in HVAC systems, water treatment, and manufacturing processes.

Installation Guidelines

Proper installation ensures optimal performance. Mount the 170BAM09600 securely on the Modicon Momentum bus. Ensure adequate airflow around the module. Avoid installing it near heat-generating equipment. Furthermore, use shielded cables for analog signal connections. This practice minimizes electrical noise interference. Always disconnect power before installing or removing the module. Follow standard safety procedures during installation.

Packaging and Logistics

We package the 170BAM09600 with care. The packaging protects against static discharge and physical impact. The package includes the analog module only. No cables, connectors, or mounting hardware are included. The lightweight package reduces shipping costs. We prepare all orders for immediate dispatch.

Packaging List

• 1 x 170BAM09600 Analog I/O Module

• 1 x Anti-static Protective Packaging

Shipping Information

We ship all orders through trusted international carriers. Your module will be delivered via FedEx, UPS, or DHL. Tracking information will be provided after shipment.

Frequently Asked Questions (FAQ)

1. What signal types does the 170BAM09600 support?
The 170BAM09600 supports both 4-20 mA current loops and 0-10 V DC voltage signals for inputs and outputs.

2. How many inputs and outputs does the Schneider 170BAM09600 have?
This Schneider module provides 4 analog inputs and 2 analog outputs for versatile process control.

3. What is the operating temperature range for the 170BAM09600?
The 170BAM09600 operates within an ambient temperature range of 0 to 40 degrees Celsius.

4. What is the maximum altitude for this I/O module?
This module performs reliably up to 1000 meters above sea level without any performance derating.

5. Which carriers do you use for shipping?
We ship the 170BAM09600 and all other items using FedEx, UPS, or DHL for fast, reliable delivery.
