Product Introduction

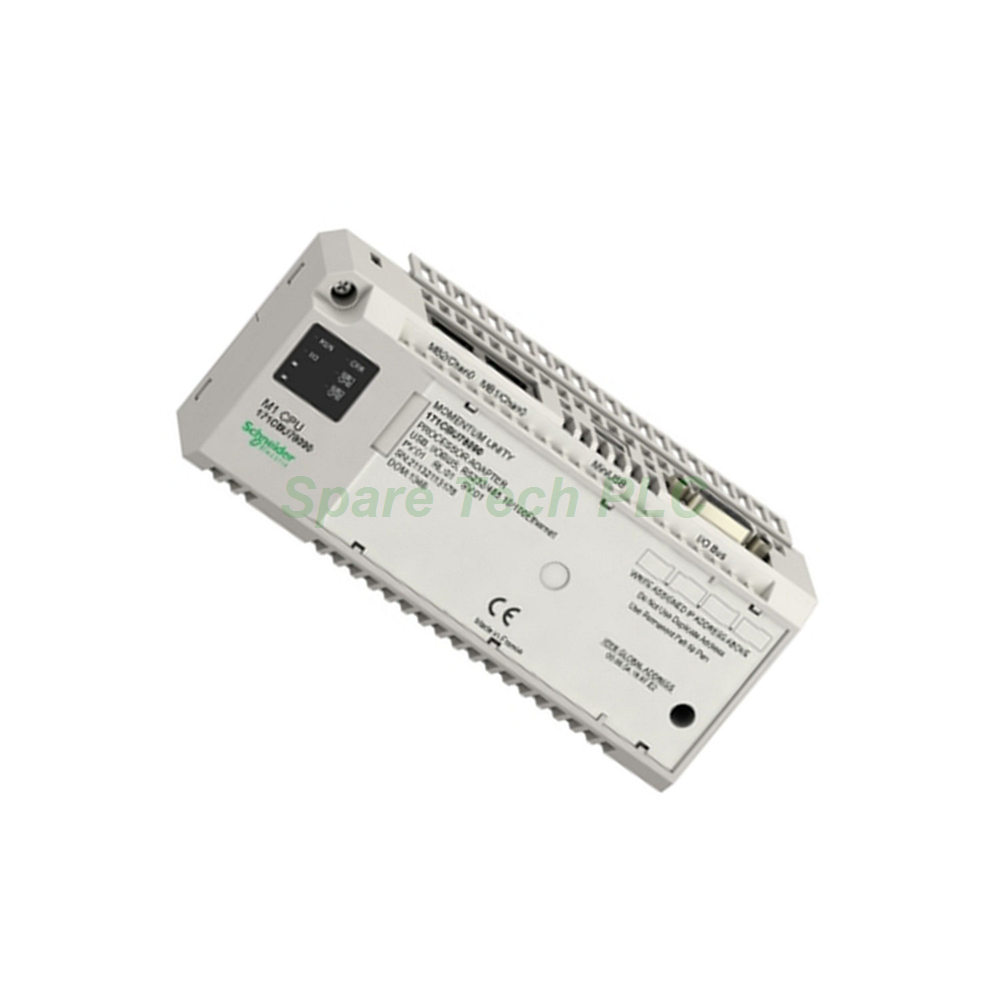

The Schneider Electric 171CBU78090 is a high-performance processor for the Modicon Momentum platform. It uses the Spear 320s core to manage complex logic efficiently. This unit offers a balanced solution for demanding industrial control applications.

Technical Specifications and Core Capabilities

The 171CBU78090 derives its strength from a robust technical design. For instance, it operates with a 32-bit word length to handle complex calculations effectively. Furthermore, its 333 MHz clock frequency ensures rapid instruction processing across all tasks.

Specifically, the processor's efficiency shines through its execution speed. In fact, it completes one Kinstruction in just 83 nanoseconds. Therefore, this speed proves critical for time-sensitive automation processes. Meanwhile, the unit supports a multidrop Modbus topology for seamless device communication.

Additionally, the processor offers substantial memory and I/O capacity. For example, it boasts 26,048 register words for extensive data storage. Moreover, the I/O limit reaches 2048 inputs and 2048 outputs. Consequently, this high capacity allows the 171CBU78090 to function as a central logic hub.

Electrical Characteristics and Communication

The electrical design guarantees stable operation under various conditions. To begin with, it accepts a supply voltage between 4.75 and 5.25 V DC. Thus, this precision ensures safe integration with sensitive power systems.

Furthermore, the processor supports connections to up to 32 Modbus devices. Hence, this feature enables robust multi-drop network configurations. Besides that, current consumption is rated at 500 mA at 5 V DC. Therefore, these electrical parameters make the 171CBU78090 highly versatile.

Mechanical Specifications and Environmental Durability

Physical Mounting and Protection

Schneider built this unit for standard industrial environments. Specifically, the 171CBU78090 mounts on a 35 mm symmetrical DIN rail. As a result, this method simplifies installation and ensures a secure panel fit. Additionally, its IP20 protection makes it suitable for indoor use.

Shock Resistance and Weight

Durability remains essential in demanding industrial settings. For instance, the 171CBU78090 offers shock resistance of 15 gn for 11 milliseconds. Therefore, this robust construction withstands common vibrations and impacts. Meanwhile, its net weight is only 0.159 kg, which eases handling.

Installation Guidelines

Proper installation ensures optimal processor performance. Follow these simple guidelines for a successful setup.

First, verify your control panel provides the correct 4.75 to 5.25 V DC power supply. Next, mount the processor securely onto the 35 mm DIN rail. Simply snap it into place until the locking mechanism engages fully. Finally, connect the processor to your Modbus network with up to 32 devices.

Packaging and Shipping Information

Your order includes the Schneider Electric 171CBU78090 processor unit only. Standard packaging guarantees safe product delivery. However, the package does not include mounting accessories or connection cables.

For delivery, we partner with trusted global carriers. Shipments are dispatched using FedEx, UPS, or DHL. The shipping weight is approximately 1.00 lbs (0.45 kg) . Moreover, tracking information is provided upon dispatch.

Frequently Asked Questions (FAQ)

1. What architecture does the 171CBU78090 processor use?
The 171CBU78090 uses the Spear 320s architecture. This 32-bit core enables efficient data handling and fast processing for complex automation logic.

2. How many I/O points can this processor handle?
This processor supports a substantial I/O capacity. Specifically, it manages 2048 inputs and 2048 outputs for large-scale control systems.

3. What is the typical execution speed of this unit?
The Schneider 171CBU78090 offers very fast processing. In fact, it executes one Kinstruction in exactly 83 nanoseconds for rapid scan times.

4. How many devices can I connect via Modbus?
The processor supports a multidrop Modbus topology. Therefore, you can connect up to 32 Modbus devices in a single network.

5. How should I mount this processor in a control cabinet?
Mounting this unit is straightforward. Simply clip the 171CBU78090 onto a standard 35 mm symmetrical DIN rail inside your panel.
