Schneider 170BAI03600 Analog Input Module 8ch 24V

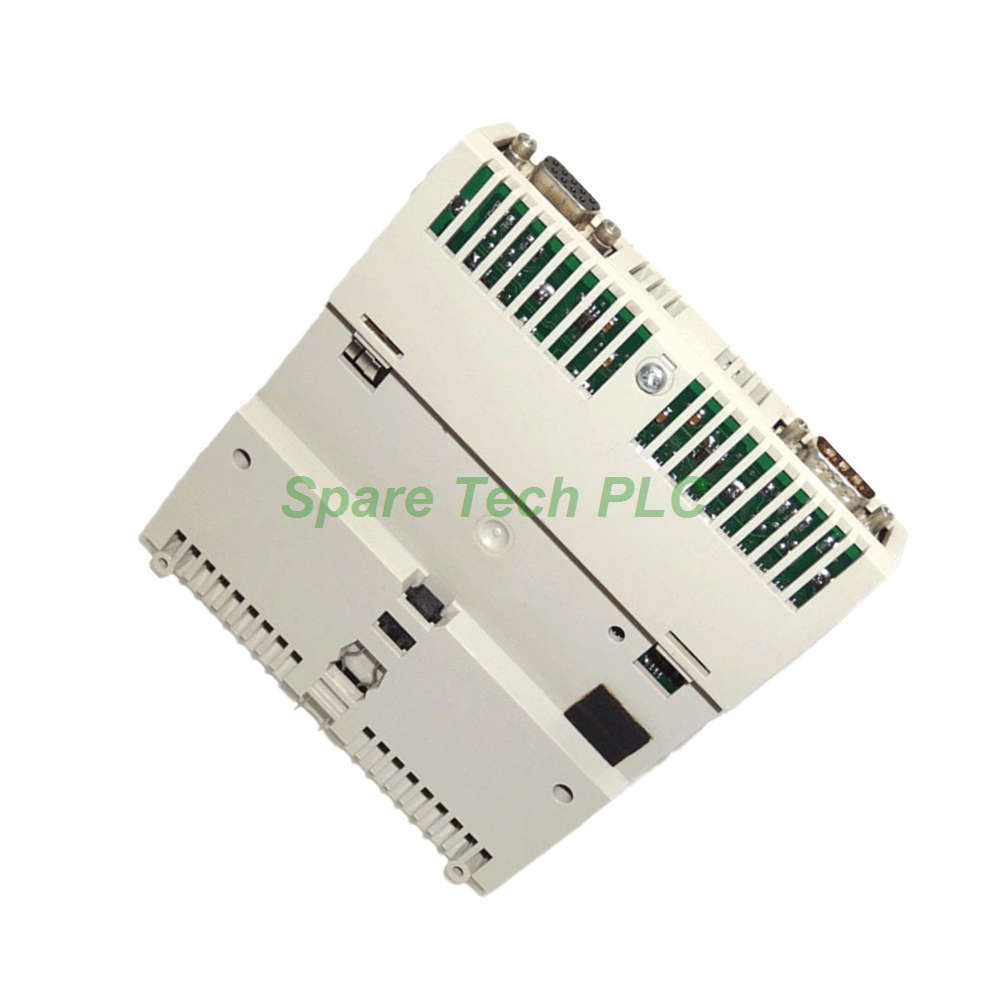

170BAI03600 Modicon Momentum Analog Input Module

Product Introduction

The 170BAI03600 module offers precise analog signal acquisition for your automation system. This analog input module belongs to the established Modicon Momentum product line. It features eight separate input channels on a single compact unit. The Schneider 170BAI03600 operates on a standard 24 V DC power supply. Its robust design ensures accurate measurements across various applications. Consequently, this module serves as a reliable front-end for process monitoring systems.

Channel Configuration and Signal Processing

This module provides eight analog input channels. These channels accept signals from diverse field devices. The 170BAI03600 handles multiple inputs simultaneously. This multi-channel capability reduces the total number of modules required. Therefore, it saves valuable rack space and reduces system costs. Each channel delivers consistent and accurate signal conversion. The module processes analog signals for your PLC or controller.

Power Specifications and Electrical Ratings

The Schneider 170BAI03600 operates at a nominal voltage of 24 V DC. This voltage matches standard industrial power supplies. Furthermore, it supports a maximum current rating of 1 A. This rating ensures sufficient power for all eight channels. Consequently, the module maintains stable operation under full load. Always verify your power supply capacity before installation. Proper power sizing prevents operational issues.

Operating Temperature Range

Temperature tolerance is critical for industrial modules. The 170BAI03600 operates across a broad temperature range. It functions effectively from 0 to 60 degrees Celsius. This range accommodates most factory floor conditions. The module maintains accuracy across this entire spectrum. Therefore, it suits installations near machinery or in control cabinets. Avoid placing it near excessive heat sources for optimal longevity.

Humidity and Environmental Resilience

Humidity resistance enhances module reliability. The 170BAI03600 tolerates operating humidity up to 80% RH. This specification applies to non-condensing conditions only. Storage humidity levels match this rating as well. Consequently, the module survives in moderately humid environments. However, avoid direct water exposure or condensation. These conditions could damage sensitive electronic components. Proper cabinet ventilation helps maintain appropriate humidity levels.

Altitude and Installation Considerations

The Schneider 170BAI03600 performs reliably at various altitudes. Its maximum operating altitude reaches 1000 meters above sea level. No performance derating occurs within this range. For installations above 1000 meters, consult the technical manual. Altitude affects cooling efficiency and insulation properties. Therefore, consider these factors during system design. The module's compact weight of 0.34 kg simplifies mounting.

Application and Integration

This analog input module suits numerous applications. It excels in process monitoring and data acquisition. Specifically, the 170BAI03600 connects to temperature sensors, pressure transmitters, and flow meters. Its 8-channel design handles multiple measurement points. Furthermore, it integrates seamlessly into Modicon Momentum systems. The module communicates analog values to your controller for processing.

Installation Best Practices

Follow these guidelines for successful installation. Mount the 170BAI03600 securely on the Momentum bus. Ensure adequate spacing around the module for airflow. Use shielded cables for all analog connections. This practice minimizes electromagnetic interference. Additionally, route signal cables away from power cables. Terminate unused channels properly to prevent noise coupling. Always power down the system before installation.

Packaging and Logistics

We package each 170BAI03600 with protective materials. The packaging prevents static damage during transit. The package contains the analog input module only. Cables and connectors are not included. The gross weight is 0.34 kg for shipping calculations. We prepare all orders for immediate dispatch.

Packaging List

• 1 x 170BAI03600 Analog Input Module

• 1 x Anti-static Protective Packaging

Shipping Information

We use premium courier services for all shipments. Your module will be delivered via FedEx, UPS, or DHL. You will receive tracking information after dispatch.

Frequently Asked Questions (FAQ)

1. How many channels does the 170BAI03600 provide?
The 170BAI03600 provides 8 analog input channels for multiple signal measurements.

2. What is the operating voltage for the Schneider 170BAI03600?
This Schneider module operates at 24 V DC with a maximum current rating of 1 A.

3. What temperature range does the 170BAI03600 support?
The 170BAI03600 supports an ambient operating temperature range from 0 to 60 degrees Celsius.

4. What is the maximum operating altitude for this module?
This module operates reliably up to 1000 meters above sea level without performance derating.

5. Which shipping carriers do you use?
We ship the 170BAI03600 and all orders using FedEx, UPS, or DHL for fast and secure delivery.
