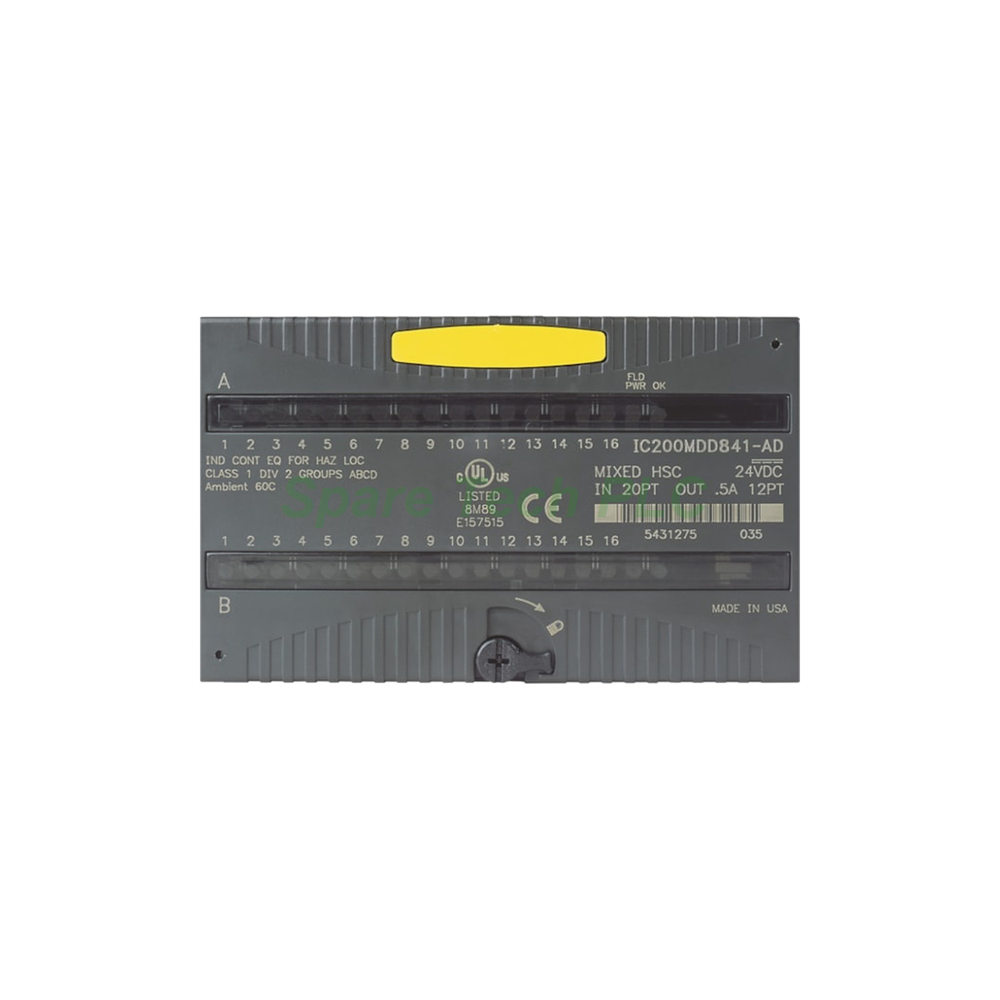

IC200MDD841 GE Fanuc VersaMax Counter Module

GE IC200MDD841 High-Speed Counter Module for VersaMax Systems

Product Introduction

The IC200MDD841 high-speed counter module comes from GE Fanuc and belongs to the VersaMax product line. This unit combines discrete inputs and outputs in one compact package. Specifically, it provides 20 positive logic inputs and 12 positive logic outputs. These 32 I/O points are configurable for different tasks.

Industrial users often need fast pulse processing for position sensing or motion control. The IC200MDD841 meets this need with 4 Type-A high-speed counters. These counters process pulse signals at speeds up to 80 KHz. In the default setup, the module uses 4 high-speed counters, 8 standard outputs, and 12 standard inputs. Therefore, it fits many factory automation applications.

The module operates on 24 V DC for inputs and outputs. It draws 30 mA from a 5 V backplane power source. External output devices require a separate power supply. Besides, the unit offers error detection and can display status data up to 13 words. Onboard LED indicators show device status clearly.

Technical Specifications

The table below lists the main technical data for the IC200MDD841 module.

The IC200MDD841 supports several configuration modes. For instance, users can set pulse width modulation, ramping pulse train, pulse train, or high-speed counter modes. However, the module has no internal fuses or individual channel isolation. Therefore, external protection may be necessary for some installations.

Mechanical and Environmental Parameters

The IC200MDD841 has compact dimensions for tight panel spaces. Its length measures 66.8 mm (2.63 inches). The width is 110 mm (4.3 inches). Meanwhile, the depth reaches 50 mm (1.956 inches). These sizes help with efficient cabinet layout.

The module works in standard industrial environments. It relies on the backplane for logic power. In addition, a separate source powers all external output devices. The 24 V DC I/O design suits many control panels. Proper wiring and grounding reduce electrical noise. As a result, the module performs reliably in demanding settings.

Installation Guide

First, turn off all power before mounting the IC200MDD841 module. Next, align the unit with the VersaMax backplane connector. Then, slide it firmly into place until it locks. After that, connect the 5 V backplane power source. Meanwhile, prepare a separate 24 V DC supply for output devices.

Furthermore, follow the terminal assignments carefully. The 20 inputs and 12 outputs have specific wiring points. Use shielded cables for high-speed pulse signals. Besides, keep signal wires away from high-power lines. Finally, verify all connections before applying power. Check the LED indicators to confirm proper operation.

Packaging List

• 1 x GE Fanuc IC200MDD841 High-Speed Counter Module

• 1 x Anti-static protective bag

• 1 x Original cardboard box

FAQ

Q1: What is the main function of the IC200MDD841 module?
A1: The IC200MDD841 acts as a high-speed counter and mixed discrete I/O module. It processes pulse signals up to 80 KHz.

Q2: How many high-speed counters does this module have?
A2: In the default configuration, the module provides 4 Type-A high-speed counters. Each counter handles fast pulse inputs.

Q3: What power supply does the IC200MDD841 require?
A3: The module uses a 5 V backplane power source. Additionally, external output devices need a separate 24 V DC supply.

Q4: Does the IC200MDD841 have internal fuses or isolation?
A4: No, this module lacks internal fuses and individual channel isolation. Therefore, users should add external protection when needed.

Q5: How fast can the IC200MDD841 process pulse signals?
A5: The high-speed counters process pulse signals at a maximum speed of 80 KHz. This rate suits many motion and counting tasks.
