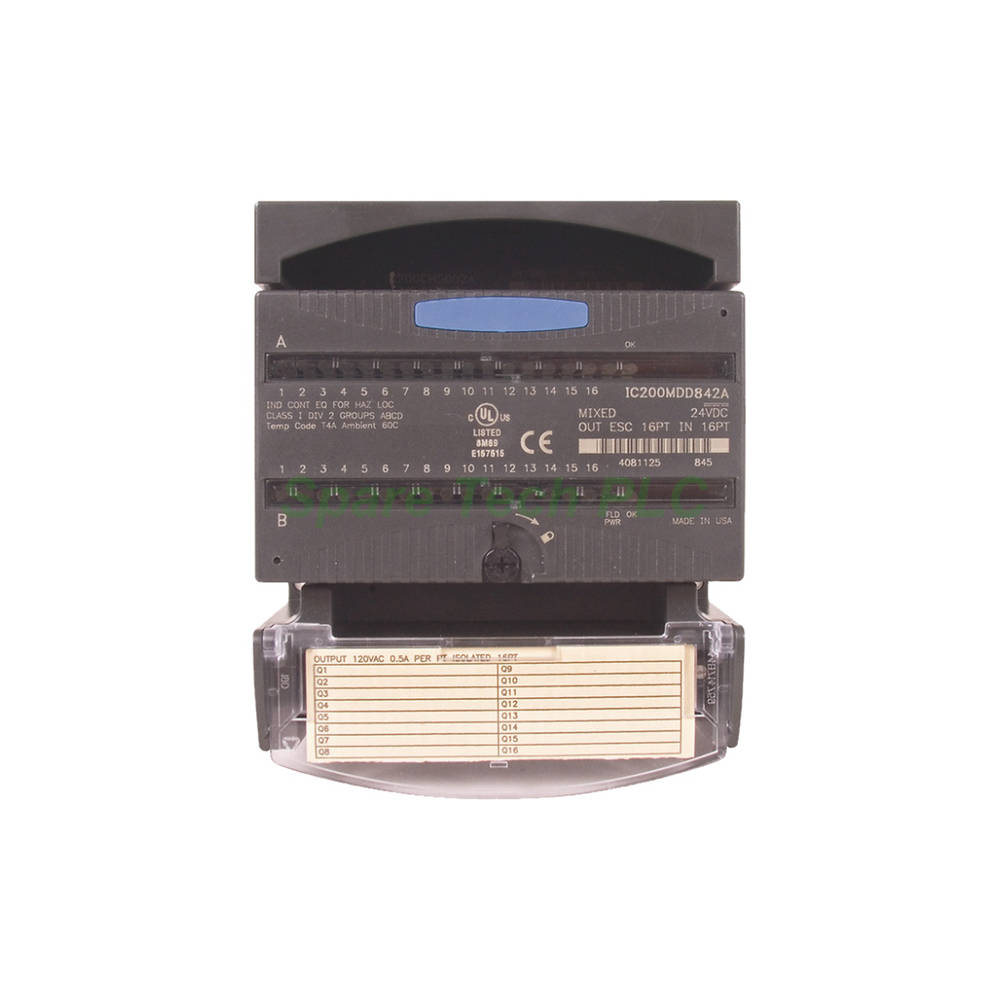

GE IC200MDD842 VersaMax Mixed I/O Module 32-Point

GE IC200MDD842 Discrete Mixed I/O Module for VersaMax Systems

Product Introduction

The IC200MDD842 discrete mixed I/O module comes from GE Intelligent Platforms and GE Fanuc. It belongs to the VersaMax series and combines inputs and outputs in a single device. Specifically, this module provides up to 32 I/O points arranged in three groups. One group holds 16 discrete outputs, while the other two groups hold 8 discrete inputs each.

Industrial control panels often need a compact way to handle both input and output signals. The IC200MDD842 solves this problem by integrating both functions into one unit. As a result, engineers save panel space and reduce wiring complexity. The input points accept either positive or negative logic. However, negative logic operation requires an upgrade to the IC200MDD842B version. This flexibility helps the module fit different wiring schemes and signal conventions.

Technical Specifications

The table below summarizes the key technical data for the IC200MDD842 module.

Each input and output point operates on a nominal voltage of 24 V DC. Moreover, every point handles a load current of 0.5 A at 30 V DC. The response time for both inputs and outputs measures 0.5 milliseconds. This fast response suits time-sensitive control tasks. Meanwhile, the module includes electronic short circuit protection for its outputs. It also provides electronic overcurrent protection and free-wheeling diodes. However, the module does not support channel isolation.

Diagnostic and Status Features

The IC200MDD842 includes built-in diagnostic functions. These functions detect problems such as shorts and overloads. Furthermore, they generate fault messages when such conditions occur. This early warning capability helps maintenance teams respond quickly. Consequently, downtime decreases and system reliability improves.

Every input and output point has a corresponding LED indicator. These LEDs show the current status of each point. Green and amber colors represent different input and output states. For instance, a green LED may indicate an active input, while amber shows an output status. Therefore, technicians can verify wiring and signal activity at a glance. This visual feedback simplifies troubleshooting during commissioning and routine maintenance.

Mechanical and Environmental Parameters

The IC200MDD842 uses the standard VersaMax form factor. It mounts easily on a DIN rail inside a control cabinet. The compact housing fits tight panel layouts. Additionally, the module relies on the backplane for logic power. External output devices need a separate field power supply.

The 24 V DC design matches common industrial power standards. Proper grounding and shielding reduce electrical noise. Besides, the module performs well in typical factory environments. Keep the cabinet within recommended temperature and humidity limits. Also, allow adequate airflow around the module. These practices extend service life and maintain stable operation.

Installation Guide

First, switch off all power before starting any installation work. Next, align the IC200MDD842 with the VersaMax backplane connector. Then, push the module firmly until it clicks into place. After that, connect the field wiring to the correct terminals. Remember that one group holds 16 outputs and two groups hold 8 inputs each.

Furthermore, use the correct wire gauge for the 0.5 A load current. Tighten terminal screws to the specified torque. Meanwhile, keep input and output cables separated to reduce interference. Finally, apply power and check the LED indicators. Confirm that each point responds correctly before full operation.

Packaging List

• 1 x GE Fanuc IC200MDD842 Discrete Mixed I/O Module

• 1 x Anti-static protective bag

• 1 x Original cardboard box

FAQ

Q1: What is the main function of the IC200MDD842 module?
A1: The IC200MDD842 combines discrete inputs and outputs in one unit. It provides 32 I/O points for VersaMax control systems.

Q2: How many inputs and outputs does this module offer?
A2: The module provides 16 discrete inputs and 16 discrete outputs. These points are arranged in three separate groups.

Q3: What voltage does the IC200MDD842 operate on?
A3: Each input and output point runs on a nominal 24 V DC. The load current reaches 0.5 A at 30 V DC.

Q4: Does this module support negative logic inputs?
A4: Yes, but negative logic requires the upgraded IC200MDD842B version. The base version supports positive logic operation.

Q5: What protection features does the IC200MDD842 include?
A5: The module offers electronic short circuit protection, overcurrent protection, and free-wheeling diodes. However, it lacks channel isolation.
