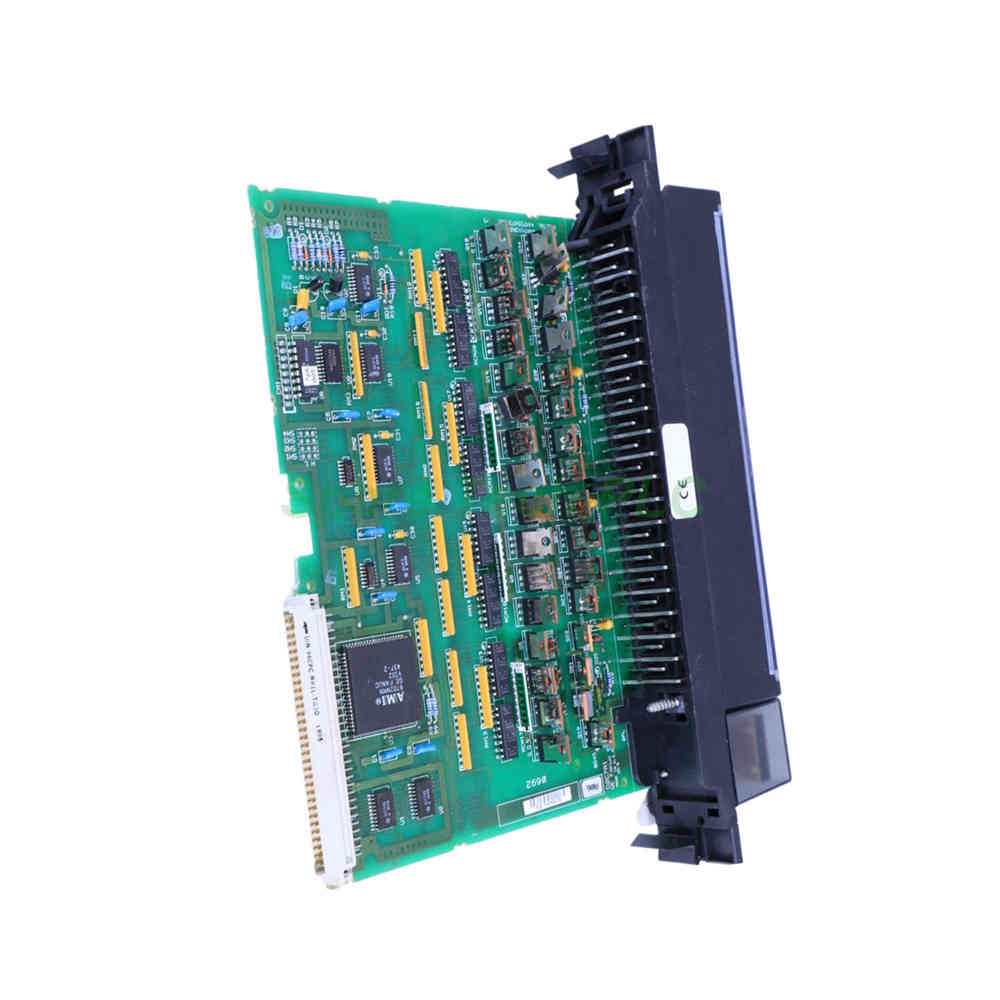

The IC697MDL752 from GE Fanuc is a high-density discrete output module designed for the Series 90-70 programmable logic controller platform. It provides 32 output points arranged in four isolated groups of eight. Each point supports 0.5 A continuous current, while each group handles up to 2 A. This module operates on a nominal 12V DC supply, with a permissible range of 10 to 15V DC. Furthermore, its positive logic design simplifies integration with standard DC loads such as relays, solenoids, and indicator lamps.
This output module is particularly suitable for large-scale machine systems that demand quick and dependable switching. For instance, it responds in just 1 ms for both turn-on and turn-off transitions. Additionally, the IC697MDL752 incorporates a robust isolation rating of 1500V, which protects the backplane and CPU from voltage spikes. Consequently, it ensures stable operation even in electrically noisy environments.
The GE Fanuc IC697MDL752 requires only 0.25 A from the backplane, making it energy-efficient for high-channel-count systems. Its maximum inrush current is 10 A for 20 ms, which accommodates loads with high start-up surges. The output voltage drop is limited to 1V at 2Ω, ensuring that connected devices receive adequate power. Meanwhile, the module meets VME bus standard C.1 revision, guaranteeing compatibility with other Series 90-70 components.
Moreover, the IC697MDL752 features a special keying system that prevents incorrect insertion into the rack. This design reduces installation errors and saves troubleshooting time. The wiring terminal board accepts AWG #22 to #14 wires, offering flexibility for field wiring practices.
The IC697MDL752 is built for industrial durability. It operates across a wide temperature range and withstands vibration and shock commonly found in factory floors. Its plastic housing cover includes accessible clips on the backside, enabling quick removal without tools. Additionally, the module’s compact standard size fits any Series 90-70 rack slot, optimizing panel space.
Installing the IC697MDL752 is a straightforward process. First, ensure the PLC rack is de-energized. Next, align the module with the selected slot and push it firmly until the connectors seat properly. Then, secure the module with the retaining screws. For wiring, strip the wire ends and insert them into the terminal board according to the group assignments. Finally, verify each connection before powering up. Remember to use twisted-pair cables for long runs to minimize inductive noise. Furthermore, group wiring should be organized using cable ducts for better maintenance access.
Each package contains one GE Fanuc IC697MDL752 output module. The unit is packed in a sturdy box with protective foam. Dimensions and weight are optimized for economical shipping. We dispatch all orders via FedEx, UPS, or DHL with full tracking and insurance. Please be aware that certificates and warranty documents are not included in the packing list.
1. What is the maximum current per output point on the IC697MDL752?
Each point can deliver 0.5 A continuously. The total group current must not exceed 2 A.
2. Can the IC697MDL752 drive inductive loads directly?
Yes, but we recommend using external flyback diodes for inductive loads to protect the module from voltage spikes.
3. How do I remove the IC697MDL752 from the rack?
Press the plastic clips on the back of the housing cover, then gently pull the module out.
4. What wire gauge is compatible with this module?
The terminal board accepts AWG #22 to #14 solid or stranded wires.
5. Is the IC697MDL752 compatible with other Series 90-7?
Yes, it works with all Series 90-70 CPUs and racks that support the VME standard C.1 revision.
| Brand Name | |
| Model No. | IC697MDL752 |
| Product Type | Discrete Output Module |
