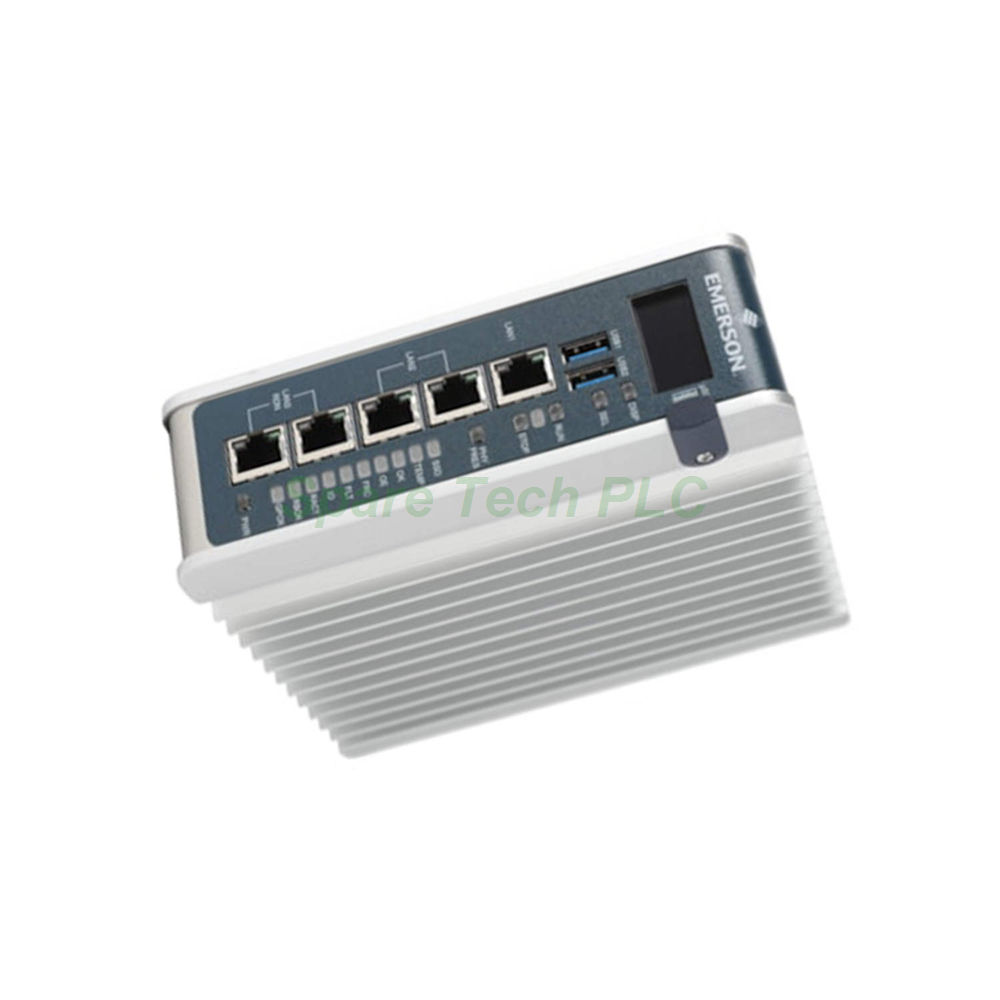

The IC695CPE400 functions as a rackless Central Processing Unit within the PACSystem RX3i platform. This DIN-rail-mounted controller delivers substantial processing power through its 1.2 GHz AMD G Series quad-core microprocessor. Additionally, it offers 64 Mbytes of configurable user memory. This CPU supports up to 768 program blocks. Each block can reach a maximum size of 128 KB. Consequently, it handles complex automation tasks with ease. Users can program this module using multiple languages. For instance, these include Ladder Diagram, Structured Text, Function Block Diagram, and C. This flexibility accommodates various programming preferences and application requirements.
The IC695CPE400 runs on a powerful 1.2 GHz AMD G Series quad-core processor. This robust microprocessor ensures fast execution of control logic. Meanwhile, the module comes with 64 MB of SRAM and Flash memory. This memory capacity supports extensive program storage and data handling. Specifically, the I/O memory accommodates up to 32 Kbits of discrete input and output points. Additionally, it handles 32 KWords of analog input and analog output data. The module also supports bulk memory (%W) for efficient data exchanges between different parts of the application.
This CPU excels in connectivity. The front panel features five LAN ports. These support 10/100/1000 Mbps communication speeds. Furthermore, they handle both full and half-duplex modes. LAN 2 and LAN 3 function as embedded switch ports. LAN 3 specifically provides high-speed synchronization for redundant processor configurations. Moreover, LAN 1 and LAN 2 communicate with the programming station using the SRTP protocol. LAN 2 also supports media redundancy protocol for enhanced network reliability. Additionally, the module includes two USB interfaces on the front panel. For serial communication, it offers one RJ45 serial COM port. A video display port is also available. Finally, an IICS Cloud Port (EFA) is located on the rear panel.
The IC695CPE400 supports a wide range of industrial communication protocols. These include SRTP, Modbus TCP, Ethernet Global Data (EGD), PROFINET, and MRP. Additionally, it serves as an OPC-UA server. This extensive protocol support ensures seamless integration with various devices and systems. Security features are also robust. For example, the module includes secure boot functionality and a trusted platform module. Furthermore, firmware updates are encrypted. These measures protect against unauthorized access and cyber threats. Meanwhile, an OLED display on the front panel shows essential status information. This includes operating mode updates, fault alerts, and IP addresses.
This module is designed for DIN-rail mounting. The package also includes a panel-mounting adapter plate. This provides installation flexibility. The IC695CPE400 requires an external 24 VDC supply voltage. It consumes approximately 20 Watts of power. The module operates reliably in industrial environments. Specifically, the operating temperature ranges from 0°C to 60°C. Meanwhile, relative humidity should remain between 5% and 95% (non-condensing). Six user-accessible pushbuttons are available on the front panel. These allow for easy local operation.
1. DIN-Rail Mounting
First, mount the IC695CPE400 onto a standard DIN rail. Click the module firmly into place. Ensure the locking mechanism engages securely. Alternatively, use the included panel-mounting adapter for panel installation.
2. Power Connection
Next, connect an external 24 VDC power supply to the module. Verify the voltage polarity matches the module's specifications. The module draws approximately 20 Watts. Ensure the power supply provides sufficient current capacity.
3. Network Configuration
Then, configure the Ethernet ports for your network. LAN 1 typically connects to the programming station. Additionally, LAN 2 and LAN 3 handle high-speed communication and redundancy. Configure IP addresses accordingly using the programming software.
4. Programming and Logic Loading
Finally, download your control program to the IC695CPE400. Use GE Fanuc's programming software. Select your preferred programming language. These include Ladder Diagram, Structured Text, Function Block Diagram, or C. After downloading, place the CPU in RUN mode. Observe the OLED display for operating status confirmation.
(1) x IC695CPE400 CPU Module
(1) x Panel-Mounting Adapter Plate
(1) x Product Information Sheet
(Note: The energy pack IC695ACC403 and cable IC695CBL003 are not included. This package does not contain certificates or warranty documents.)
We ship all orders using premier courier services. This ensures rapid and dependable delivery worldwide. We primarily use Fedex, UPS, and DHL. Tracking numbers will be provided upon shipment dispatch.
1. Can the IC695CPE400 support a redundant controller configuration?
Yes, the IC695CPE400 supports controller redundancy. Use LAN 3 as the dedicated synchronization port between two redundant processors. This ensures seamless failover and high system availability.
2. What programming languages does the IC695CPE400 support?
This module supports several programming languages. These include Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and C. Users can choose the language that best suits their application.
3. What communication protocols does this CPU support?
The IC695CPE400 supports SRTP, Modbus TCP, EGD, PROFINET, and MRP. Additionally, it functions as an OPC-UA server. This wide protocol support facilitates integration with diverse automation equipment.
4. How do I check the module's status?
The front panel features an OLED display. This screen shows operating mode, IP addresses, and fault alerts. Additionally, the six user-accessible pushbuttons enable local navigation and control.
5. What accessories are compatible with the IC695CPE400?
Compatible accessories include the IC695ACC403 energy pack and the IC695CBL003 cable. Meanwhile, the module also features a micro-SD card slot and two USB ports for extended data transfer.
| Brand Name | |
| Model No. | IC695CPE400 |
| Product Type | Processor Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
