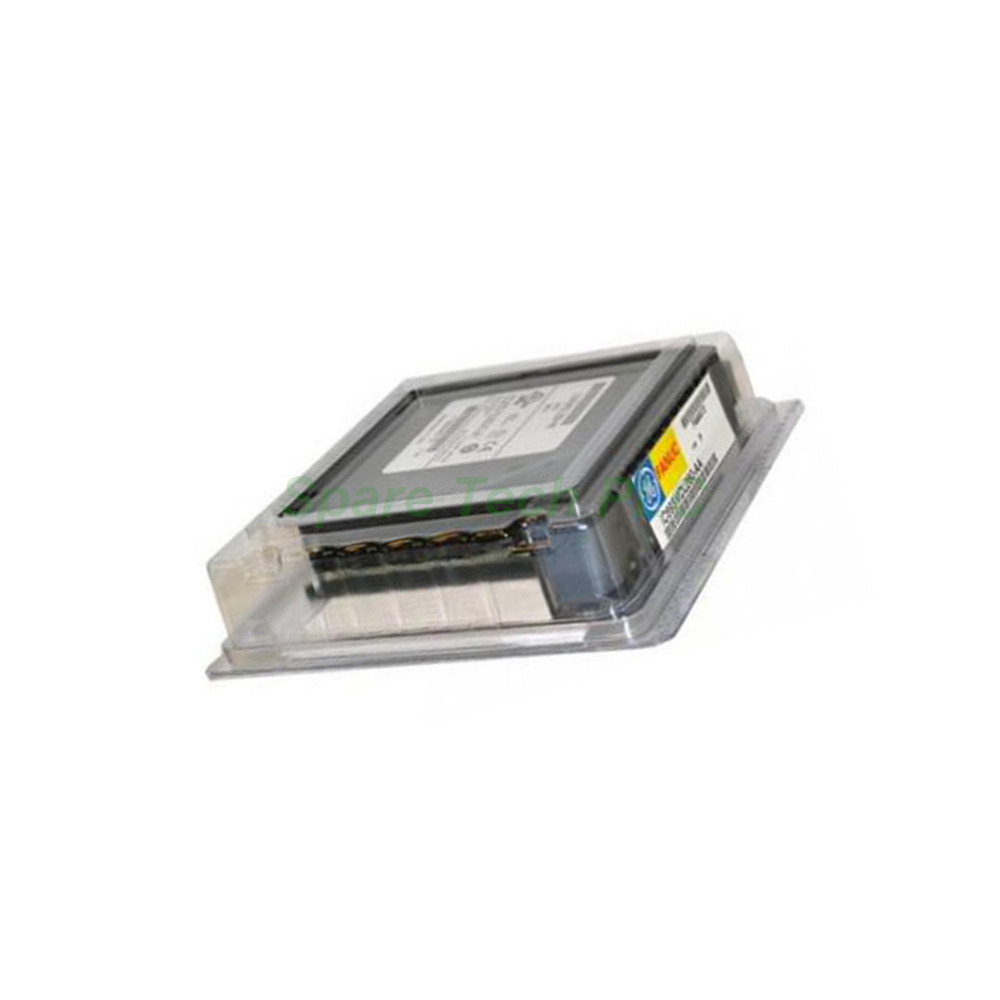

GE Fanuc IC693MDL260 120V AC Input Module

Product Introduction

The GE Fanuc IC693MDL260 module serves as a reliable grouped input solution within the Series 90-30 programmable logic controller family. This module operates at 120 Volts AC and delivers 32 isolated input points. These points are evenly distributed into four separate groups, with each group containing eight inputs. Isolation exists between every group, yet all inputs share one common return connection. Users can install this module in any I/O slot, whether input or output, offering great flexibility for system configuration. Additionally, the IC693MDL260 supports both spring-style and box-style terminal blocks, making field wiring straightforward. The red bands on the door card clearly identify this unit as a high-voltage device, ensuring safe handling during installation.

Key Technical Specifications

The IC693MDL260 module operates within an input voltage range of 0 to 132 Volts AC, with a rated voltage of 120 V AC. Its frequency compatibility covers 50/60 Hz, making it suitable for global power systems. At rated voltage, the input current measures 12 mA per point. This module consumes only AC power and does not require a DC power source. It features 32 individual LED indicators, numbered from 1 to 32, which clearly show the ON/OFF state of each input point. A separate TB LED provides visual confirmation that the detachable terminal block is properly seated. When this TB LED turns red, it signals that the block has been removed or is not locked in place. For systems using an RX3i CPU, the IC693MDL260 sends a status message under this condition. However, this feature does not function when used with a Series 90-30 CPU.

DIP Switch and Filter Control

A significant advantage of the GE Fanuc IC693MDL260 lies in its adjustable input filtering. The module includes a DIP switch located on the rear panel. Operators can use this switch to select different input filter times, tailoring the module's response to match specific application needs. This feature proves especially useful in noisy industrial environments where momentary voltage spikes could otherwise cause false triggers. By adjusting the filter time, users reduce nuisance trips and improve system reliability. Therefore, the IC693MDL260 offers not just basic input functionality but also fine-tuned control over signal conditioning.

Installation Guidelines

Installing the IC693MDL260 module requires attention to a few practical details. First, ensure the system power is completely turned off before inserting or removing the module. The module fits into any standard Series 90-30 I/O slot. When performing field wiring to AC devices, remember to account for additional shroud depth. This extra clearance helps accommodate the terminal block and prevents accidental contact with live parts. For the terminal block, choose either the spring-style or box-style variant based on your wiring preference. Both types work seamlessly with the GE Fanuc IC693MDL260. After wiring, firmly lock the detachable terminal block into place. Verify that the TB LED turns off (or remains green) to confirm proper seating. Finally, set the DIP switch to your desired filter time before powering up the system.

Mechanical and Environmental Parameters

The IC693MDL260 module is built for rugged industrial use. It withstands ambient temperatures ranging from 0 to 60 degrees Celsius during operation. Storage temperatures extend from -40 to 85 degrees Celsius. Relative humidity tolerance covers 5% to 95% non-condensing. The module's compact design allows for high-density mounting in the Series 90-30 rack. Its lightweight construction, at approximately 0.68 kg, reduces mechanical stress on the backplane. Vibration and shock resistance meet standard IEC 61131-2 requirements, ensuring dependable performance in machine shops, process plants, and other harsh settings.

Packaging List

Each shipment of the GE Fanuc IC693MDL260 includes the following items:

• GE Fanuc IC693MDL260 module (one unit)

• Detachable terminal block (spring-style or box-style, as ordered)

• Installation guide (printed quick-start sheet)

• DIP switch configuration label

Note: No certificates or warranty documents are included in the package. These are provided separately upon request.

Shipping Information

All orders for the IC693MDL260 module are shipped via major international carriers. We typically use FedEx, UPS, or DHL for reliable and traceable delivery. Standard shipping times range from 3 to 7 business days depending on the destination. Expedited options are available at checkout.

Frequently Asked Questions

1. Can the IC693MDL260 module be installed in any Series 90-30 slot?
Yes. You can place this module in any input or output slot within the Series 90-30 rack. There are no slot restrictions for this grouped input module.

2. Does the IC693MDL260 work with both 50 Hz and 60 Hz systems?
Absolutely. The module accepts 50/60 Hz frequency inputs, so it integrates seamlessly into power grids worldwide without any adjustment.

3. What does the red TB LED indicate on the IC693MDL260?
The red TB LED means the detachable terminal block is either missing or not properly locked. For RX3i CPU systems, the module sends a status alert; for Series 90-30 CPUs, this alert does not transmit.

4. How do I set the input filter time on the IC693MDL260?
Use the DIP switch located on the rear of the module. Refer to the configuration label or user manual for the specific switch positions that correspond to different filter times.

5. Can I use spring-style terminal blocks with the IC693MDL260?
Yes. The IC693MDL260 accepts both spring-style and box-style terminal blocks. Choose the type that best suits your wiring practice and tool availability.
