IC697MDL640 125V DC Logic PLC Module GE Fanuc

IC697MDL640 Input Module – High-Voltage DC Sensing with Flexible Logic

Product Introduction

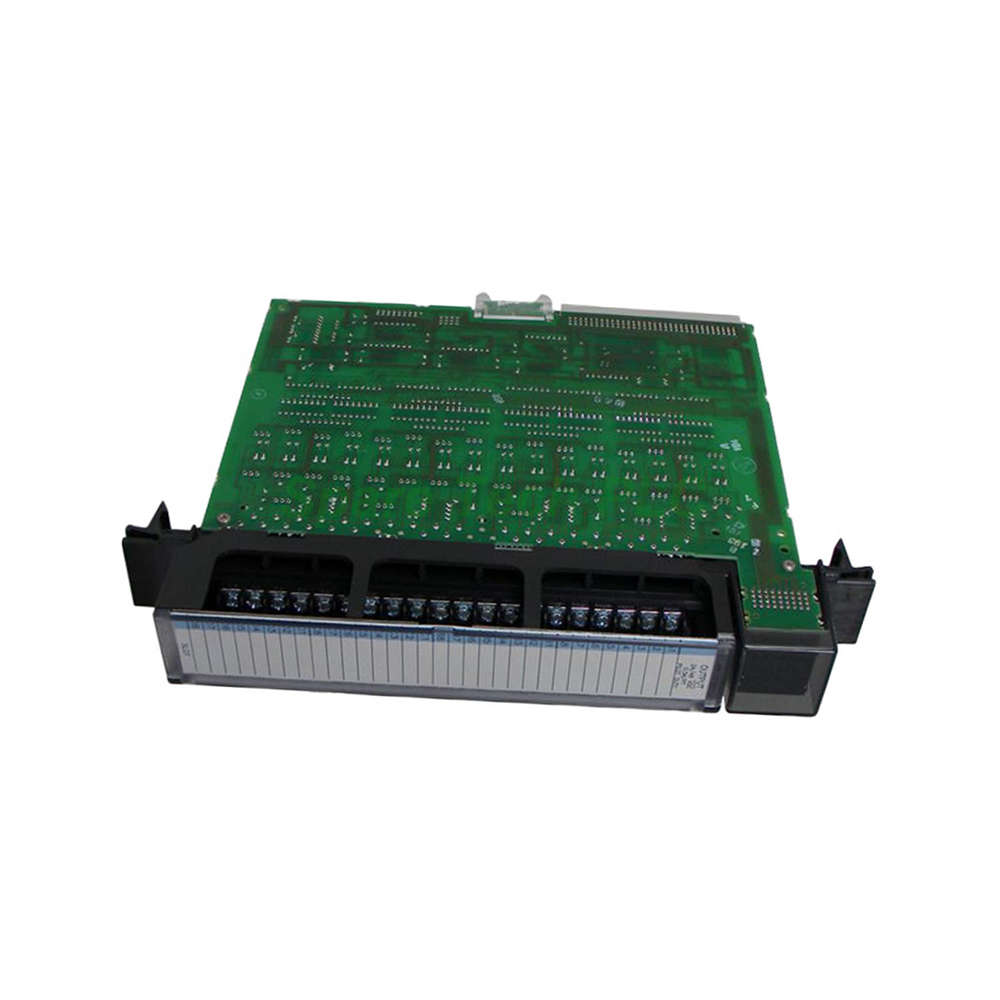

The IC697MDL640 from GE Fanuc serves as a rugged discrete input module for the Series 90-70 programmable controller system. This unit delivers 16 input points across four isolated groups of four points each. It operates at a nominal 125V DC and accepts a wide range from -35 to 145V DC. Therefore, this module fits perfectly into high-voltage DC environments like power plants and heavy machinery lines.

This module stands out because it supports both positive and negative logic configurations. You can connect proximity switches, pushbuttons, or selector switches without worrying about logic mismatches. Moreover, the IC697MDL640 includes a selectable input filter of either 1 ms or 10 ms. You choose the setting based on your speed and noise immunity needs. This flexibility makes the module suitable for diverse industrial applications.

Key Technical Specifications

The GE Fanuc IC697MDL640 draws only 0.3 A from the backplane, so it does not overload the rack power supply. Each input point consumes 5 mA at rated voltage, which aligns with typical high-impedance DC input behavior. The module also meets IEC standards for input current-voltage characteristics, ensuring reliable performance under various conditions. Additionally, the mechanical keying feature prevents incorrect insertion, saving you time during replacement or system upgrades.

Software handles all configuration tasks for the IC697MDL640, so you do not need jumpers or DIP switches. You set input references and filter times through the programming software running on Windows or MS-DOS. Communication occurs via the SNP port or Ethernet TCP/IP, which integrates smoothly with your existing engineering workstations.

Mechanical and Environmental Ratings

The IC697MDL640 withstands harsh industrial conditions without trouble. It operates reliably across a wide temperature range and resists vibration, humidity, and electrical noise. LED indicators on the top side show the ON/OFF status for each input point on the PLC logic side. These lights give you instant visual feedback, making diagnostics quick and straightforward.

Installation and Configuration Guidance

Installing the IC697MDL640 involves only a few simple steps. First, power down the Series 90-70 rack completely. Next, align the module with your chosen slot and slide it in until the backplane connector locks into place. Then, tighten the retaining screws to secure the module firmly. For wiring, connect your field devices to the terminal board following the group assignments. After restoring power, launch your programming software and configure the logic type and filter setting. For instance, choose 1 ms for fast-response applications or 10 ms for noisy environments. Finally, test each input point by observing the LED indicators for correct operation.

Packaging and Shipping Details

Your shipment includes one GE Fanuc IC697MDL640 input module, packed with anti-static protection. The carton measures 16.5 x 31.5 x 5 cm and weighs approximately 0.42 kg. We dispatch all orders worldwide through FedEx, UPS, or DHL, with full tracking and insurance. Please note that certificates and warranty documents do not come with the packing list.

Frequently Asked Questions (FAQ)

1. What voltage range does the IC697MDL640 accept?
It accepts -35 to 145V DC, with a nominal rating of 125V DC. Never apply AC voltage to this module.

2. Can I use the IC697MDL640 with 24V DC sensors?
Yes, but verify that the sensor output falls within the ON-state threshold for this 125V DC logic module.

3. How do I change the input filter setting?
You change it through the Series 90-7 software configuration tool. No physical switches or jumpers exist.

4. What does the interrupt input feature do?
You can configure one input as an interrupt, which triggers an immediate CPU response for critical events.

5. Is the IC697MDL640 compatible with all Series 90-70 CPUs?
Yes, it works with all Series 90-70 CPUs that support the VME bus standard. Check firmware for best results.
