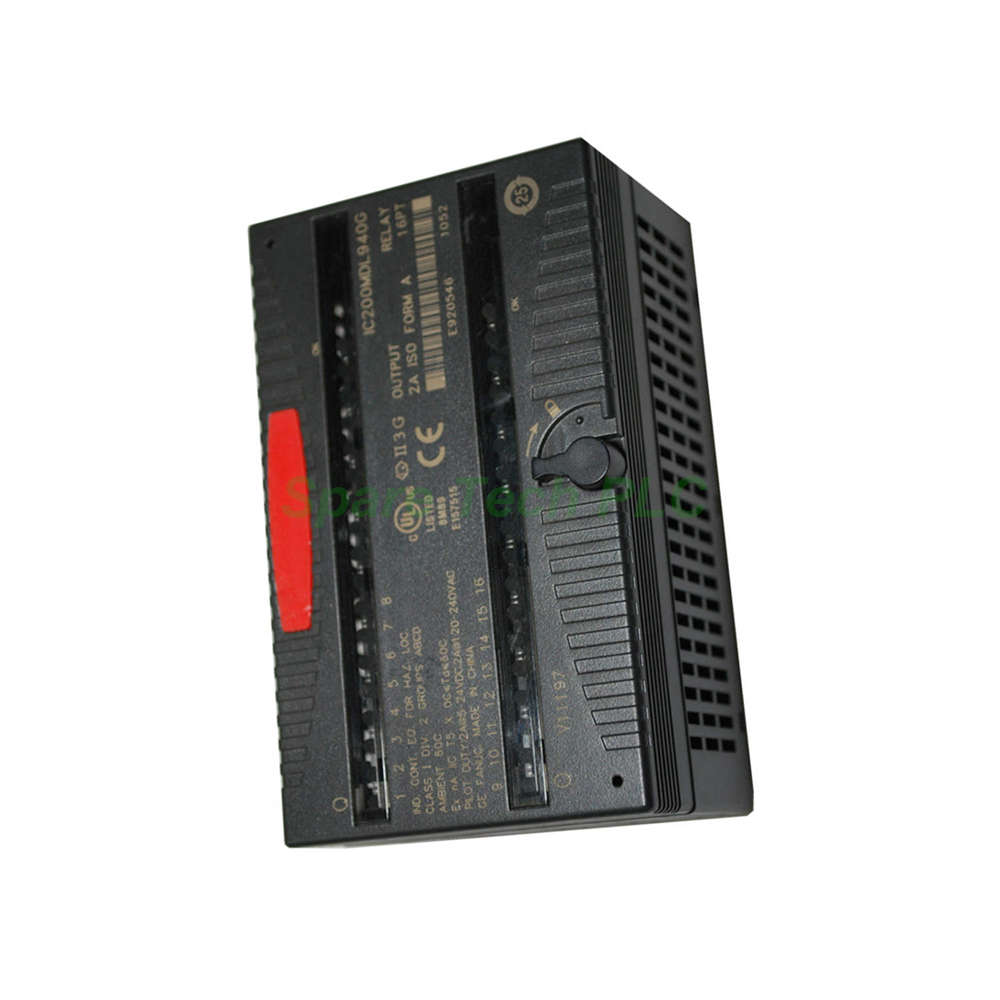

The IC200MDL940 is a high-density relay output module designed for the VersaMax I/O series, originally developed by GE Fanuc. This module offers sixteen (16) individually isolated Normally Open (Form A) contacts, providing flexible switching capabilities for various field devices. Each contact supports load voltages from 0 to 125 VDC (with nominal 5/24/125 VDC) and 0 to 265 VAC at 47 to 63 Hz (with nominal 120/240 VAC).
Because each output is isolated from the others, you can wire different voltage sources to individual channels within the same module. This feature significantly reduces wiring complexity and enhances system flexibility. The GE Fanuc IC200MDL940 is ideal for energizing relay coils, solenoid valves, pilot lamps, contactors, and other inductive or resistive loads.
The IC200MDL940 uses a fixed coil, moving armature relay design with silver alloy contacts for reliable and durable switching. Each contact is rated at 2.0 A maximum for resistive loads across 5–265 VAC and 5–30 VDC, while for 31–125 VDC resistive loads, the rating is 0.2 A. The minimum load current is 10 mA per point, ensuring compatibility with low-current devices.
Output response time is consistent at 10 ms for both open-to-close and close-to-open transitions. The maximum switching frequency reaches 20 cycles per minute when driving inductive loads. Furthermore, the module draws a maximum backplane current of 490 mA, and it requires an external power supply for the load side. There is no output leakage current because the contacts are physically open when de-energized.
Isolation ratings are robust: 250 VAC continuous between user input and logic/frame ground, and 1500 VAC for one minute. Each channel is individually isolated, so group-to-group isolation is not applicable but channel-to-channel independence is guaranteed. The maximum output voltage drop is 0.3 V, keeping power loss minimal.
The IC200MDL940 operates within a temperature range of 0°C to 60°C, making it suitable for most industrial control cabinets. Storage temperatures from -40°C to 85°C are acceptable. Humidity tolerance is 5% to 95% non-condensing, so the module performs reliably in humid environments.
Additionally, this module meets CE and cULus standards and is approved for Class 1, Division 2 hazardous locations. It withstands vibration of 1G at 40 to 150 Hz and shock of 15G for 11 milliseconds. The front panel includes a lock/unlock lever for secure installation, and each output point has a dedicated LED indicator that lights up when the corresponding CPU logic bit is set to 1.
Installing the GE Fanuc IC200MDL940 requires a VersaMax I/O carrier or backplane. First, ensure the system is powered off before inserting the module. Align the module with the carrier slot and push it firmly until the lock/unlock lever clicks into place. Then, connect your field wiring to the removable terminal block. Because each contact is isolated, you can mix AC and DC loads on different channels without interference.
For AC loads, connect the live wire to the output contact and the neutral to the load. For DC loads, observe polarity according to your device requirements. The module does not include internal snubber circuits or fuses, so we recommend adding external protection (e.g., RC snubbers for inductive AC loads or freewheeling diodes for DC inductive loads) to extend contact life and reduce EMI.
After wiring, power on the system and monitor the LEDs. If an output does not respond as expected, verify the CPU logic state, check the external power supply, and inspect the wiring connections. Remember that the load must be powered from an external source, because the backplane supplies only the module's internal logic power.
Each order of the IC200MDL940 includes:
One GE Fanuc IC200MDL940 16-point relay output module
Removable terminal block (pre-attached)
Lock/unlock lever (integrated)
Anti-static protective packaging
Note: External snubbers, fuses, and wiring accessories are sold separately.
We ship globally via FedEx, UPS, and DHL with real-time tracking. All packages are ESD-safe and cushioned for transit. Orders are processed within 24–48 hours, and expedited shipping options are available upon request.
1. Can I mix AC and DC loads on the same IC200MDL940 module?
Yes. Because each output contact is individually isolated, you can wire different voltage sources (AC or DC) to separate channels without cross-interference.
2. Does this module include internal fuse protection?
No. The GE Fanuc IC200MDL940 does not come with internal fuses or snubber circuits. You should add external protection devices as needed for your specific loads.
3. What is the switching frequency limit for inductive loads?
The maximum switching frequency is 20 cycles per minute when driving inductive loads. Exceeding this rate may shorten relay contact life.
4. How do I know if an output channel is active?
Each channel has a dedicated LED indicator on the front panel. When the CPU logic bit is set to 1, the corresponding LED turns on, and the contact closes.
5. Can I hot-swap the IC200MDL940 module?
No. The VersaMax system does not support hot-swapping for relay output modules. Always power down the carrier before inserting or removing the IC200MDL940.
