The GE Fanuc Emerson IC695PNS001 serves as a high-performance Profinet scanner module within the PACSystems RX3i product family. This module bridges remote I/O racks to a Profinet I/O network, supporting both Series 90-30 and RX3i modules. Engineers choose the IC695PNS001 when they need seamless communication between Profinet devices and their control system. Additionally, this scanner handles data exchange with HMIs, SCADA systems, and other automation components. Its compact single-slot design fits universally into any RX3i backplane. Furthermore, the Emerson IC695PNS001 offers advanced networking features that simplify system integration and reduce downtime.
The GE Fanuc IC695PNS001 delivers robust technical capabilities for modern industrial networks. It features four switched Ethernet ports, each supporting 10/100/1000 Mbps transmission speeds. Two of these ports are standard RJ-45 connectors, while the other two are SFP cages for fiber optic media conversion. Consequently, this module adapts easily to various network media types. It supports linear, star, daisy-chain, and ring topologies, including redundant media configurations. For firmware maintenance, a micro USB port provides a straightforward upgrade path.
Power consumption for the IC695PNS001 is rated at 1.1 A at 5V DC and 1.2 A at 3.3V DC internally. Moreover, it requires Proficy Machine Edition software version 8.50 or later for configuration. The module operates within a temperature range of 0 to 60°C, and stores safely from -40 to 85°C. Its universal backplane support ensures compatibility across RX3i and Series 90-30 racks.
The Emerson IC695PNS001 excels in managing Profinet connections across distributed systems. It communicates with remote I/O devices residing on universal backplanes, sending I/O data to partner CPUs across the network. Additionally, it interfaces directly with HMI and SCADA components for comprehensive plant-wide visibility. Because it supports multiple topologies, the IC695PNS001 fits both simple and complex network architectures.
Furthermore, two SFP cages enable fiber optic connections for long-distance or electrically noisy environments. This flexibility reduces the need for additional media converters. The four switched ports also allow daisy-chaining, which minimizes cabling and switch costs. Therefore, system designers gain significant layout freedom when using this scanner module.
One standout feature of the GE Fanuc IC695PNS001 is its simplified configuration method. Device names, IP addresses, and other parameters can be saved to an SD card. Then, the same card transfers these settings to another scanner module. This approach eliminates dependency on software configuration tools. Moreover, it significantly decreases maintenance time during module replacements. For plant engineers, this means faster recovery from failures and less reliance on specialized software knowledge.

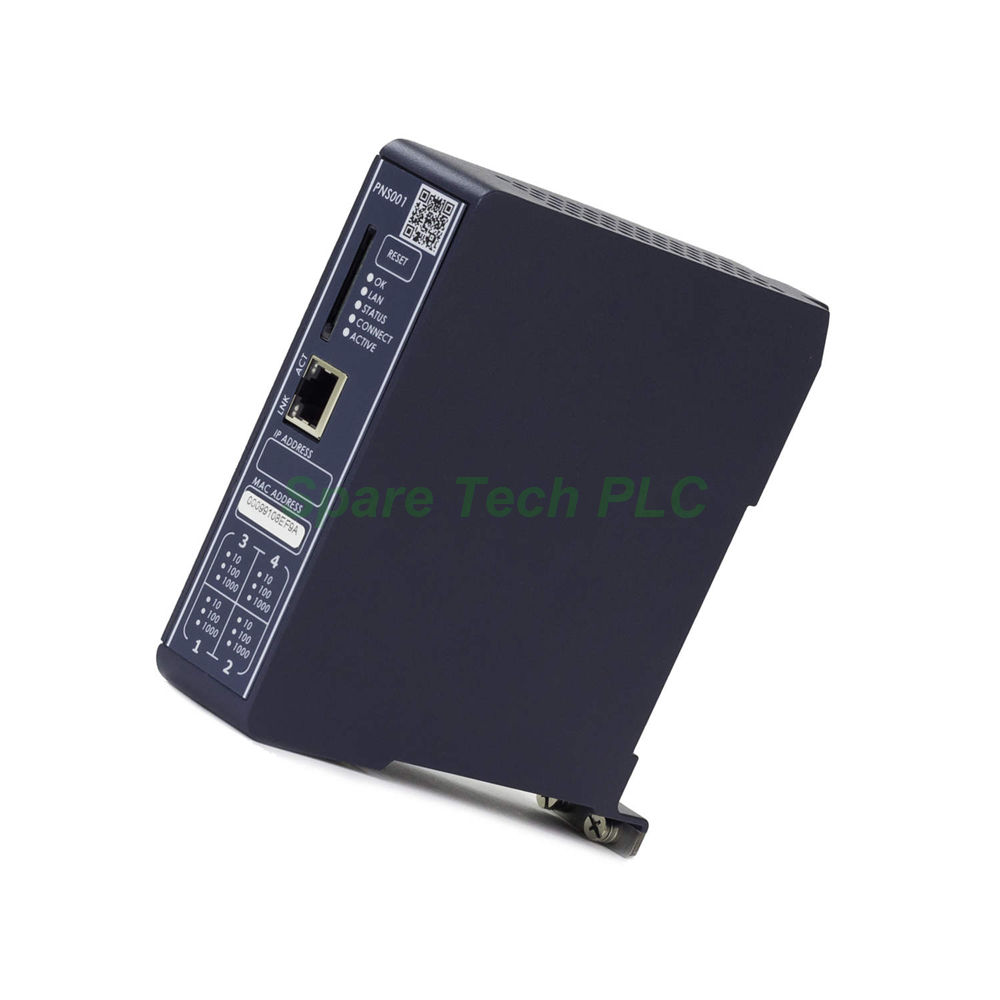

The front panel of the IC695PNS001 carries a comprehensive set of LED indicators. These include an OK LED, LAN LED, STATUS LED, CONN LED, individual PORT LEDs, ACTIVE LED, and USB LED. Together, they provide a complete overview of the module's operational state. For instance, the PORT LEDs show activity on each Ethernet port. The OK LED confirms normal operation, while the STATUS and CONN LEDs indicate network health. Consequently, troubleshooting becomes quicker and more intuitive.
Installing the Emerson IC695PNS001 follows standard RX3i procedures. First, ensure the rack power is off before inserting the module. Then, align the module with the backplane slot and push firmly until it seats correctly. Next, connect Ethernet cables to the RJ-45 ports or install SFP modules for fiber connections. After power-up, verify the OK LED illuminates green. Finally, configure the module using Proficy Machine Edition or transfer settings via SD card. Proper grounding and cable management help maintain signal integrity and prevent communication errors.
One GE Fanuc IC695PNS001 Profinet scanner module
One standard slot filler cover
Product identification label
Quick installation guide
Shipping will be via FedEx, UPS, or DHL.
1. What Profinet topology options does the IC695PNS001 support?
The IC695PNS001 supports linear, star, daisy-chain, and ring topologies, including redundant media configurations for high availability.
2. How many Ethernet ports are available on the GE Fanuc IC695PNS001?
This module includes four switched Ethernet ports, with two RJ-45 ports and two SFP cages for fiber optic media.
3. Can I update firmware on the IC695PNS001 without a software tool?
Yes, the Emerson IC695PNS001 has a micro USB port specifically for firmware upgrades, requiring only a USB cable and the firmware file.
4. Does the IC695PNS001 support Series 90-30 backplanes?
Absolutely. The GE Fanuc IC695PNS001 offers universal backplane support, working with both Series 90-30 and RX3i racks.
5. What software version is required to configure the IC695PNS001?
Proficy Machine Edition version 8.50 or later is required for configuration and setup of the IC695PNS001 scanner module.
| Brand Name | |
| Model No. | IC695PNS001 |
| Product Type | Profinet Scanner Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
