GE Fanuc IC695EDS001 DNP3 Slave Module RX3i

IC695EDS001 GE Fanuc DNP3 Outstation Module

Product Introduction

The GE Fanuc Emerson IC695EDS001 is a dedicated DNP3 outstation module designed for the PACSystems RX3i platform. This module allows an RX3i system to operate as a slave device on DNP3 networks, communicating with up to eight DNP3 masters. It supports four DNP3 data object types, including digital inputs, digital outputs, analog outputs, and time settings. Engineers select the IC695EDS001 when they need reliable SCADA integration over Ethernet. Furthermore, this module handles large volumes of data, supporting 12,072 points and 20,000 events.

Technical Specifications of the IC695EDS001

The GE Fanuc IC695EDS001 offers robust networking capabilities for utility and process automation. It features two RJ45 Ethernet ports that support 10/100 Mbps transmission speeds. These ports operate as an embedded switch, automatically sensing direct connections to 10BaseT or 100BaseTX networks. Supported topologies include line, star, and daisy-chain configurations. Additionally, the module provides one RS232 station manager port via a 9-pin D-shell connector for firmware upgrades and network management.

Each IC695EDS001 module uses a single IP address and a single MAC address. It supports Ethernet protocols including LLA and TCP/IP. A recessed restart button allows resetting the Ethernet firmware without power-cycling the entire module. This feature significantly reduces downtime during network troubleshooting. Furthermore, the module supports unsolicited data exchanges with DNP3 masters, enabling event-driven communication.

Data Capacity and DNP3 Object Support

The Emerson IC695EDS001 manages substantial data volumes efficiently. It supports up to 12,072 DNP3 points and 20,000 events per module. The module handles four primary DNP3 data object types: digital input (DI), digital input with time (DI w/time), digital output (DO), digital output with time (DO w/time), CROB (control relay output block), analog output values, time setting, and class polls. This comprehensive object support ensures compatibility with most SCADA master stations.

Moreover, the IC695EDS001 communicates with up to eight DNP3 masters simultaneously. A single RX3i CPU supports up to 32 DNP3 masters across multiple modules. Each RX3i rack accommodates up to four GE Fanuc IC695EDS001 modules, depending on available slots and power budget.

Power Requirements and Compatibility

Power consumption for the IC695EDS001 is rated at 840 mA at 3.3 VDC and 614 mA at 5 VDC. This module supports removal and insertion under power (RIUP), allowing replacement without shutting down the system. It installs in any empty slot of an RX3i main rack.

Compatible CPUs include CPU320, CPU315, CPE310, CPE305, CRU320, CPU310, CMU310, and NIU001, each with specific firmware release requirements. Proficy Machine Edition Logic Developer version 8.5 SIM 7 or later is required for configuration.

Firmware Upgrade and Maintenance

Firmware updates for the GE Fanuc IC695EDS001 can be performed through two methods. If the host CPU includes a serial port, the Windloader utility provides a straightforward upgrade path. Alternatively, a web-based software tool handles upgrades when the host CPU lacks a serial port. The station manager port also serves as a management interface, giving operators visibility into module and network status.

Installation and Integration Guidelines

Installing the Emerson IC695EDS001 is straightforward. First, power down the rack or ensure RIUP compatibility. Then, insert the module into any available RX3i slot, securing it with the retaining clips. Next, connect Ethernet cables to the RJ45 ports for DNP3 communication. Optionally, connect the RS232 port for station management. After power-up, configure the IP address and DNP3 parameters using Proficy Machine Edition. Finally, verify communication with DNP3 masters using the module's LED indicators.

Packaging List

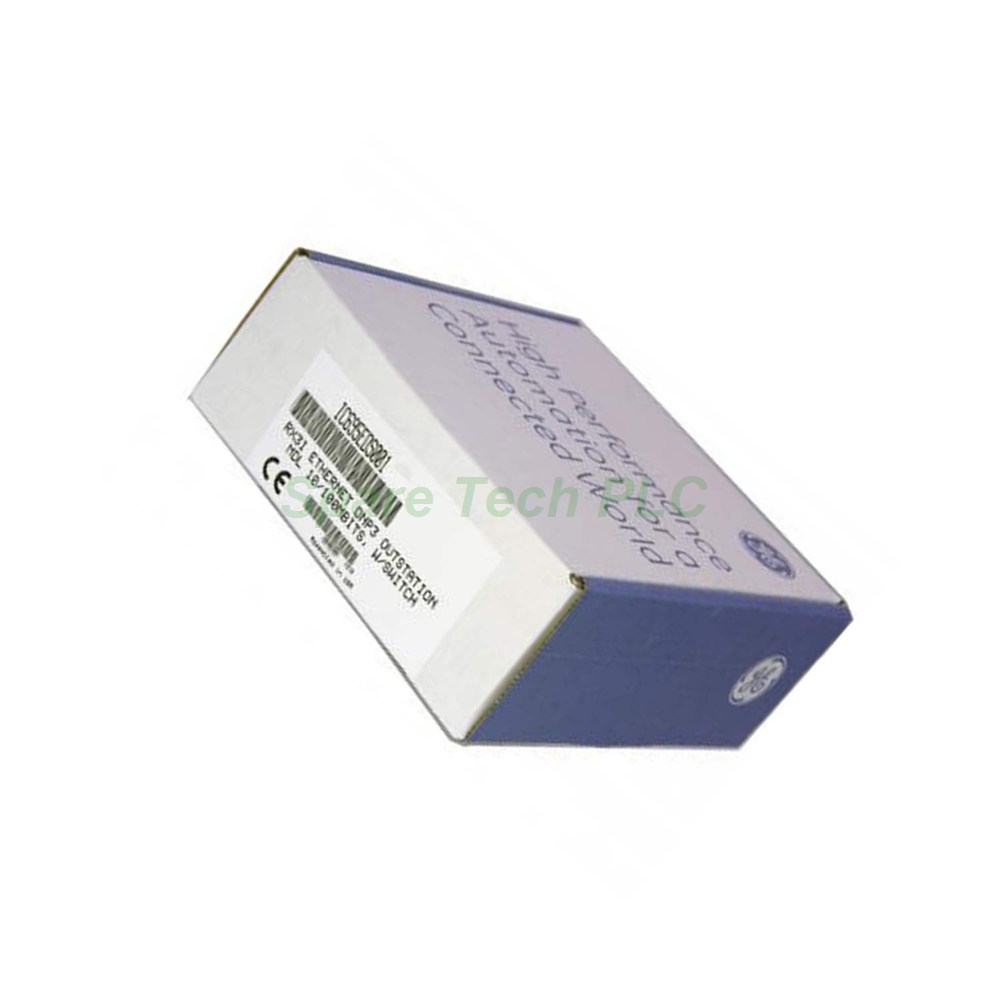

• One GE Fanuc IC695EDS001 DNP3 outstation module

• One standard slot filler cover

• Product identification label

• Quick start guide

Shipping will be via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

1. How many DNP3 masters can the IC695EDS001 communicate with?
The IC695EDS001 supports communication with up to eight DNP3 masters simultaneously.

2. What data capacity does the GE Fanuc IC695EDS001 offer?
This module supports up to 12,072 DNP3 data points and 20,000 events per module.

3. How many IC695EDS001 modules can be installed in one RX3i rack?
Up to four Emerson IC695EDS001 modules can be installed in a single RX3i rack, depending on slot availability and power.

4. What firmware upgrade methods are available for the IC695EDS001?
Firmware can be upgraded using the Windloader utility (if the CPU has a serial port) or via a web-based software tool.

5. Does the IC695EDS001 support unsolicited DNP3 messaging?
Yes. The GE Fanuc IC695EDS001 supports unsolicited data exchanges with DNP3 masters for event-driven reporting.
