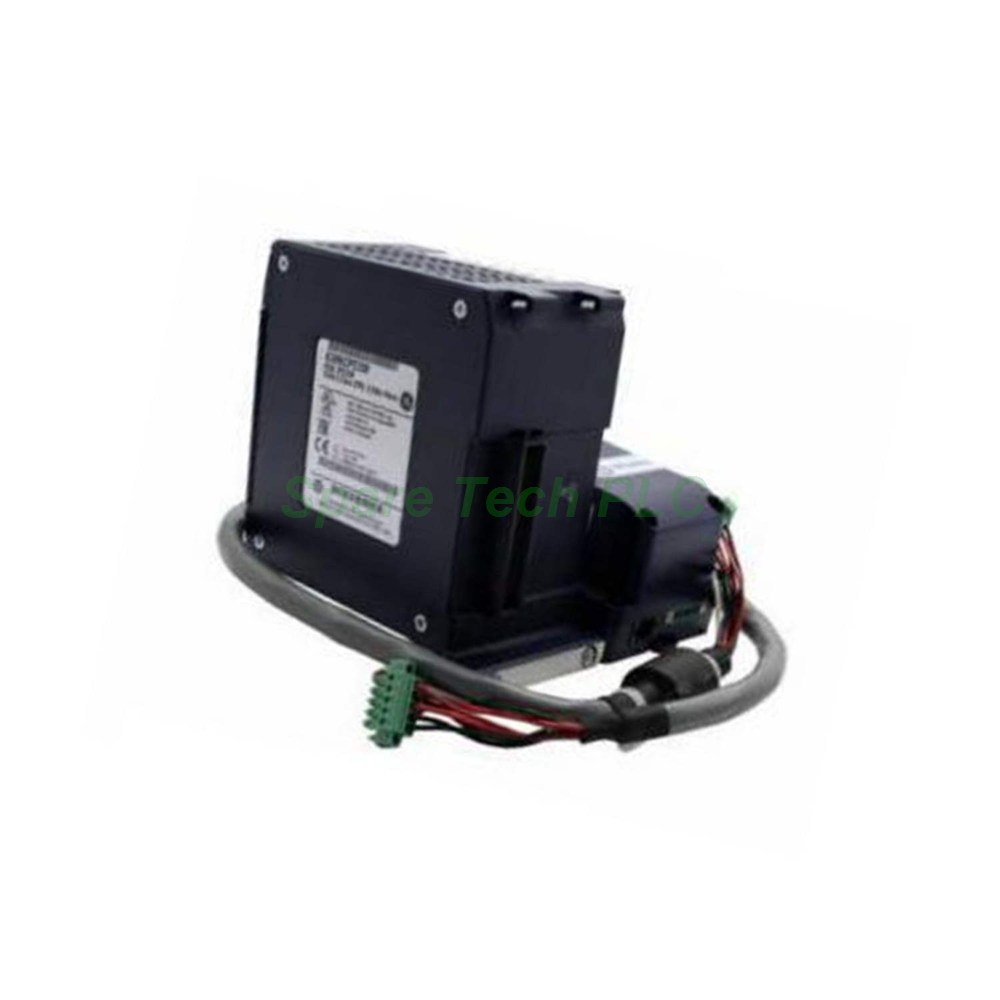

The GE Fanuc IC695CPK330 is a powerful processor module for the PACSystems RX3i platform. It delivers a 1 GHz CPU speed, 64 MB of RAM, and 64 MB of non-volatile user memory. This controller supports high-speed I/O communication and HART pass-through for advanced process automation. Engineers choose the IC695CPK330 when they need scalable performance, redundant configurations, and versatile networking. Furthermore, this CPU includes an energy pack that protects user programs during unexpected power interruptions.
The GE Fanuc IC695CPK330 offers exceptional processing power for demanding control applications. Its 1 GHz microprocessor executes logic quickly, while the 64 MB RAM handles complex programs and large data tables. Additionally, the 64 MB non-volatile memory retains the user program and critical data without battery backup. This CPU occupies two slots in the RX3i rack, supporting up to eight local racks per system.
For storage and programming flexibility, the IC695CPK330 includes one USB-A 2.0 port. This port allows program downloads from removable storage devices or even smartphones. A CFast card slot provides very high-speed CompactFlash storage for additional data logging or application files. The processor supports redundant hot-standby configurations, ensuring high availability for critical processes.
The IC695CPK330 features three Ethernet ports, each supporting 10/100/1000 Mbps transmission rates. One port functions as a standard Ethernet interface, while two ports operate as an embedded switch with line, ring, and star topology support. This built-in switch reduces the need for external network hardware and simplifies cabling.
Communication protocol support is comprehensive. The GE Fanuc IC695CPK330 handles SRTP Client/Server, Modbus TCP/IP, OPC-UA Server, EGD, and PROFINET. It also supports DNP3 outstation, HART SNP, IEC104, IEC61850 client, and additional protocols for utility and process automation. I/O protocols including Modbus RTU, Profibus, DeviceNet, Genius, and Reflective Memory are also available. Consequently, this processor integrates seamlessly with diverse field devices and control networks.
A distinctive feature of the GE Fanuc IC695CPK330 is its integrated energy pack. During a power failure, this energy pack provides sufficient time to write critical data from volatile memory to non-volatile storage. This process prevents unwanted erasure of the user program and preserves important process values. Therefore, system recovery after power restoration is faster and more reliable. The energy pack capability significantly enhances data integrity in unstable power environments.
The IC695CPK330 is programmed using GE Proficy Machine Edition or Logic Developer software, version 8.6 SIM8 or later. It supports multiple programming languages, including ladder logic, structured text, and function block diagram. This flexibility accommodates different programmer preferences and application requirements. Additionally, the USB interface enables convenient field updates without requiring a network connection. The module's fast processing speed is reportedly twice as fast as the previous IC695CPK320 model.
Performance metrics for the GE Fanuc IC695CPK330 are impressive. The 1 GHz clock speed, combined with 64 MB of RAM, handles large control programs with ease. The maximum number of local racks supported is eight, providing substantial I/O capacity. Communication options are extensive, covering both legacy and modern industrial protocols. This makes the IC695CPK330 suitable for hybrid systems combining discrete and process control.
Installing the IC695CPK330 requires two adjacent slots in the RX3i rack. First, ensure the rack power is off. Then, insert the module firmly into the slots, securing the retaining clips. Connect the Ethernet cables to the ports, configuring the embedded switch as needed. For redundant configurations, pair two identical CPUs with appropriate synchronization cables. After power-up, use Proficy Machine Edition to download the application program. Finally, verify proper operation through the CPU status LEDs.
One GE Fanuc IC695CPK330 processor module (occupies 2 slots)
One integrated energy pack (pre-installed)
Product identification label
Quick start reference card
Shipping will be via FedEx, UPS, or DHL.
1. How much memory does the IC695CPK330 provide?
The IC695CPK330 includes 64 MB of RAM and 64 MB of non-volatile user memory for program and data storage.
2. What is the processing speed of the GE Fanuc IC695CPK330?
This processor operates at 1 GHz, delivering high-speed execution for demanding automation tasks.
3. What communication protocols does the IC695CPK330 support?
The GE Fanuc IC695CPK330 supports SRTP, Modbus TCP/IP, OPC-UA Server, EGD, PROFINET, DNP3, HART, IEC104, IEC61850, and many more.
4. What is the purpose of the energy pack on the IC695CPK330?
The energy pack preserves user program and critical data during power failures by writing volatile content to non-volatile memory.
5. How many racks does the IC695CPK330 support in a system?
The GE Fanuc IC695CPK330 supports up to eight local racks per system, providing substantial I/O expansion capacity.
| Brand Name | |
| Model No. | IC695CPK330 |
| Product Type | CPU Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
The GE Fanuc Emerson IC695EDS001 is a DNP3 Slave/Outstation module for the PACSystems RX3i platform. It provides two Ethernet ports for DNP3 communication and supports up to 12,072 data points and 20,000 events. This module also includes an RS232 station manager port and interfaces with up to eight DNP3 masters.
The GE Fanuc Emerson IC695MDL765 is a 16-channel smart discrete output module for the PACSystems RX3i platform. It operates at 24 or 125 VDC, delivers 2A per point, and includes comprehensive diagnostics like overload, no-load, and failed switch detection. This module also supports output pulse testing and hold-to-last-state functions.
The GE Fanuc IC697PWR722 is a 90W power supply module designed for the Series 90-70 programmable controller platform. It accepts 24 VDC input (21–32 VDC range) and delivers regulated 5V, 12V, and -12V outputs. This module supports dual-rack configurations and includes overcurrent protection for reliable system operation.

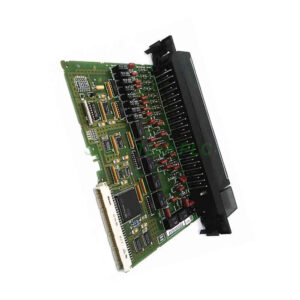

The GE Fanuc IC697MDL940 is a 16-channel relay output module for the Series 90-70 PLC platform. It combines eight individually isolated Form C outputs with eight Form A outputs arranged in two groups of four. This module handles AC loads up to 265 VAC and DC loads up to 125 VDC, with 2A capacity per point.

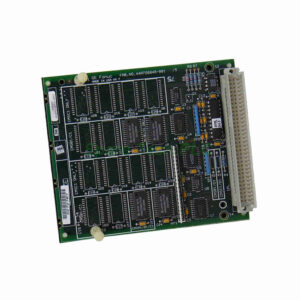

The GE Fanuc IC697MEM715 is a CMOS expansion memory module for the Series 90-70 PLC system. It supports both data and program storage, functions as a daughterboard, and includes a long-life lithium battery for reliable memory retention during power outages.
