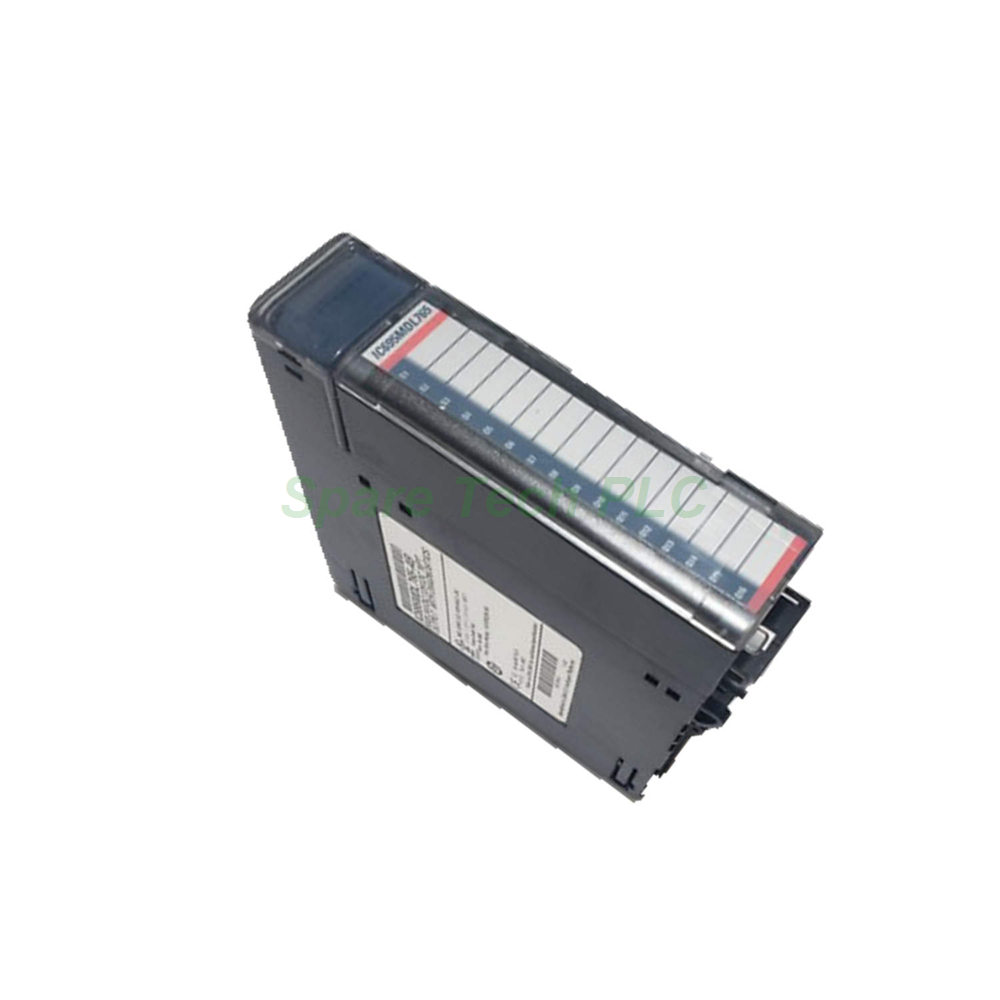

The GE Fanuc Emerson IC695MDL765 is a smart discrete output module designed for the PACSystems RX3i platform. It provides sixteen digital output channels, organized into two isolated groups of eight channels each. This module handles both 24 VDC and 125 VDC nominal voltages, making it versatile for various field devices. Engineers choose the IC695MDL765 when they need intelligent actuation for pilot lamps, solenoid valves, motor starters, and relay coils. Furthermore, its built-in diagnostics and output test capabilities significantly improve system reliability and simplify troubleshooting.
The GE Fanuc IC695MDL765 delivers robust performance across a wide voltage range. Each output channel supports an output voltage range of 18–30 VDC or 105–132 VDC. The nominal output voltages are 24 VDC and 125 VDC respectively. Per point, the output current reaches 2 A maximum. Additionally, each group handles 8 A, while the entire module supports up to 16 A total. For inductive loads, the switching frequency reaches 1 Hz, with specific derating for larger inductances.
Response time for both On and Off transitions is a fast 1 ms. Peak inrush current tolerance is 10 A for 10 ms without tripping the electronic short-circuit protection. Power consumption is rated at 540 mA at 5.1 VDC and 152 mA at 3.3 VDC. Furthermore, the module provides group-to-group isolation of 250 VAC or 1500 VAC for enhanced safety.
What distinguishes the Emerson IC695MDL765 is its intelligence. Each output channel includes multiple protection and diagnostic features. Over-temperature protection prevents thermal damage under excessive load. Failed switch detection identifies output device faults. Overload detection and shutdown protect both the module and connected loads. No-load detection alerts operators to open circuits or disconnected wiring.
Additionally, this smart module supports output pulse testing, which is essential for safety and counter applications. It also offers output hold-to-last-state or default value functions. In the event of a CPU error or stoppage, the IC695MDL765 maintains outputs in a predefined safe state. This capability is critical for process safety and equipment protection.
The GE Fanuc IC695MDL765 uses sourcing-type (positive logic) outputs. Each output switches the positive side of the power supply and supplies current to the load. The two isolated groups each reference a separate common return. This design allows mixing different voltage groups within the same module. Moreover, the isolation prevents ground loops and improves noise immunity in industrial environments.
The front panel of the IC695MDL765 carries field status LEDs labeled S1 and S2. These indicators show whether the 24 VDC or 125 VDC field power supply is available and above minimum levels. Additionally, they signal whether the terminal block is correctly seated and if any faults are present. The module also logs messages to the system fault table when a terminal block is removed or inserted. This feature greatly aids in maintenance and troubleshooting.
Installing the Emerson IC695MDL765 follows standard RX3i procedures. First, ensure all power sources are disconnected before handling. Then, insert the module into an available slot in the RX3i backplane. Secure the retaining clips to lock it in place. Next, wire field devices to the removable terminal block, observing correct polarity and group assignments. After wiring, plug the terminal block into the module. Finally, apply field power and verify the S1 and S2 LEDs confirm correct supply voltages.
One GE Fanuc IC695MDL765 smart discrete output module
One removable terminal block (pre-installed)
Product identification label
Installation quick guide
Shipping will be via FedEx, UPS, or DHL.
1. What output voltages does the IC695MDL765 support?
The IC695MDL765 supports two nominal voltage ranges: 24 VDC (18–30 VDC range) and 125 VDC (105–132 VDC range).
2. How many output channels are on the GE Fanuc IC695MDL765?
This module provides sixteen output channels, arranged in two isolated groups of eight channels each.
3. What diagnostic features are included with the IC695MDL765?
The Emerson IC695MDL765 includes over-temperature, failed switch detection, overload detection and shutdown, and no-load detection per channel.
4. Does the IC695MDL765 support output hold functions?
Yes. The GE Fanuc IC695MDL765 supports output hold-to-last-state or default value during CPU errors or stoppages.
5. What is the response time of the IC695MDL765 outputs?
Each output on the IC695MDL765 has a maximum response time of 1 ms for both On and Off transitions.
