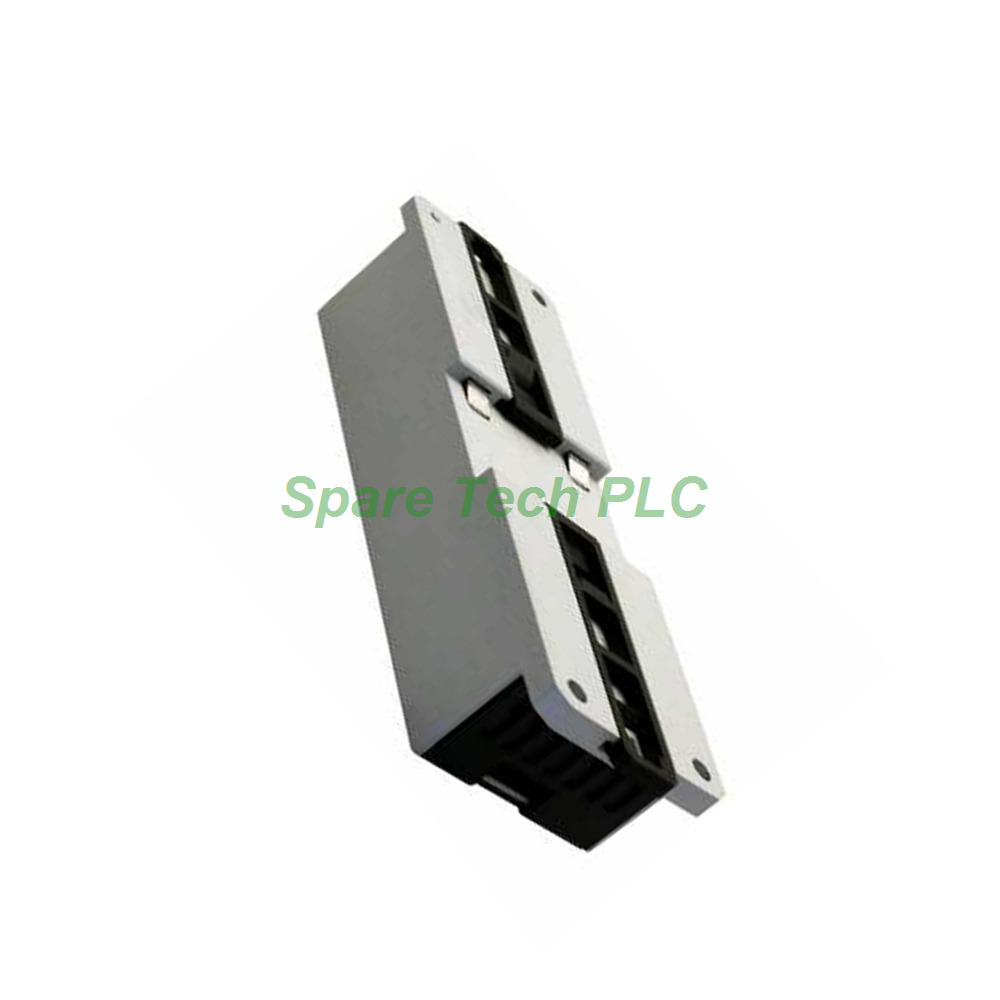

GE Fanuc IC695CEP001 CEP Carrier Module RX3i

IC695CEP001 GE RX3i PROFINET Carrier Component

Product Introduction

The IC695CEP001 is a CEP carrier module designed for the GE Fanuc RX3i PacSystem. This component serves as a communication interface between the RX3i system and PROFINET networks. It features two copper RJ-45 Ethernet ports with 10/100 Base-TX receptacles, providing reliable network connectivity. Additionally, the module includes a Micro-B USB port for convenient firmware upgrades. The IC695CEP001 supports PROFINET version 2.3 (Class A), ensuring compatibility with modern industrial Ethernet environments. You can configure and program this carrier using Proficy Machine Edition software, version 8.0 SIM 5 or later.

Power Specifications and Voltage Range

The IC695CEP001 operates across a wide voltage range of 19.2 to 30 Volts DC. At the nominal voltage of 24V DC, it consumes 5.25 Watts of power, drawing 0.22 Amperes. This efficient power profile makes it suitable for various industrial power supplies. The module's robust voltage tolerance protects against minor fluctuations in the power source, enhancing system reliability.

I/O Data Capacity and Station Configuration

The IC695CEP001 supports one I/O module per station. Each station handles a total of 1024 bytes of I/O data, split evenly between input and output: 512 bytes for input data and 512 bytes for output data. This capacity suits many distributed I/O applications. The carrier also features 32 input status bits and 32 output control bits, giving you additional diagnostic and control capabilities.

Ethernet and Communication Features

The two RJ-45 ports on the IC695CEP001 support 10/100 Base-TX communication speeds. These ports enable various network topologies, providing flexibility in system design. The carrier also supports advanced remote node module scanning and improved fault handling. These features simplify troubleshooting and reduce downtime. Furthermore, the PROFINET interface complies with version 2.3 (Class A), ensuring interoperability with other PROFINET-compliant devices.

Firmware Updates and USB Port

The Micro-B USB port on the IC695CEP001 serves as a dedicated interface for firmware updates. This USB 2.0-compliant port allows you to upgrade the module's firmware quickly and easily. By keeping the firmware current, you ensure optimal performance and access to the latest features. This update method eliminates the need for specialized programming hardware.

Physical Dimensions and Mounting

The IC695CEP001 has compact dimensions of 177.2 x 51 x 35 millimeters (7 x 2 x 1.3 inches). Its small footprint saves valuable panel space. The module's lightweight design simplifies installation and handling. The carrier mounts easily within the RX3i system enclosure.

Environmental Operating Conditions

The IC695CEP001 operates reliably within a temperature range of 0°C to 60°C (32°F to 140°F). This range covers most industrial environments, from climate-controlled control rooms to factory floors. The module's robust construction ensures stable performance even in challenging conditions.

Software Compatibility

To configure and program the IC695CEP001, you need Proficy Machine Edition software version 8.0 SIM 5 or later. This software provides full programming and configuration options. It also supports the module's advanced features, including network topology configuration and diagnostic monitoring. The software interface simplifies system setup and maintenance.

Typical Applications

The IC695CEP001 suits various distributed I/O applications. For example, it works well in manufacturing lines, packaging machines, and material handling systems. Additionally, it fits process control applications where PROFINET connectivity is required. By providing a compact and efficient PROFINET interface, this carrier helps modernize existing RX3i installations.

Packaging List

• 1 × IC695CEP001 CEP Carrier Module

• 1 × Quick start guide

• 1 × Anti-static protective bag

Shipping Information

We ship all orders via FedEx, UPS, or DHL with full tracking. Standard delivery typically takes 3 to 7 business days. Expedited shipping options are available upon request.

Frequently Asked Questions (FAQ)

1. What is the maximum I/O data capacity per station for the IC695CEP001?
Each station supports a total of 1024 bytes of I/O data, with 512 bytes allocated for input and 512 bytes for output.

2. Which software version do I need to configure the IC695CEP001?
You need Proficy Machine Edition version 8.0 SIM 5 or later to configure and program this carrier module.

3. Can I update the firmware on the IC695CEP001 without specialized tools?
Yes. The Micro-B USB port allows you to perform firmware updates easily using a standard USB connection.

4. How many I/O modules can I connect to one IC695CEP001 station?
This carrier supports one I/O module per station, making it suitable for compact distributed I/O applications.

5. What network topologies does the IC695CEP001 support?
The two Ethernet ports support various network topologies, including star and linear configurations, giving you flexible deployment options.
