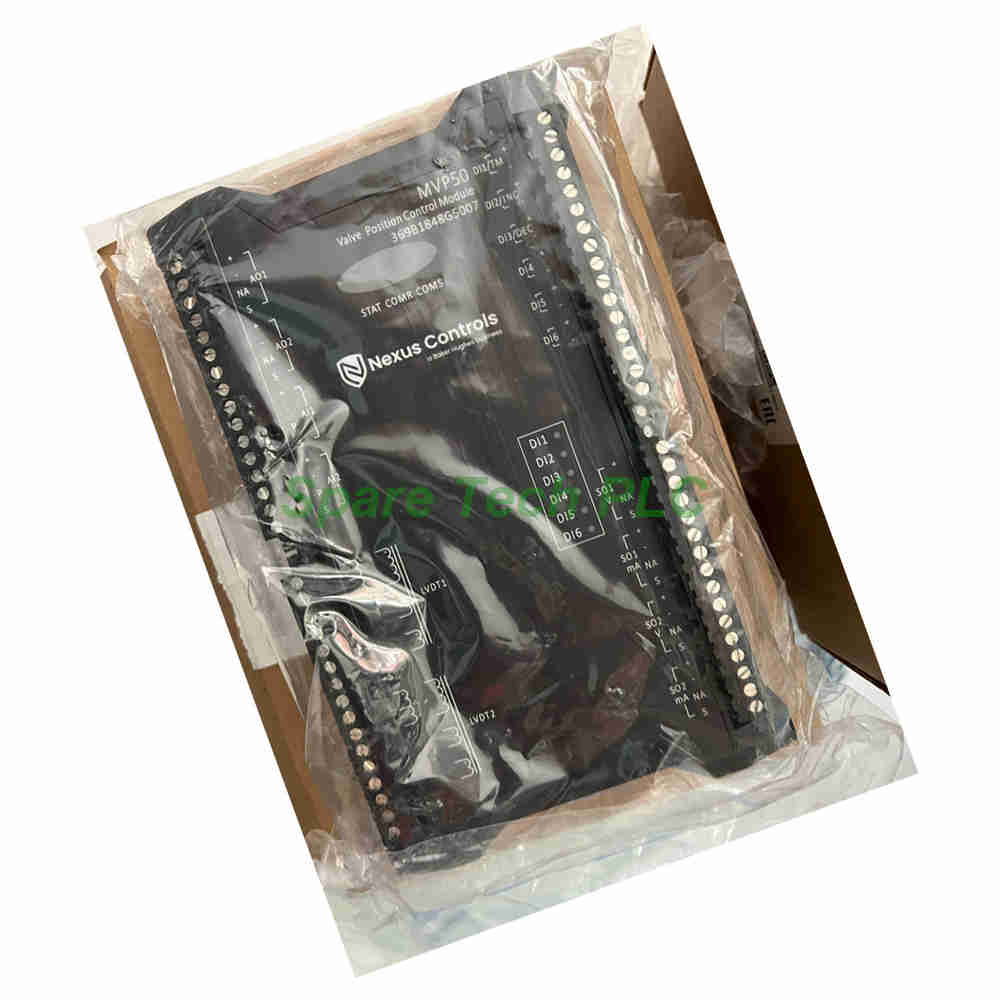

GE 369B1848G5007 Valve Position Control Module

GE Nexus MVP50 369B1848G5007 Valve Position Control Module Product Introduction

The GE Nexus MVP50 369B1848G5007 valve position control module delivers sophisticated motion control for industrial valve actuators. This advanced module combines precision measurement, powerful processing, and flexible I/O to handle the most demanding position control applications. Its comprehensive feature set makes it an ideal choice for turbine bypass valves, steam control valves, and other critical process actuators.

Specifically, the 369B1848G5007 integrates dual LVDT inputs, analog inputs, servo outputs, and digital inputs into a single compact package. This integration eliminates the need for multiple separate modules, reducing cabinet space and simplifying system design. Moreover, the module runs on a robust real-time operating system, ensuring deterministic response times for safety-critical control loops.

Technical Specifications – LVDT Inputs

The GE Nexus MVP50 provides two LVDT input channels supporting both 3-wire and 6-wire configurations. Each channel includes built-in broken-wire detection, alerting operators immediately to sensor failures. The excitation frequency and amplitude are fully adjustable, allowing compatibility with a wide range of LVDT sensors from different manufacturers.

Technical Specifications – Analog and Servo Outputs

Two analog input channels accept 0-20mA, 0-5V, or ±10V signals, accommodating various process transmitters. For positioning commands, two servo output channels deliver ±40mA or ±10V signals with integrated channel fault detection. Additionally, two auxiliary analog outputs provide 0-5V signals for monitoring or secondary control purposes.

Six digital inputs round out the I/O complement, enabling limit switch monitoring, interlock signals, or operator commands. All inputs include signal filtering with adjustable time constants from 3ms to 50ms, with a default setting of 24ms for optimal noise rejection.

Technical Specifications – Processor and Memory

At the heart of the 369B1848G5007 lies an Intel 1.66 GHz 64-bit embedded processor. This powerful CPU handles complex PID algorithms and valve characterization with ease. The module includes 1GB of DDR2 667/800 MHz memory and 2GB of onboard non-volatile flash storage for program retention.

The GE Nexus MVP50 delivers exceptional computational speed, achieving control loop cycle times as fast as 40ms. It supports up to 999 control configuration pages, providing ample capacity for even the most complex valve control strategies.

Technical Specifications – Communication and Networking

The 369B1848G5007 excels in network connectivity. It features redundant 1Gbps UDH control network ports (Ethernet) and redundant 1Gbps I/O network ports, ensuring uninterrupted communication even during cable failures. A dedicated 1Gbps dual-redundant tracking network enables seamless module-to-module synchronization.

For I/O expansion, four intelligent high-speed redundant serial I/O buses operate at 1Mbps. Each bus accommodates up to 12 Nexus I/O modules, giving the GE Nexus MVP50 capacity for up to 48 total I/O modules. The module also supports NTP network clock synchronization with ±1ms accuracy and SOE precision of 1ms.

Technical Specifications – Power and Isolation

Dual redundant 24V DC power inputs ensure continuous operation. The 369B1848G5007 consumes 3.7W under typical conditions and up to 10.7W at maximum load. Isolation ratings include 500VAC between channels and ground, plus 1500VAC between channels and the system backplane.

Operating System and Environmental Ratings

The module runs the QNX real-time multitasking operating system, known for its reliability and deterministic behavior. Operating temperature ranges from 0°C to 60°C, suitable for most industrial environments. The entire assembly carries CE certification as part of the Nexus system.

LED Status Indicators

Front-panel LEDs provide clear visual status information. These indicators display module operating status, communication health, and fault alarms. Channel input status LEDs also show real-time signal conditions, simplifying troubleshooting during commissioning and maintenance.

Installation Guidelines

Installing the 369B1848G5007 requires careful planning. Begin by mounting the module in a standard Nexus backplane slot. Next, connect both 24V DC power sources to the redundant terminals, observing correct polarity. For LVDT connections, select 3-wire or 6-wire mode based on your sensor type and configure the excitation frequency and amplitude accordingly.

Wire servo outputs to the valve actuator driver inputs, ensuring proper polarity for the desired direction of travel. Connect analog inputs to process transmitters and digital inputs to switches or relays. Then, establish network connections using shielded Ethernet cables for the UDH control and I/O networks. Finally, apply power and verify that all status LEDs indicate normal operation.

Packaging List

Your package for the GE Nexus MVP50 369B1848G5007 includes:

• One GE 369B1848G5007 Valve Position Control Module

• One installation and configuration manual

• One set of terminal connectors and mounting hardware

Shipping and Delivery

We ship all orders via FedEx, UPS, or DHL. Standard delivery takes 3-7 business days, with express options available. Each package includes anti-static protection and adequate cushioning.

Frequently Asked Questions (FAQ)

Q1: What LVDT sensors are compatible with this module?
The 369B1848G5007 supports most 3-wire and 6-wire LVDTs. You can adjust the excitation frequency and amplitude to match your specific sensor specifications.

Q2: How does the redundant network improve reliability?
The dual Ethernet ports on the GE Nexus MVP50 allow two independent network paths. If one cable or switch fails, communication continues seamlessly through the remaining path.

Q3: What is the maximum number of I/O modules I can connect?
Each of the four serial buses supports 12 modules. Therefore, the 369B1848G5007 can manage up to 48 Nexus I/O modules in total.

Q4: Can I adjust the signal filtering time constant?
Yes, the filtering time constant is adjustable from 3ms to 50ms through firmware. The default setting of 24ms works well for most applications.

Q5: What operating system does the module use?
The GE Nexus MVP50 runs on the QNX real-time multitasking operating system, providing reliable and predictable performance for critical control tasks.
