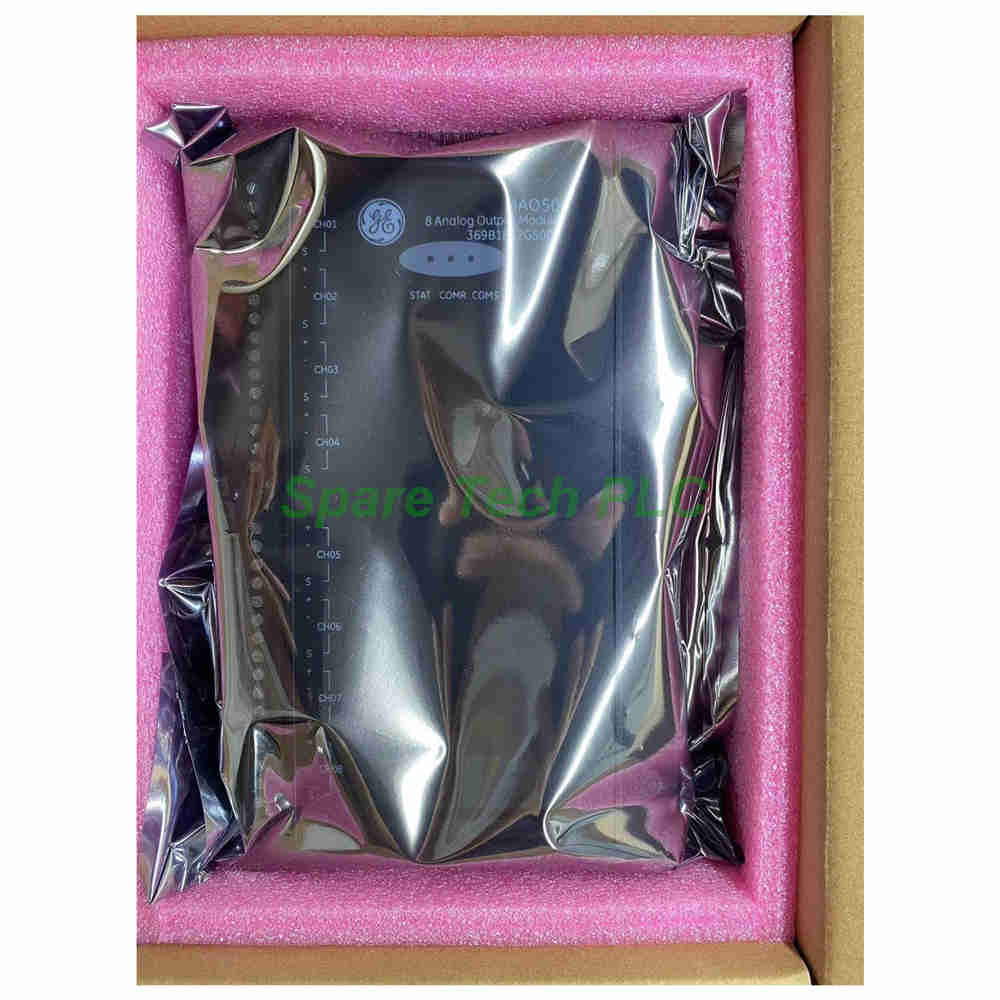

GE 369B1842G5005 Analog Output Module – 8-Channel

GE Nexus MAO50 369B1842G5005 Analog Output Module Product Introduction

The GE Nexus MAO50 369B1842G5005 analog output module provides precise signal conversion for demanding process control applications. This module translates digital commands from the main controller into accurate analog signals that drive actuators, valves, and other field devices. Its eight independent output channels offer exceptional flexibility for multi-loop control systems.

Specifically, the 369B1842G5005 delivers both current and voltage outputs, accommodating a wide range of industrial instruments. You can configure each channel individually for 0-20mA, 4-20mA, 0-5V, or 1-5V signals. Moreover, the module integrates seamlessly into the GE Nexus backplane, making it an ideal choice for new installations or system upgrades.

Technical Specifications

The GE Nexus MAO50 features eight analog output channels with a 12-bit digital-to-analog converter per channel. This dedicated DAC design ensures independent signal generation without cross-channel interference. The output accuracy reaches ±0.1% of full scale, providing reliable control for precision processes.

For current outputs, the module drives loads up to 1000Ω, while voltage outputs operate with a minimum load of 500kΩ. The isolation architecture includes 250VAC between channels, 500VAC between channel and ground, and 1500VAC between channel and system. Additionally, the common-mode rejection ratio exceeds 120dB, effectively suppressing environmental noise.

The 369B1842G5005 communicates via a redundant high-speed intelligent serial bus operating at 1Mbps. A DB-9 female connector handles the communication link, while a removable single-row European terminal block simplifies field wiring. Each terminal accepts 2.5mm² wires and supports double-wire connections for daisy-chaining.

Power Supply and Installation

Power delivery uses dual 24V DC inputs with ±10% tolerance, configured in a 1:1 redundant arrangement. This design ensures uninterrupted operation even if one supply source fails. The GE Nexus MAO50 consumes less than 6.5W under normal operating conditions.

Mechanical installation requires only screw mounting onto a standard 35mm DIN rail. The module dimensions measure 209mm in height, 129.5mm in width, and 51mm in depth. This compact form factor saves valuable cabinet space while allowing adequate airflow around the unit.

Processor and Compliance Standards

A high-performance 32-bit embedded processor powers the 369B1842G5005, handling all signal processing and communication tasks efficiently. This processor ensures fast response times and stable output updates, critical for time-sensitive control loops.

The module complies with multiple international standards, including CFR 47 FCC Part 15 (2009) and ANSI C63.4-2003 for electromagnetic emissions. For immunity, it meets EN 61326-1:2006 and CISPR 11:2007 requirements. Additionally, the 369B1842G5005 passes IEC 61000-4-2/3/4/5/6/8/11 tests for electrostatic discharge, radiated fields, fast transients, surges, conducted interference, power frequency magnetic fields, and voltage dips. The entire system carries CE certification.

Environmental Ratings

The GE Nexus MAO50 operates reliably across a temperature range of 0°C to 60°C. It maintains specified performance in humidity conditions from 10% to 90% non-condensing. For vibration resistance, the module withstands 10-500Hz sweeps with acceleration not exceeding 10m/s². Furthermore, the unit tolerates industrial environments where airborne particles larger than 0.5μm remain below 18,000 particles per liter.

LED Indicators

Status monitoring is straightforward through front-panel LEDs. These indicators show module operating status, communication activity, and fault alarms. Each LED provides quick visual feedback, enabling operators to identify issues without opening the cabinet or using diagnostic tools.

Installation Guidelines

Installing the 369B1842G5005 follows a simple procedure. First, secure the module onto the DIN rail using the integrated mounting clips. Next, connect both 24V DC power sources to the designated terminals, observing correct polarity. Then, wire each output channel to its corresponding field device using the removable terminal block. For current outputs, ensure the load resistance stays below 1000Ω. For voltage outputs, verify that the load impedance exceeds 500kΩ.

After completing the wiring, insert the terminal block into the module and tighten the screws. Connect the DB-9 communication cable to the main controller. Finally, apply power and verify that the status LED illuminates green, indicating normal operation.

Packaging List

Your package for the GE Nexus MAO50 369B1842G5005 includes:

• One GE 369B1842G5005 Analog Output Module

• One removable European terminal block (8-position)

• One quick-reference installation guide

• One set of mounting hardware

Shipping and Delivery

We dispatch all orders using FedEx, UPS, or DHL. Standard shipping typically delivers within 3-7 business days worldwide. Expedited services are available upon request. Every package includes appropriate anti-static and shock-absorbent materials.

Frequently Asked Questions (FAQ)

Q1: Can I mix current and voltage outputs on the same module?
Yes, the 369B1842G5005 allows independent configuration for each of its eight channels. You can set some channels for 4-20mA and others for 0-5V as your application requires.

Q2: What happens if one of the two power supplies fails?
The dual-input design with 1:1 redundancy ensures seamless operation. The GE Nexus MAO50 continues working without interruption, drawing full power from the remaining supply.

Q3: How do I know if the module is communicating properly?
Check the communication status LED. A steady green light indicates normal operation, while a flashing or red light suggests a bus error. Additionally, verify the DB-9 connection is secure.

Q4: Is the terminal block compatible with solid or stranded wires?
Both types are acceptable. The removable terminal accepts 2.5mm² wires, including solid conductors and stranded wires with ferrule ends. Double-wire connections are also supported.

Q5: Does this module require periodic calibration?
While the 369B1842G5005 maintains accuracy through its design, we recommend annual verification against a reference standard for critical applications. This practice ensures ongoing precision within the 0.1% specification.
