GE 369B1851G5002 Speed Protection Module MSP50

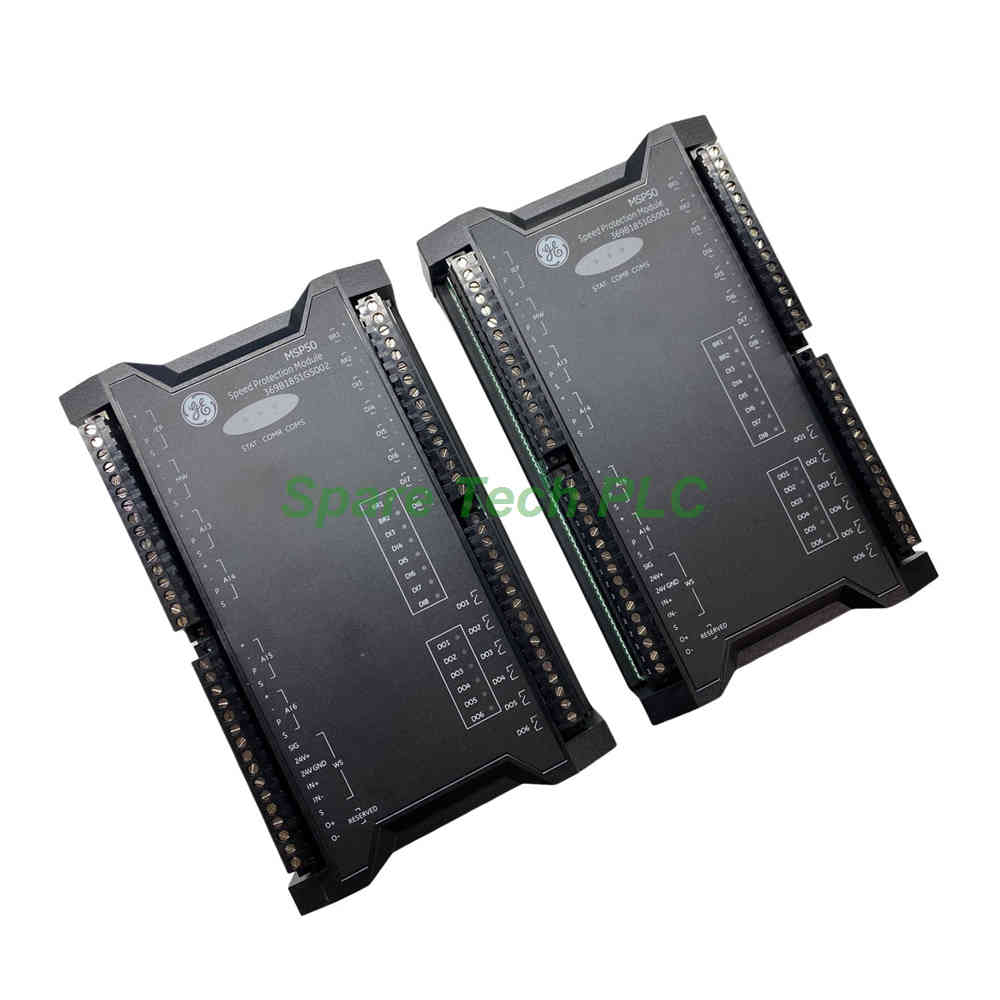

GE Nexus MSP50 369B1851G5002 Speed Measurement and Protection Module Product Introduction

The GE Nexus MSP50 369B1851G5002 speed measurement and protection module provides reliable overspeed detection for turbines, compressors, and other rotating equipment. This sophisticated module combines precision speed sensing with extensive I/O capabilities, making it a comprehensive solution for machinery protection systems. Its high-speed processor and redundant communication architecture ensure timely response to critical speed events.

Specifically, the 369B1851G5002 accepts signals from magnetic pickups, Hall-effect sensors, and eddy-current proximity probes. This wide sensor compatibility allows seamless integration with existing field instrumentation. Moreover, the module includes analog inputs for process variables, digital inputs for status monitoring, and digital outputs for alarm or trip actuation, all within a single compact unit.

Technical Specifications – Speed Measurement Channel

The primary speed channel on the GE Nexus MSP50 accepts frequencies from 1Hz to 20000Hz with an impressive 0.01% resolution. This precision enables accurate speed tracking even at very low or extremely high rotational speeds. The input circuitry accommodates various sensor types, including magnetic variable reluctance sensors, Hall-effect devices, and eddy-current probes. Each sensor type benefits from optimized signal conditioning to ensure reliable triggering and noise rejection.

Technical Specifications – Analog Inputs

Six analog input channels provide versatile signal acquisition. Each channel accepts 0-20mA, 0-5V, or ±10V signals with 0.1% accuracy. These inputs connect to process transmitters for temperature, pressure, or vibration monitoring alongside speed measurements. The high accuracy ensures that critical process parameters receive the same precision treatment as the speed channel.

Technical Specifications – Digital Inputs and Outputs

Eight digital input channels include programmable filtering from 1ms to 50ms, effectively rejecting contact bounce and electrical noise. These inputs support Sequence of Events (SOE) recording with 1ms timestamp accuracy, essential for post-event analysis. For output actions, six digital output channels deliver 250V at 0.1A switching capability. These outputs also support SOE functionality, capturing exact actuation times for protective actions.

Technical Specifications – Processor and Memory

The 369B1851G5002 harnesses an Intel 1.66 GHz 64-bit embedded processor for exceptional computational power. This processor handles complex speed calculation algorithms, comparison logic, and trip determination with ease. The module includes 1GB of DDR2 667/800 MHz memory and 2GB of onboard non-volatile flash storage for program and data retention.

Control loop cycle times reach as fast as 40ms, ensuring rapid response to overspeed conditions. The GE Nexus MSP50 supports up to 999 control configuration pages, accommodating sophisticated protection strategies.

Technical Specifications – Communication and Networking

Redundant 1Gbps UDH control network ports and redundant 1Gbps I/O network ports provide robust communication paths. A dedicated 1Gbps dual-redundant tracking network enables precise module synchronization. For I/O expansion, four intelligent high-speed redundant serial I/O buses operate at 1Mbps, with each bus connecting up to 12 Nexus I/O modules. The 369B1851G5002 manages up to 48 total I/O modules.

The module supports NTP network clock synchronization with ±1ms accuracy, while SOE precision reaches 1ms. These timing capabilities are critical for correlating speed events with other system parameters.

Technical Specifications – Power and Isolation

Dual redundant 24V DC power inputs ensure continuous operation during power supply fluctuations or failures. The GE Nexus MSP50 consumes 1.76W under typical conditions and up to 10.2W at maximum load. Isolation ratings include 500VAC between channels and ground, plus 1500VAC between channels and the system backplane.

Operating System and Environmental Ratings

The module runs on the QNX real-time multitasking operating system, renowned for its reliability in safety-critical applications. Operating temperature ranges from 0°C to 60°C, suitable for most industrial environments. The entire assembly carries CE certification as part of the Nexus system.

Channel Status and LED Indicators

Front-panel LEDs provide clear visual status for module operation, communication health, and fault conditions. Channel input status LEDs indicate active signals on speed, analog, and digital inputs. These indicators simplify commissioning and troubleshooting, allowing technicians to verify signal presence without external tools.

Installation Guidelines

Install the 369B1851G5002 following standard Nexus backplane procedures. Begin by securing the module into an available slot. Connect both 24V DC power sources to the redundant terminals, ensuring correct polarity. For speed sensors, wire the magnetic, Hall-effect, or eddy-current probe to the designated speed input terminals.

Connect analog inputs to process transmitters using shielded cables to minimize noise. Wire digital inputs to switches or relay contacts, observing the polarity if using active sensors. Digital outputs connect to alarm annunciators, solenoid valves, or contactors for trip actions.

Configure the speed channel parameters, including sensor type, trigger level, and filtering, through the system configuration software. Set the digital input filtering time constants according to the expected signal characteristics. Finally, apply power and verify normal LED indications.

Packaging List

Your package for the GE Nexus MSP50 369B1851G5002 includes:

• One GE 369B1851G5002 Speed Measurement and Protection Module

• One installation and configuration guide

• One set of terminal connectors and mounting hardware

Shipping and Delivery

We ship all orders via FedEx, UPS, or DHL. Standard delivery takes 3-7 business days, with expedited options available upon request. Each package includes anti-static protection and adequate cushioning to prevent transit damage.

Frequently Asked Questions (FAQ)

Q1: What sensor types work with the speed input?
The 369B1851G5002 accepts magnetic variable reluctance sensors, Hall-effect sensors, and eddy-current proximity probes. Each type connects to the same input with appropriate configuration settings.

Q2: How accurate is the speed measurement?
The speed channel achieves 0.01% resolution across the entire 1-20000Hz range. This high resolution allows precise speed tracking for both low-speed and high-speed machinery.

Q3: What does SOE functionality provide?
Sequence of Events recording captures the exact timing of digital input changes and output actuations with 1ms precision. This data is invaluable for troubleshooting and post-incident analysis on the GE Nexus MSP50.

Q4: Can I use this module without the redundant Ethernet networks?
While the 369B1851G5002 supports non-redundant configurations, we strongly recommend using both redundant networks for critical protection applications to ensure uninterrupted communication.

Q5: What is the maximum number of I/O modules I can connect?
The four serial buses each support 12 modules, giving the GE Nexus MSP50 capacity for up to 48 Nexus I/O modules in total. This scalability accommodates large protection systems.
